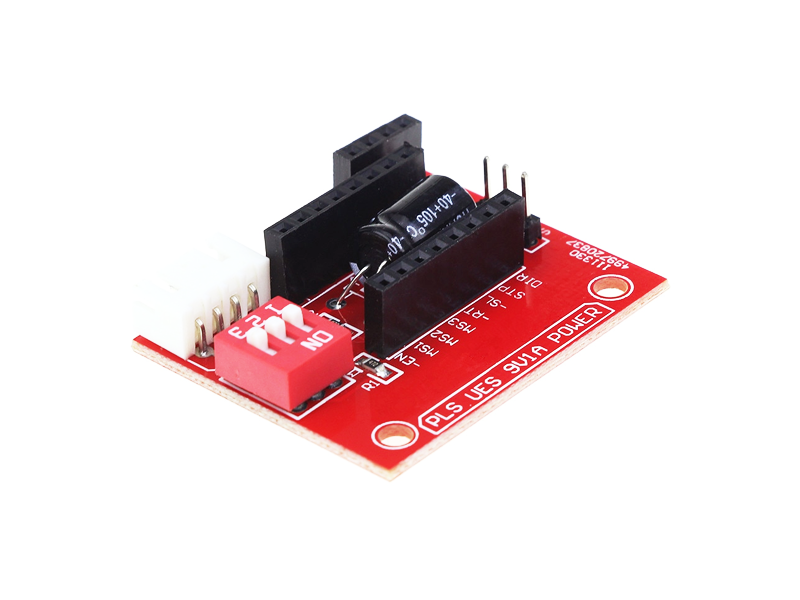

A4988 Stepper Motor Driver Expansion Board - Image 1

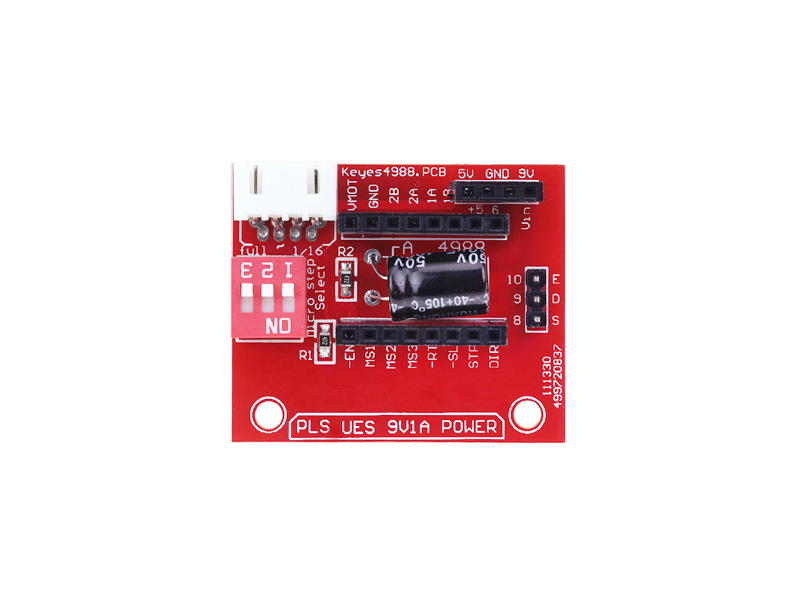

A4988 Stepper Motor Driver Expansion Board - Image 2

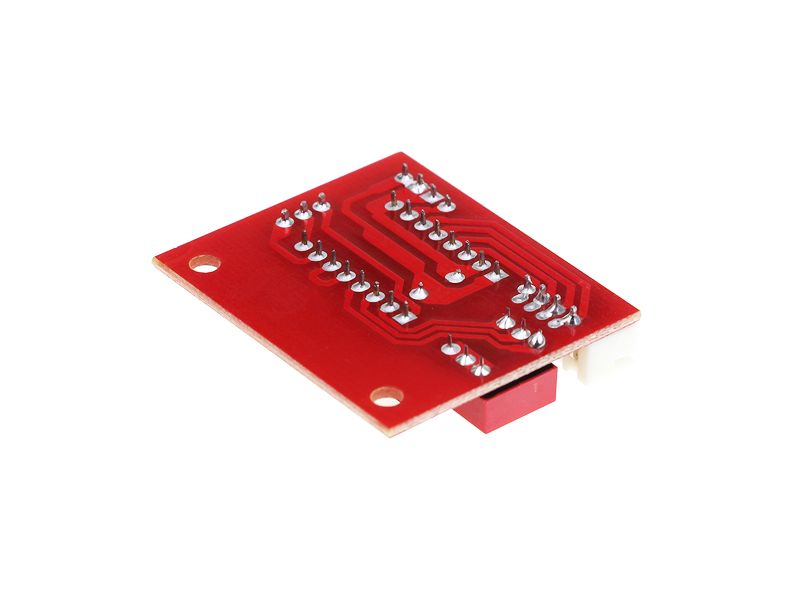

A4988 Stepper Motor Driver Expansion Board - Image 3

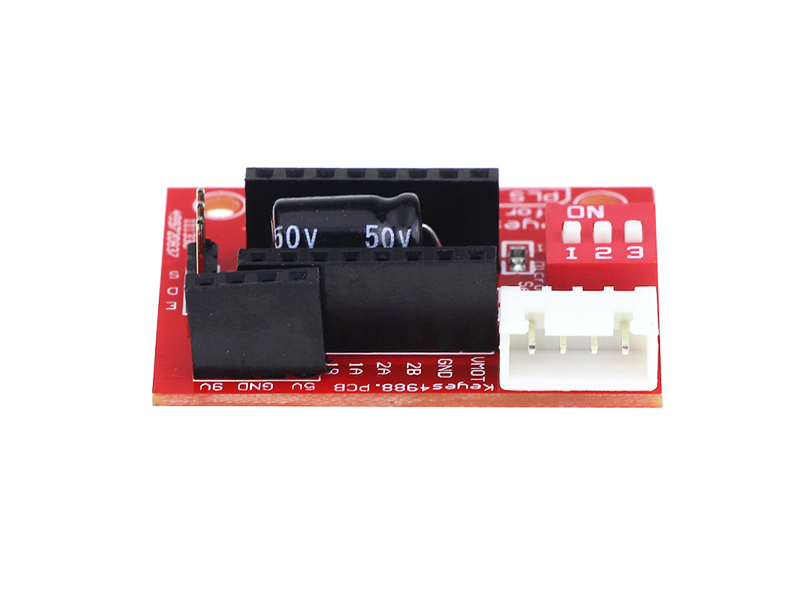

A4988 Stepper Motor Driver Expansion Board - Image 4
A4988 Stepper Motor Driver Expansion Board
A4988 Stepper Motor Driver Expansion Board
A4988 Stepper Motor Driver Expansion Board
A4988 Stepper Motor Driver Expansion Board
A4988 Stepper Motor Driver Expansion Board - Thumb 1
A4988 Stepper Motor Driver Expansion Board - Thumb 2
A4988 Stepper Motor Driver Expansion Board - Thumb 3
A4988 Stepper Motor Driver Expansion Board - Thumb 4
LKR 250.00
Out of Stock
View Product Details

A4988 DRV8825 Stepper Motor Driver Control Shield Expansion Board for 3D Printer Parts Features: You can use A4988 / DRV8825, take care of the direction when inserting, or it may burn down the driver. The jumper hits the position of ON DP to indicate 16 subdivision (4988) or 32 subdivision (8825). White connector: for connection motor. Female Power connector: for connects 5V and 12V-24V power. E, S, D, respectively corresponding to the connection of the Enable/Step/Dir – drive signal output.

Specifications

Compatible
A4988 Stepper Motor Red A4988 Stepper Motor Green Drv8825 Stepper Motor Purple
Features
Full, Half, 1/4, 1/8 Steps
Input Voltage
Motor Voltage - 5V ~ 24V
Operating Voltage
5V
