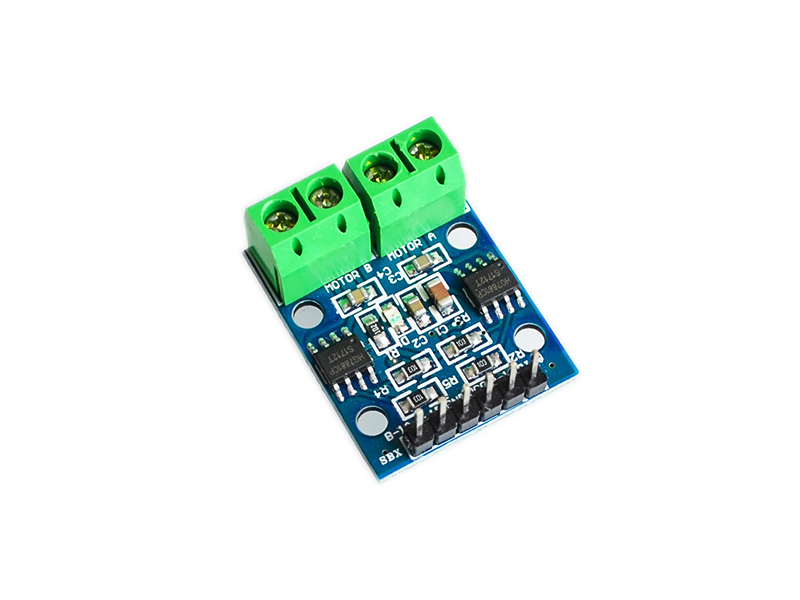

L9110 Dual-Channel H-Bridge Motor Driver - Image 1
L9110 Dual-Channel H-Bridge Motor Driver - Image 2
L9110 Dual-Channel H-Bridge Motor Driver - Image 3
L9110 Dual-Channel H-Bridge Motor Driver

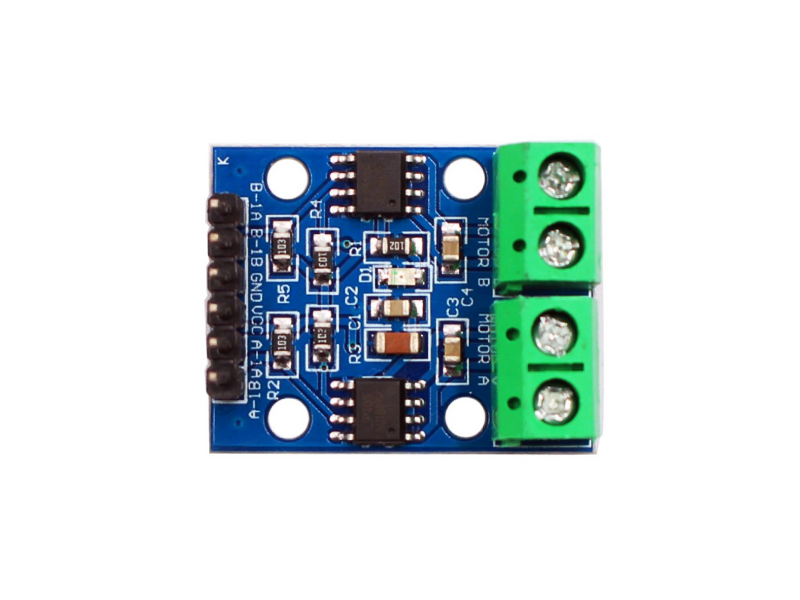

L9110 Dual-Channel H-Bridge Motor Driver Top

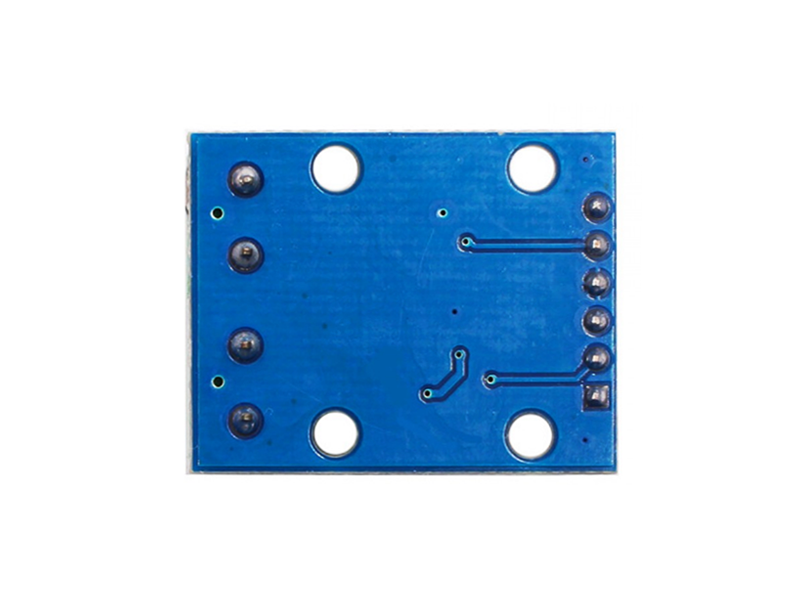

L9110 Dual-Channel H-Bridge Motor Driver Bottom
L9110 Dual-Channel H-Bridge Motor Driver - Thumb 1
L9110 Dual-Channel H-Bridge Motor Driver - Thumb 2
L9110 Dual-Channel H-Bridge Motor Driver - Thumb 3
LKR 220.00
View Product Details

The HG7881 (L9110S) Dual Channel Motor Driver Module is a compact board that can be used to drive very small robots.

This tiny module has two independent HG7881 (L9110S) motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers.


Specifications

Current
Per Motor - 800mA
Input Voltage
2.5V ~ 12V
Length x Width x Height
33mm x 22mm x 14mm
