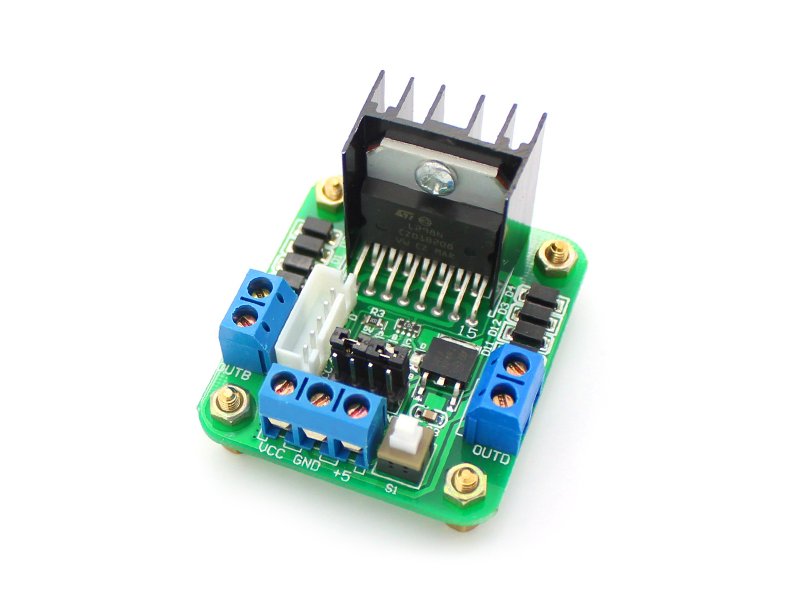

L298D Motor Driver - Image 1
L298D Motor Driver - Image 2
L298D Motor Driver

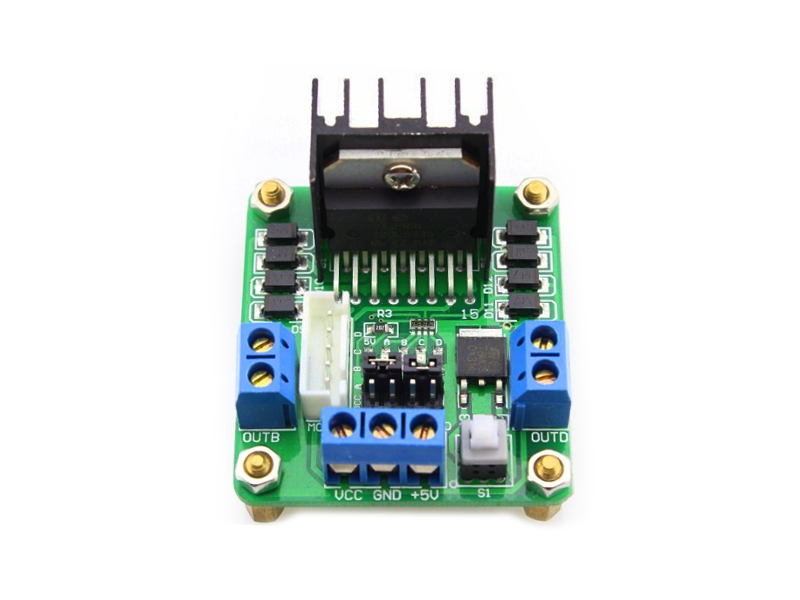

L298D Motor Driver Front

This Module uses L298N dull full bridge driver, an integrated monolithic circuit in 15 -lead multiwatt and power SO20 packages. its a high voltage , high current dual full bridge driver designed to accept stranded TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepper motors.

Specifications

Current
Average Current - 2A Peak Current - 3A
I/O Pins
2 PWM pins 4 Motor Direction pins 2 Channel for DC Motors Solenoid and Relays and Stepper motor pin out
Input Voltage
5V~35V
Operating Voltage
5 V
Power
20 W
Special Features
LED indicators
