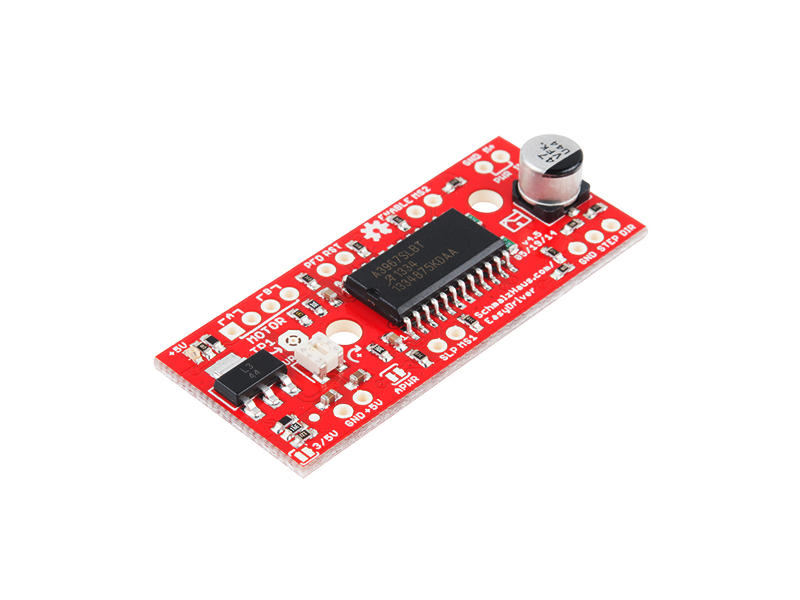

EasyDriver Stepper Motor Driver - Image 1

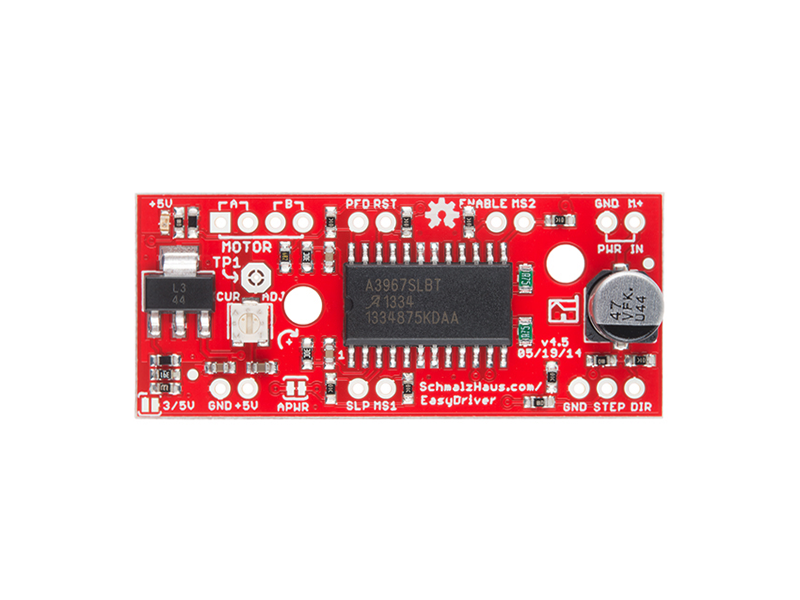

EasyDriver Stepper Motor Driver - Image 2
EasyDriver Stepper Motor Driver
EasyDriver Stepper Motor Driver

The EasyDriver Stepper Motor Driver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors. On this version (v4.4) we fixed the silk error on the min/max adjustment.


Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Specifications

Compatible
4, 6 and 8 wire Stepper motors
Current
150mA/phase ~ 750mA/phase(Maximum)
Input Voltage
7V ~ 30V
Special Features
MS1 and MS2 pins broken out to change micro stepping resolution to full, half, quarter and eighth steps (defaults to eighth)
