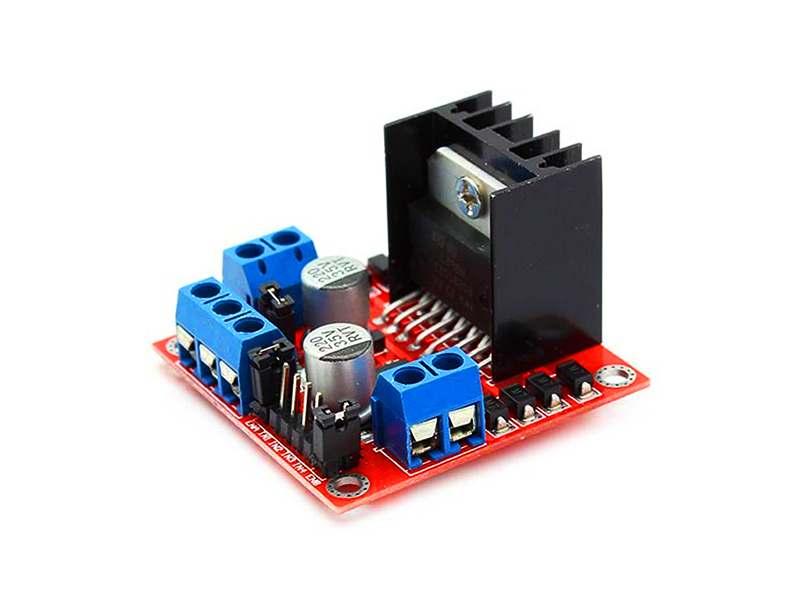

L298 Motor Driver

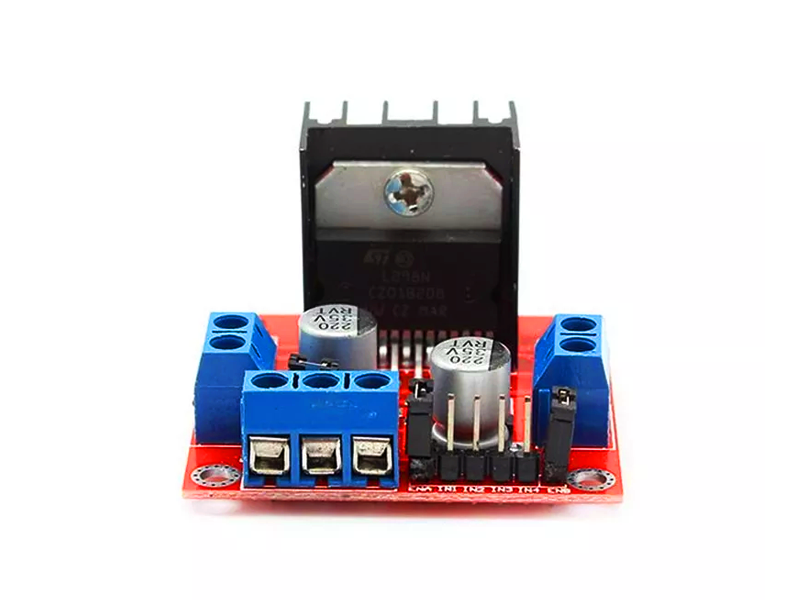

L298 Motor Driver Front

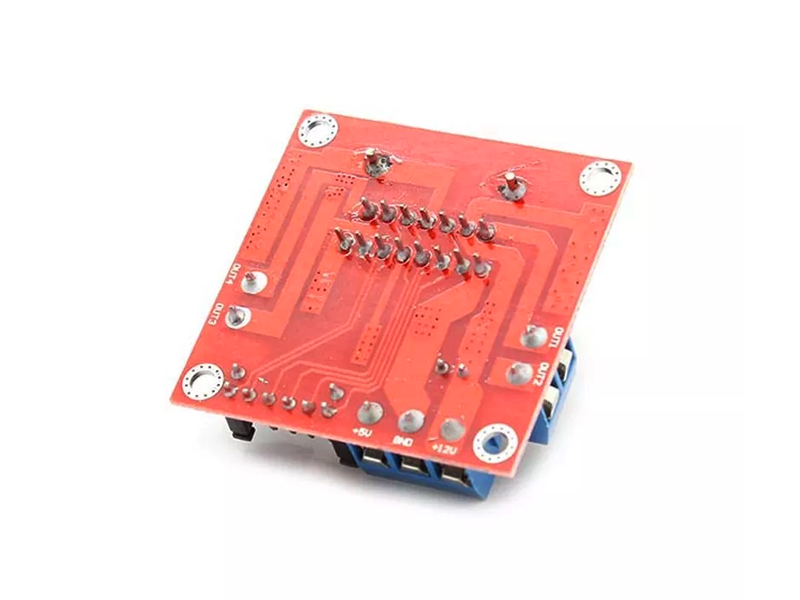

L298 Motor Driver Bottom
LKR 500.00
This dual bidirectional motor driver is based on the very popular L298 Dual H-Bridge Motor Driver IC. This module will allow you to easily and independently control two motors of up to 2A each in both directions. It is ideal for robotic applications and well suited for connection to a micro-controller requiring just a couple of control lines per motor.
Specifications
Current
maximum Current per Channel - 2
A
I/O Pins
2 DC Motor Channels
PWM pins
Input Voltage
5V~35V
Length x Width
55mm x 49mm
Operating Voltage
5
V
Power
20
W
Weight
33
g
