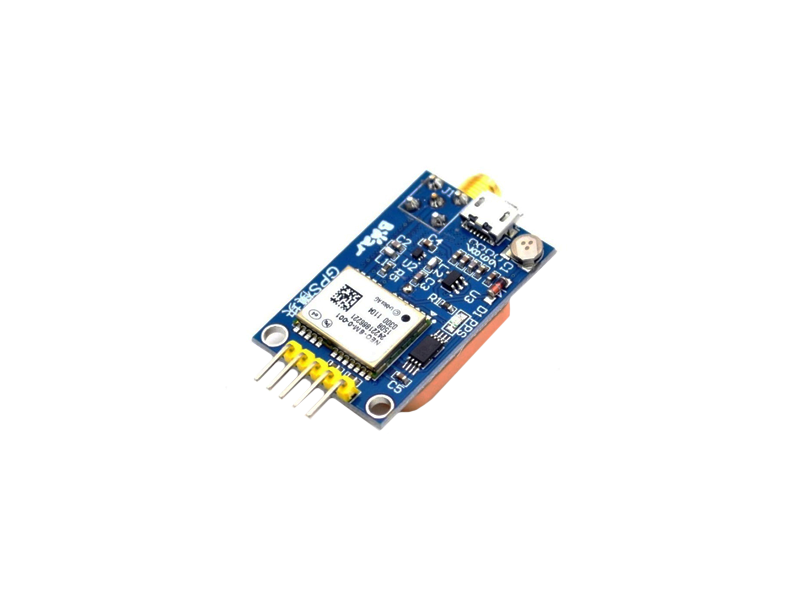

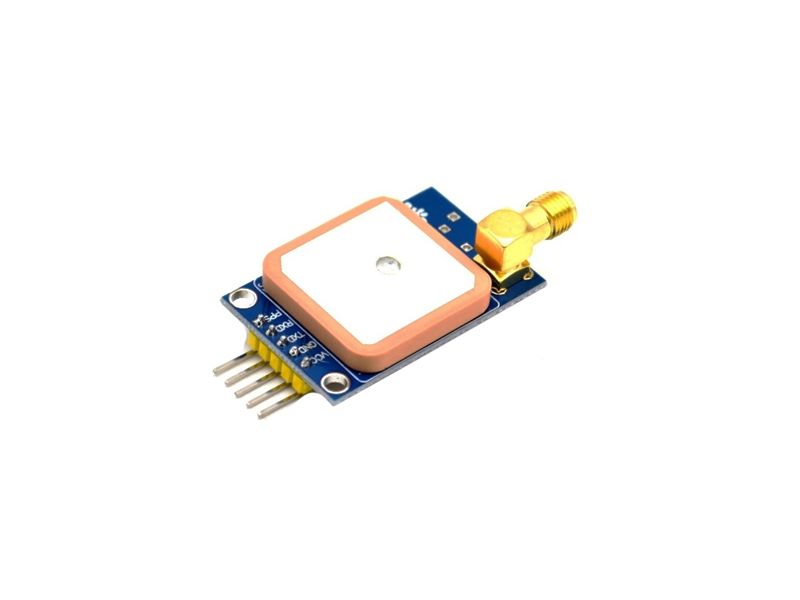

Ublox NEO 6M GPS Module with SMA Connection

LKR 1,600.00

The NEO-6M-compatible GPS Module is ideal for all sorts of development boards, Arduino projects and more. It can operate on voltages between 3 and 6V DC, and has a simple serial output which blasts out the NMEA GPS data at 9600 baud. and there is advantage to connect external GPS antenna. That's make more accurate and more sensitive to get data.

Specifications

Features

50 channel receiver Time to first fix - Cold or warm start 27 seconds, hot start - 1 second Maximum update rate - 1Hz Horizontal position accuracy - 2.5m Velocity accuracy - 0.1 m/s Heading accuracy - 0.5 degrees Operational limits Dynamics <= 4g Altitude - 50000m Velocity - 500 m/s

Operating Voltage

3.3V ~ 5V

Sensitivity

Tracking and navigation - -161dBm Reacquisition - -160dBm Cold start (without aiding) - -147dBm Hot start - -156dBm
