Ublox NEO-6M GPS Module

Ublox NEO-6M GPS Module - Image 1
Ublox NEO-6M GPS Module - Image 2
Ublox NEO-6M GPS Module - Image 3
Ublox NEO-6M GPS Module
Ublox NEO-6M GPS Module Top

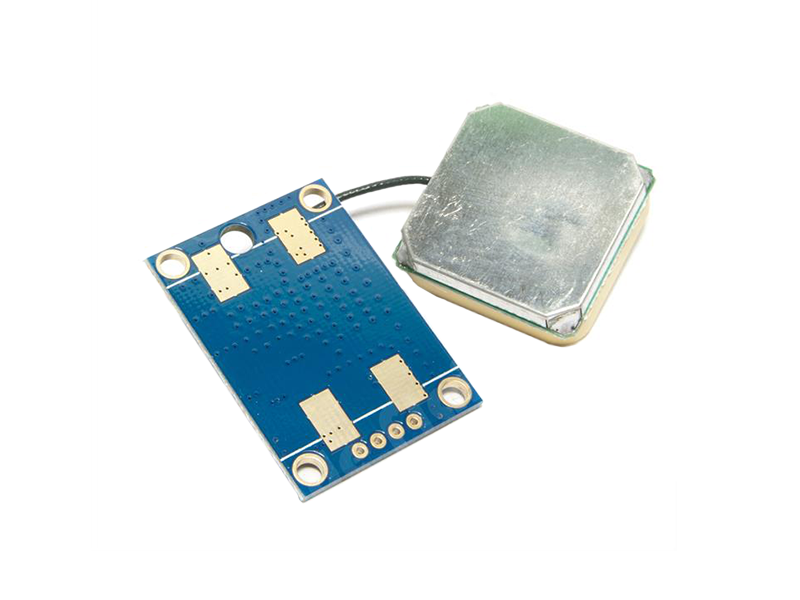

Ublox NEO-6M GPS Module Bottom
LKR 1,100.00

This is a complete GPS module that is based on the Ublox NEO-6M. This unit uses the latest technology from Ublox to give the best possible positioning information and includes a larger built-in 25 x 25mm active GPS antenna with a UART TTL socket. A battery is also included so that you can obtain a GPS lock faster. This is an updated GPS module that can be used with ardupilot mega v2. This GPS module is give the best possible position information, allowing for better performance with your Ardupilot or other Multirotor control platform.



Specifications

Current
50mA
Length x Width
Antenna - 25mm x 25mm GPS Board - 22mm x 30mm
Operating Voltage
2.7V ~ 5.0V
Sensitivity
GPS: -162 dBm tracking sensitivity
Special Features
Under 1 second time-to-first-fix for hot and aided starts Anti-jamming technology Support SBAS (WAAS, EGNOS, MSAS, GAGAN) u-blox 6 50 channel positioning engine with over 2 million effective correlators Timepulse 5Hz position update rate UART TTL socket EEprom to store settings Battery for Backup
Temperature Range
-40 ~ 85°C
