Ublox NEO-7M GPS Module

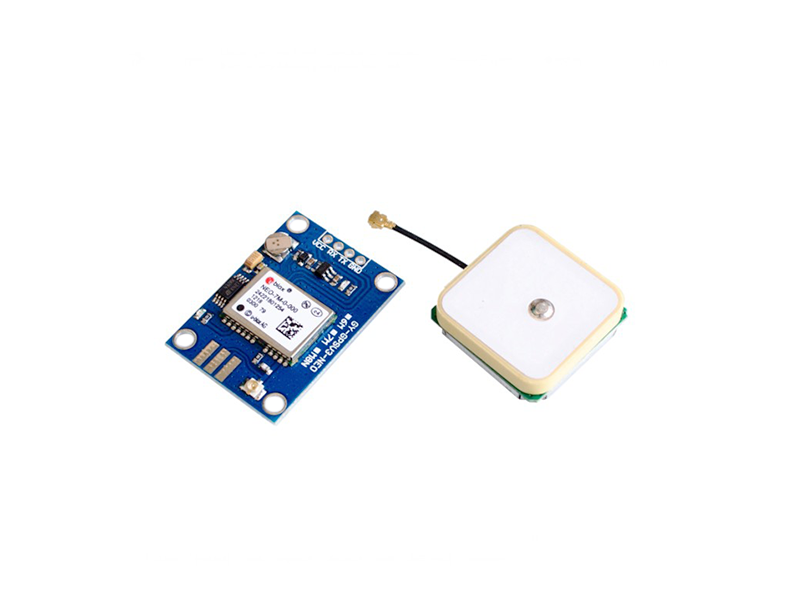

Ublox NEO-7M GPS Module - Image 1

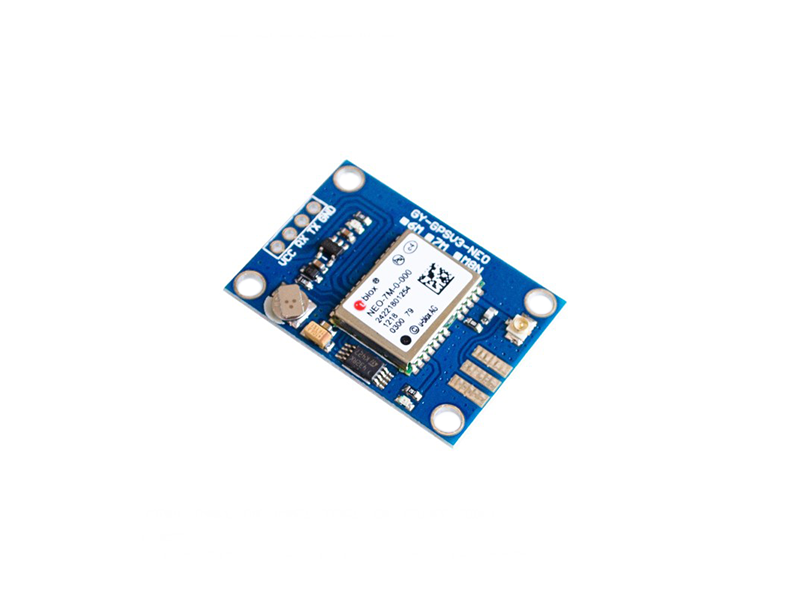

Ublox NEO-7M GPS Module - Image 2

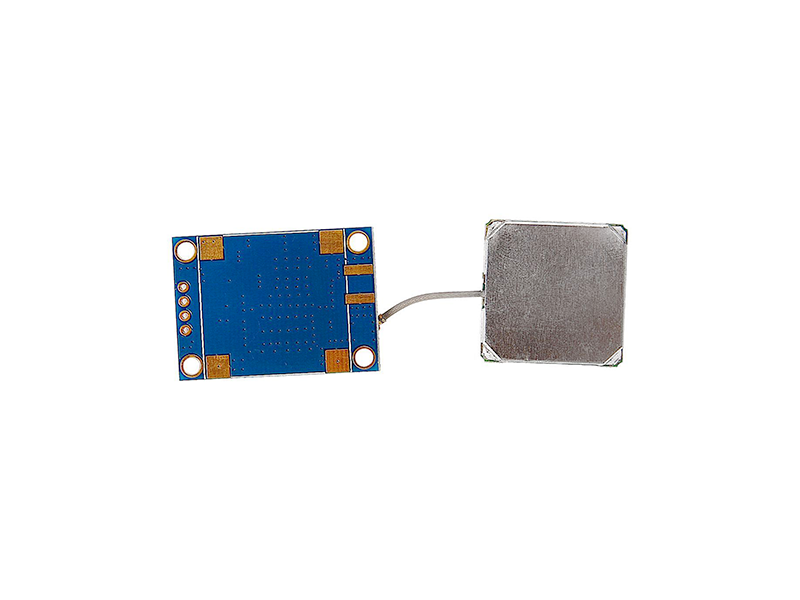

Ublox NEO-7M GPS Module - Image 3
Ublox NEO-7M GPS Module
Ublox NEO-7M GPS Module
Ublox NEO-7M GPS Module
LKR 2,000.00
LKR 2,500.00
20% OFF
Out of Stock

The NEO-7 series of standalone GNSS modules is built on the exceptional performance of the u-blox 7 GNSS (GPS, GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor. The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easier RF integration. The industry proven NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GPS-hostile environments.

Specifications

Accuracy
Positioning accuracy : 2.5mCEP (SBAS: 2.0mCEP)
Baud Rate
9600
Communication
Communication Protocol : NMEA ( default ) / UBX Binary
Current
35mA
Features
Supports GLONASS ( Russian navigation system
Frequency
Update rate :Maximum 10Hz ( default 1HZ)
Impedance
510 ohm
Interfaces
TTL level compatible with 3.3V/ 5V systems
Length x Width x Height
Antenna Size: approx. 25mm x 25mm Module Size: approx. 25mm x 36mm x 6mm
Operating Voltage
2.7V ~ 5.0V
Response Time
Acquisition Time : Cold start : 27S ( fastest ) Hot start : 1S
Sensitivity
Tracking Sensitivity : -162dBm Acquisition sensitivity ( cold start ): -148dBm
Speed
Speed limit : 500m / s
Temperature Range
-40 C ~ 85 C
