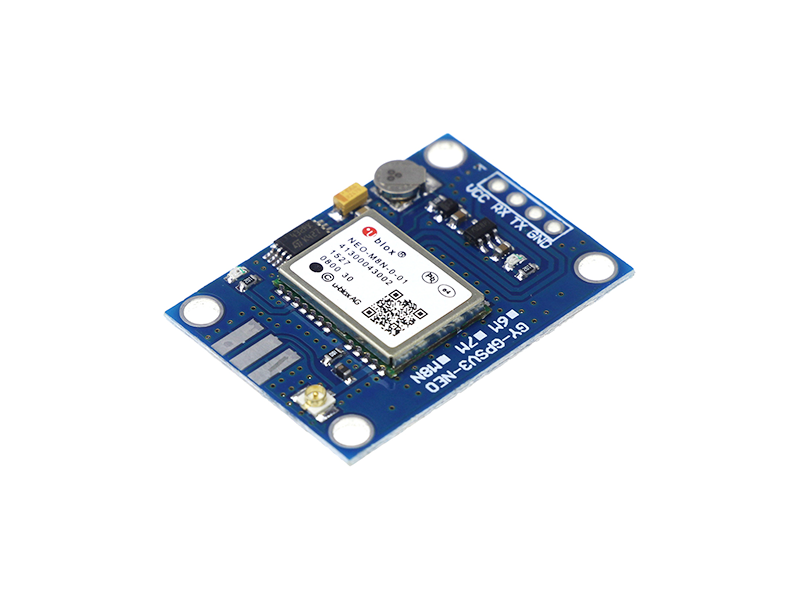

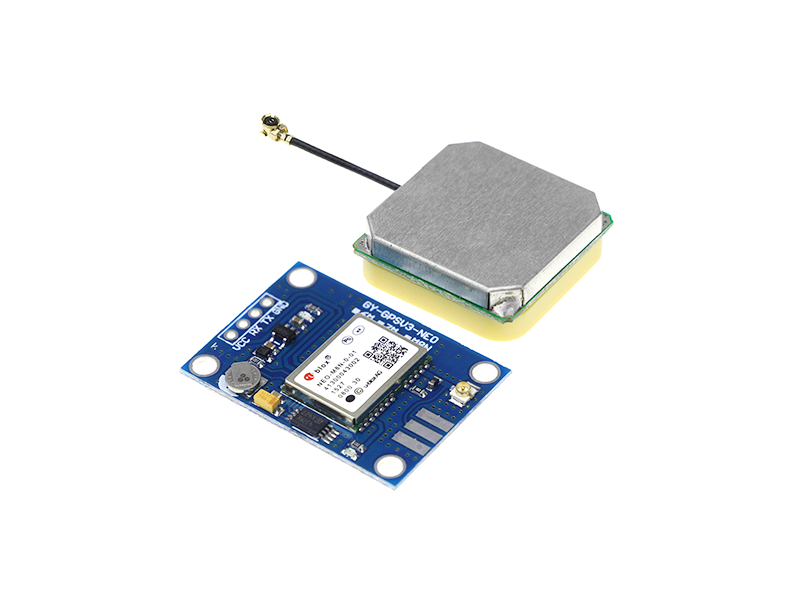

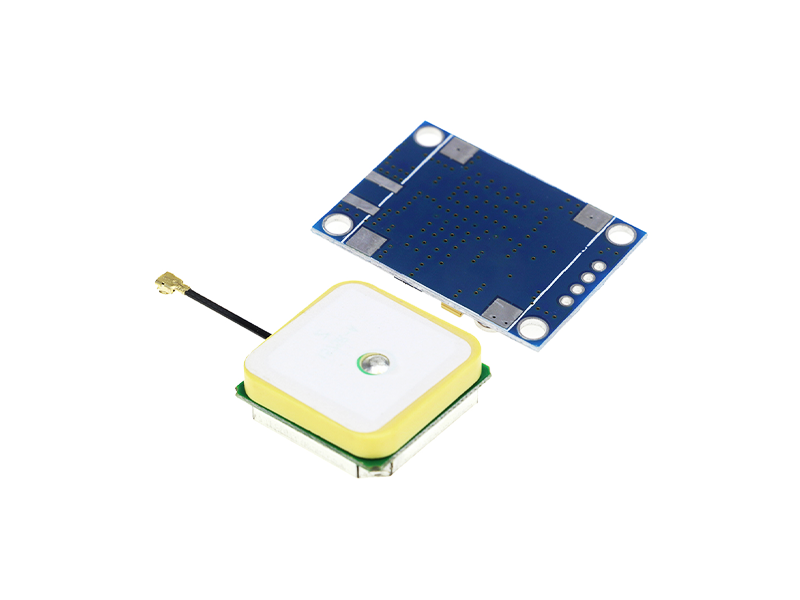

Ublox NEO-8M GPS Module

Ublox NEO-8M GPS Module - Image 1
Ublox NEO-8M GPS Module - Image 2
Ublox NEO-8M GPS Module - Image 3
Ublox NEO-8M GPS Module
Ublox NEO-8M GPS Module
Ublox NEO-8M GPS Module
LKR 3,200.00
Out of Stock

The APM2.5 UBlox NEO-M8N GPS Module GYGPSV1-8M is optimized for cost sensitive applications, while NEO-M8N/M8Q provides best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules is built on the high performing u-blox M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provide best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Note: It is manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.


Specifications

Accuracy
Velocity accuracy 0.05 m/s Heading accuracy 0.3 degrees Horizontal position accuracy 2.5m
Communication
Communication Protocol : NMEA ( default ) / UBX Binary
Current
35mA
Interfaces
TTL level compatible with 3.3V/ 5V systems
Length x Width x Height
Antenna Size: approx. 25mm x 25mm Module Size: approx. 25mm x 36mm x 6mm
Response Time
Cold start 26s Hot start 1s
Sensitivity
Tracking & Navigation –167 dBm
Temperature Range
-40 C ~ 85 C
Weight
17 g
