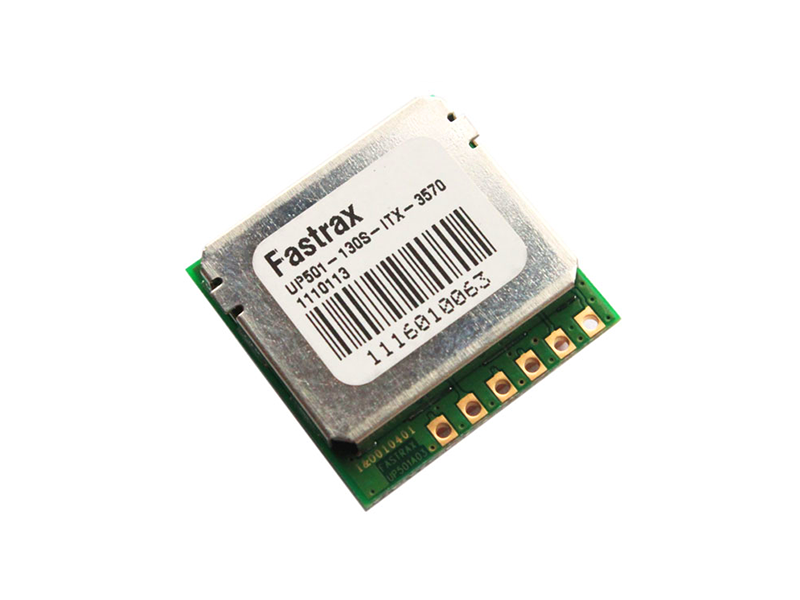

Fastrax UP501 GPS Module

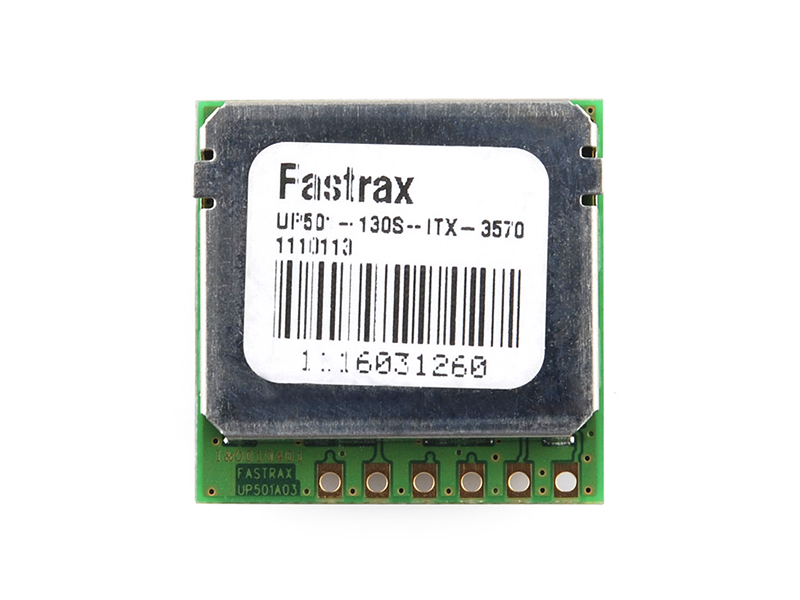

Fastrax UP501 GPS Module Front

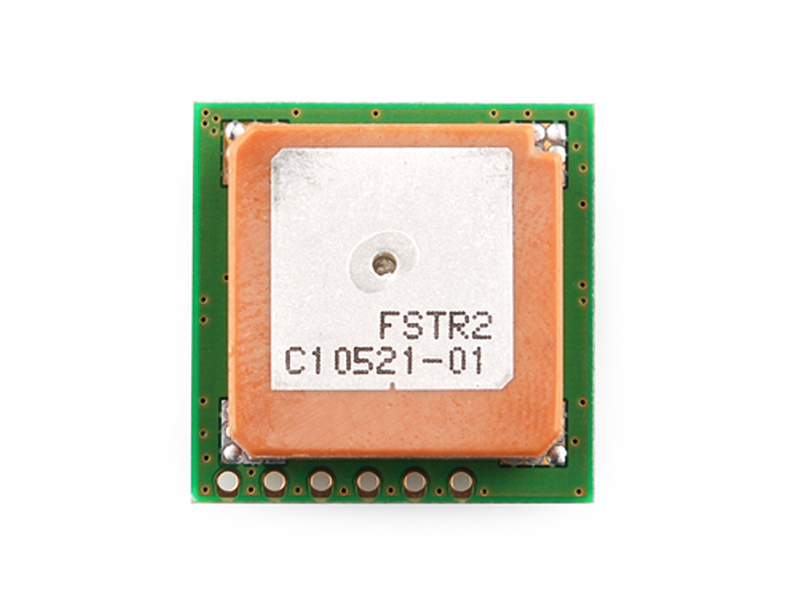

Fastrax UP501 GPS Module Back
Fastrax UP501 GPS Module - Thumb 1
Fastrax UP501 GPS Module - Thumb 2
Fastrax UP501 GPS Module - Thumb 3
LKR 4,600.00
Out of Stock
View Product Details

Fastrax UP501 GPS receiver module with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.

The Fastrax UP501 receiver with embedded antenna is ideally suited for navigation systems, asset tracking devices and battery operated consumer products like personal navigation devices, handheld computers, cameras, and sports accessories. Fastrax UP501 is also an ideal receiver for GPS mouse applications, due to its compact design and easy interfacing.

Specifications

Length x Width x Height
22mm x 22mm x 8mm Embedded patch antenna 18.4 x 18.4 x 4.2 mm
Operating Voltage
3.0V ~ 4.2V
Power
Low power consumption 75mV @ 3.0V
Special Features
NMEA protocols (default speed: 9600bps) One serial port (default: CMOS level,option:RS232), 1PPS output A-GPS with 14-day extended ephemeris WAAS/EGNOS support MediaTek MT3329, Channels acquisition and 22 tracking Optional Internal back-up battery
