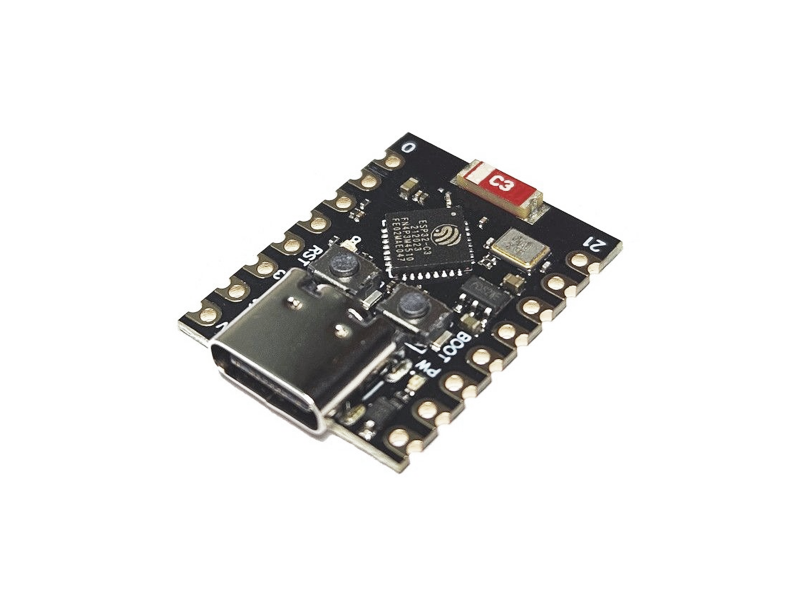

ESP32 C3 Mini Dev Board - Image 1

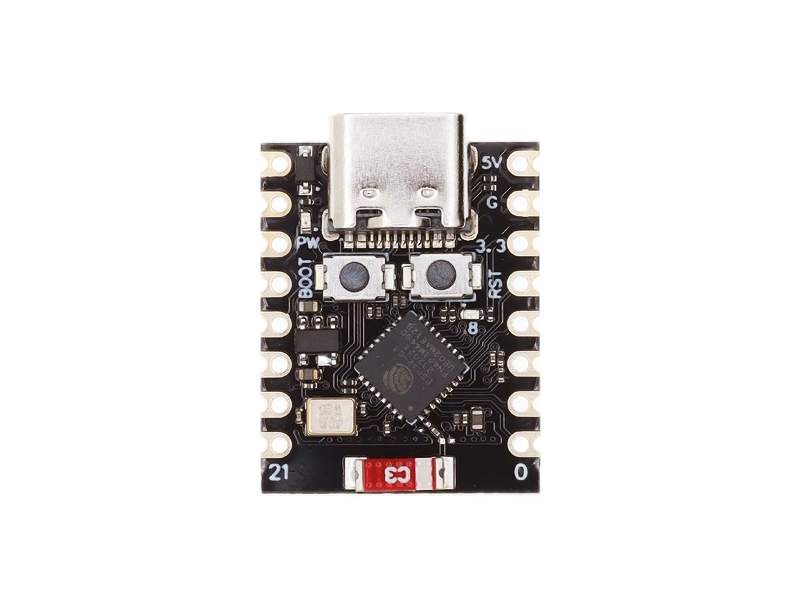

ESP32 C3 Mini Dev Board - Image 2

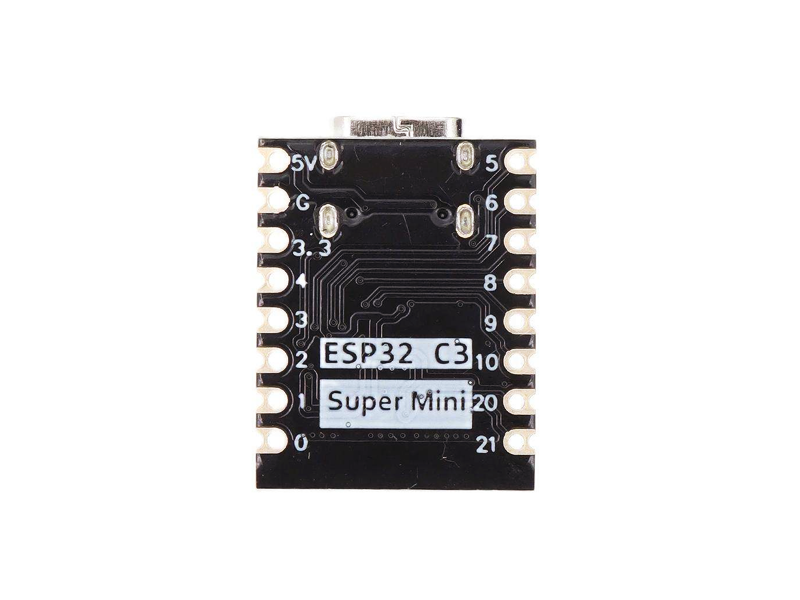

ESP32 C3 Mini Dev Board - Image 3
ESP32 C3 Mini Dev Board
ESP32 C3 Mini Dev Board
ESP32 C3 Mini Dev Board
ESP32 C3 Mini Dev Board - Thumb 1
ESP32 C3 Mini Dev Board - Thumb 2
ESP32 C3 Mini Dev Board - Thumb 3
LKR 750.00
View Product Details

The ESP32C3 is a compact IoT development board based on the Espressif ESP32C3 WiFi/Bluetooth chip. It features a 32-bit RISC-V processor with an FPU (floating point unit), allowing for efficient computational performance. The ESP32C3 supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols, providing excellent RF performance and reliable wireless connectivity.

Its compact and simple design allows for easy surface mounting. The board comes with rich interfaces, including 11 digital I/O pins that can be used as PWM pins and 4 analog I/Os for ADC use. It also supports UART, I2C, and SPI interfaces, with a small reset button and boot loader mode on the board.


Specifications

Communication
WiFi 802.11b/g/n 2.4 GHz Bluetooth 5.0
Flash Memory
4MB
Interfaces
1xI2C 1xSPI 2xUART 11xGPIO (PWM) 4xADC
Length x Width
22.52mm x 18 mm
Power
Ultra-low, deep sleep power consumption approximately 43 µA
Processor
160 MHz 32-bit RISC-V CPU
Special Features
Security Features: AES-128/256 encryption, RSA, HMAC, digital signature, and secure boot
SRAM
400KB SRAM, 384KB ROM
