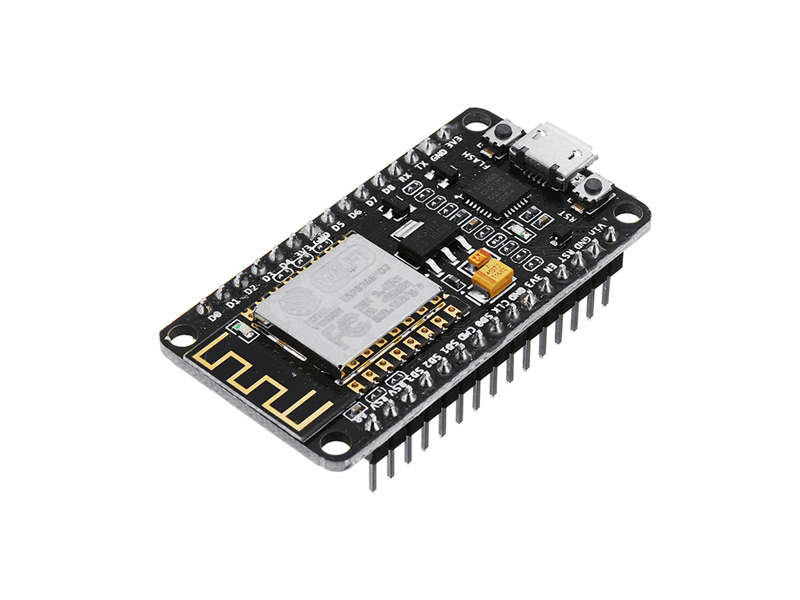

NodeMCU Mini Lua V3 Wi-Fi Development Board
LKR 1,250.00
Out of Stock
View Product Details

ESP12E DevKit is based on the development of ESP8266 which is an ultra-low-power UART-WiFi module. It’s designed for mobile devices and networking applications, usually it can be applied to the Internet, LAN communications, smart home fields, industrial control, and other handheld devices. ESP12E DevKit selects the on-board PCB antenna package with 2.54 in-line package, so that it can debug equipment or direct product applications conveniently. ESP12E DevKit encapsulates ESP8266 hardware operation API by Lua language, which could enhance the ability of developers to quickly design products.

This is the normal mini Nodemcu board that can fix to breadboard.you can easily prototype any circuit with this nodemcu.

Specifications

Current
70mA (200mA MAX) Standby: <200uA;
DC Current per I/O Pin
15 mA
I/O Pins
Digital Pins - D0 ~ D8 SD1 ~ SD3 - used as GPIO PWM Pins IIC interface AD0 - 1
Input Voltage
4.5V ~ 9V (10VMAX) V
Operating Voltage
3.3V
Special Features
Support STA / AP / STA + AP three operating modes Built-in TCP / IP protocol stack to support multiple TCP Client connection (5 MAX) Providing USB debugging interface Transfer rate: 110-460800bps Support UART / GPIO data communication interface Remote firmware upgrade (OTA) Smart Link supports intelligent networking capabilities Drive Type: Dual high-power H-bridge driver
WiFi
802.11 b / g / n
