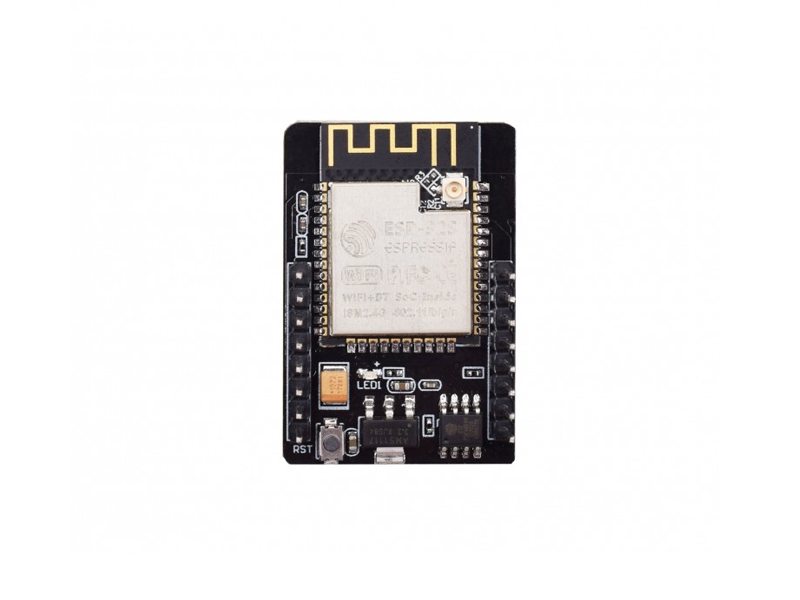

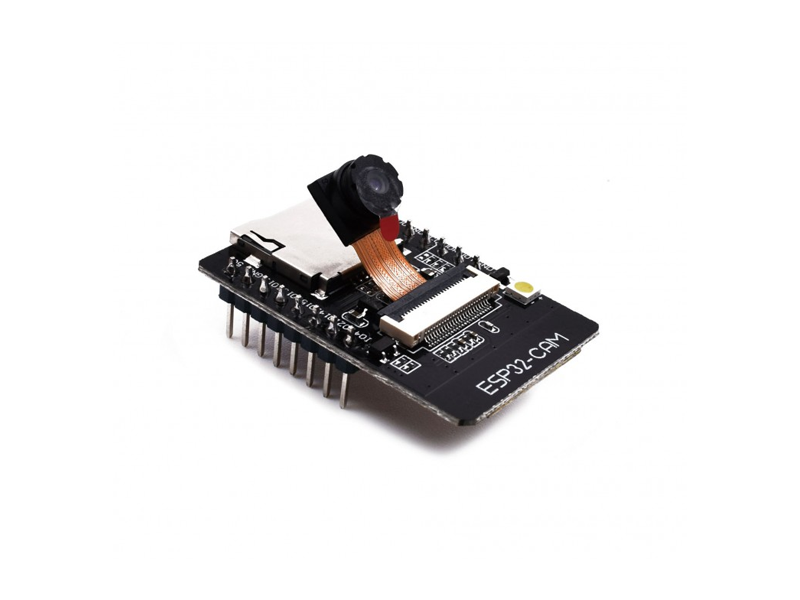

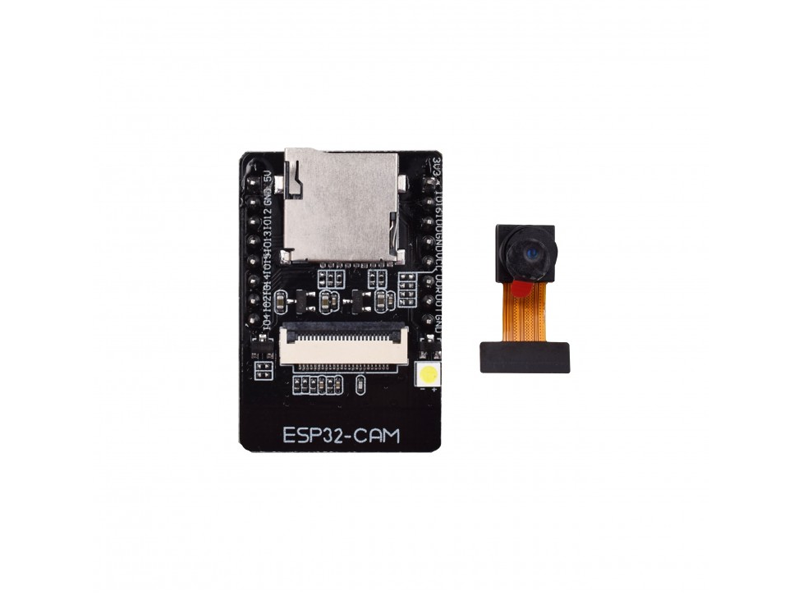

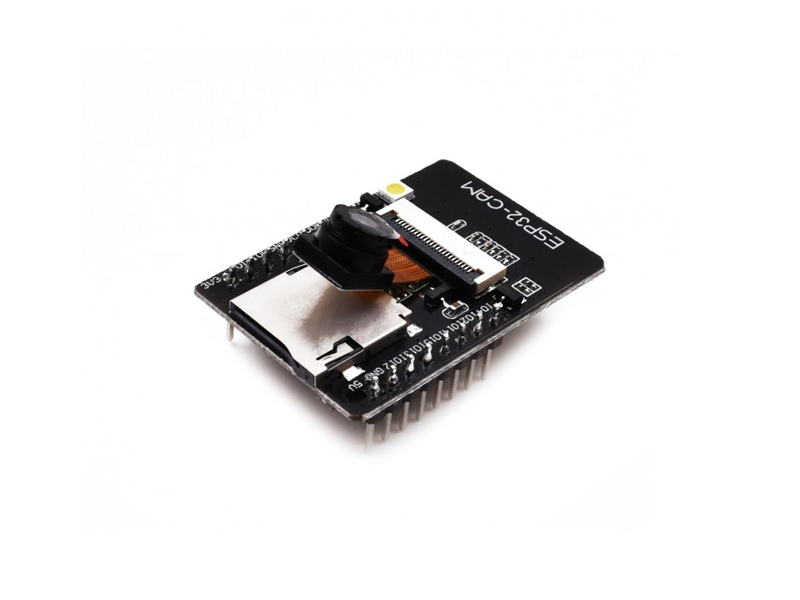

ESP32 Development Board with Camera (With Programing Shield)

ESP32 Development Board with Camera (With Programing Shield) - Image 1
ESP32 Development Board with Camera (With Programing Shield) - Image 2
ESP32 Development Board with Camera (With Programing Shield) - Image 3
ESP32 Development Board with Camera (With Programing Shield) - Image 4
ESP32 Development Board with Camera
ESP32 Development Board with Camera
ESP32 Development Board with Camera
ESP32 Development Board with Camera
LKR 3,000.00
Out of Stock

The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleep current and a minimum of 6mA.

ESP-32CAM can be widely used in various IoT applications. It is suitable for smart home devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

Specifications

Bluetooth protocol
BT/BLE SoC
Features
Support for images WiFI upload Support TF card Support multiple sleep modes Embedded Lwip and FreeRTOS Support STA/AP/STA+AP working mode Support Smart Config/AirKiss One-click distribution network Support for serial local upgrade and remote firmware upgrade (FOTA) Support secondary development
Interfaces
UART/SPI/I2C/PWM/ADC/DAC
Length x Width x Height
27mm x 40mm x 6mm
Memory
4M
Processor
dual-core 32-bit 240MHz up to 600 DMIPS
SRAM
520 KB
Support
OV2640 and OV7670 cameras
Weight
6.8g
WiFi
802.11b/g/n
