ESP32 S3 N16R8 Dev Board
ESP32 S3 N16R8 Dev Board
ESP32 S3 N16R8 Dev Board - Thumb 1
ESP32 S3 N16R8 Dev Board - Thumb 2
LKR 1,850.00
View Product Details

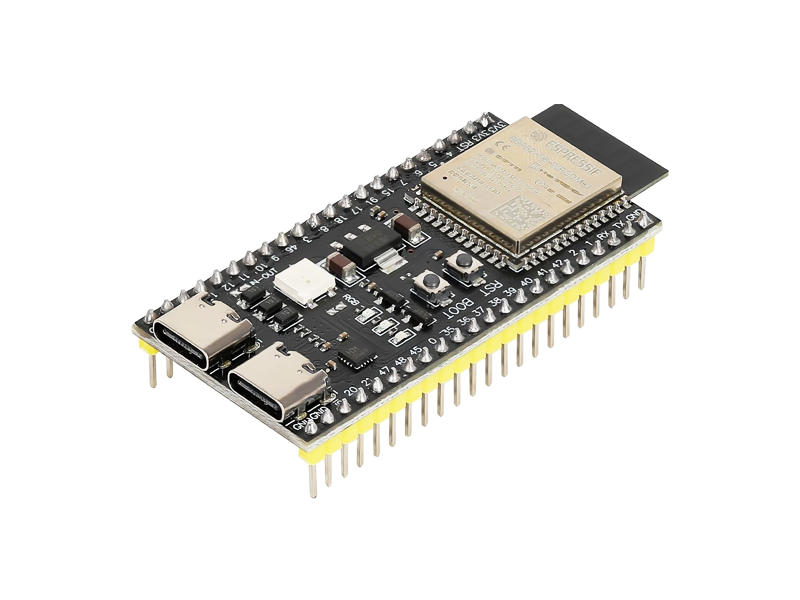

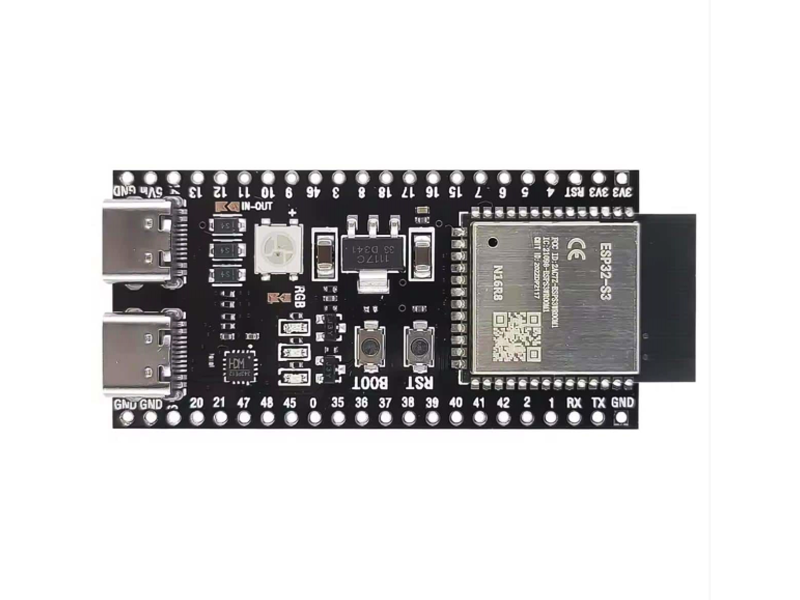

The ESP32 S3WROOM 1 N16R8 development board is an essential tool for anyone looking to easily create advanced IoT projects. With its WiFi and BLE 5.0 connectivity, dual USB Type-C ports, IoT capabilities, and support for W2812B RGB lighting, it offers exceptional flexibility and convenience. It's perfect for both experienced developers and enthusiasts who want to build innovative IoT devices. This board is suitable for a variety of applications, from home automation systems to industrial monitoring devices.

Specifications

Bluetooth protocol
Bluetooth 5, Bluetooth mesh
Current
Supply Current Receiving: 91 mA Supply Current Transmitting: 340 mA
Frequency
2.4Ghz
Interfaces
I2C, I2S, SPI, PWM, UART, USB
Memory
ROM: 384 KB GB
Operating Voltage
3V ~ 3.6V
Power
Output Power - 20.5 dBm
Processor
Xtensa® dual-core 32-bit LX7 microprocessor
Speed
Data -150 Mbps
SRAM
• SRAM: 512 KB • SRAM in RTC: 16 KB
Temperature Range
Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C
WiFi
Supports 20 MHz and 40 MHz bandwidth in 2.4 GHz band
