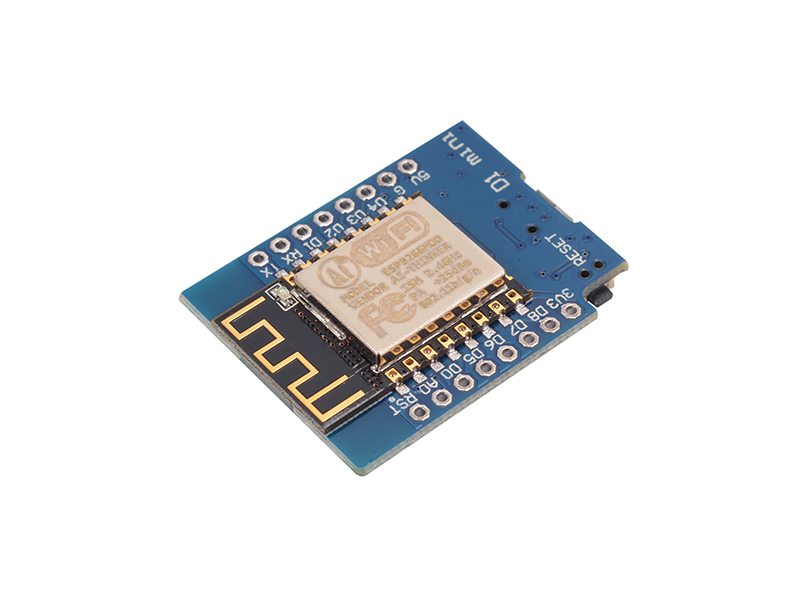

WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Image 1

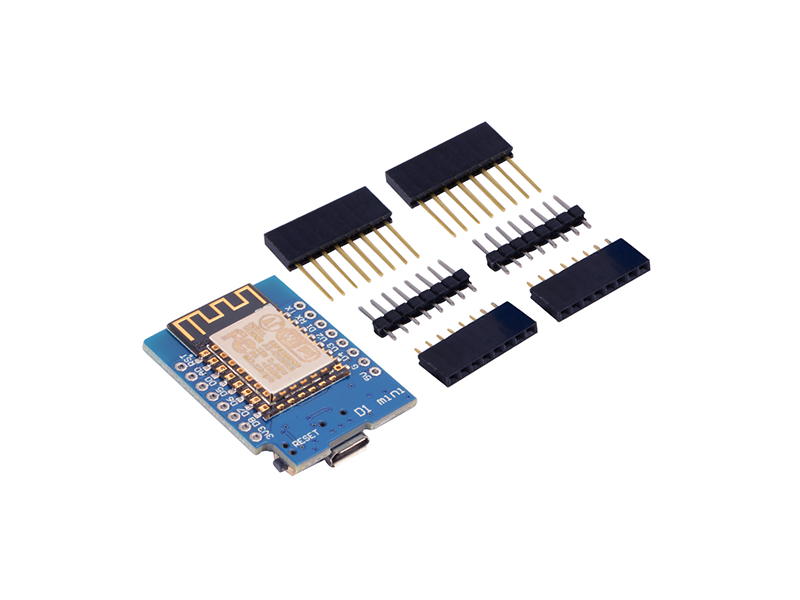

WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Image 2

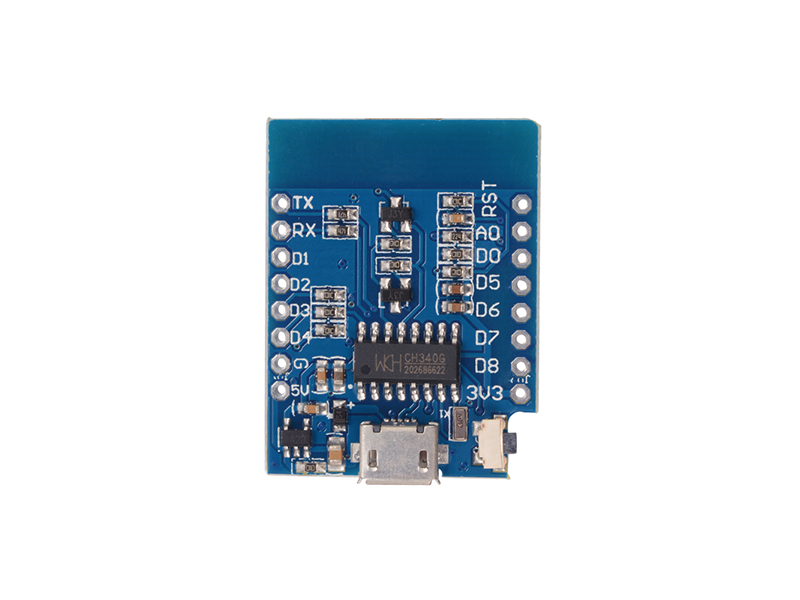

WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Image 3

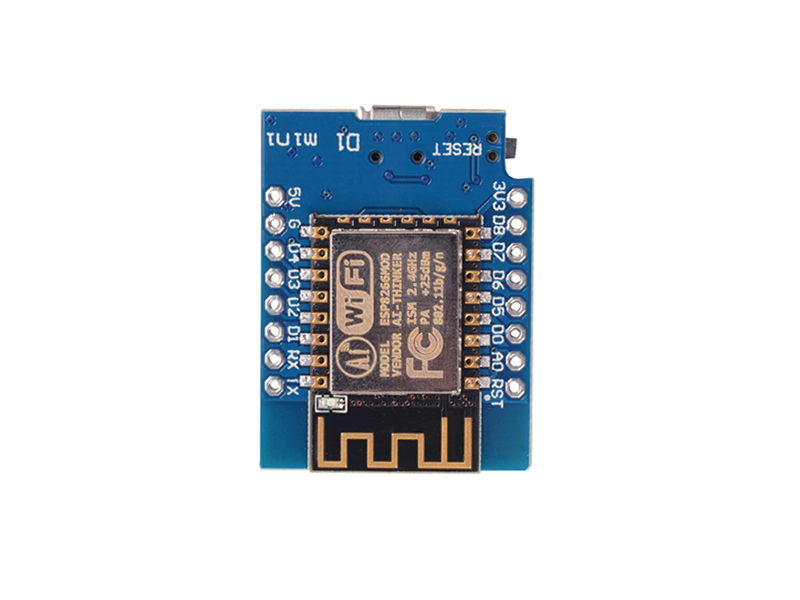

WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Image 4
ESP8266 ESP-12 D1 Mini WIFI Development Board
ESP8266 ESP-12 D1 Mini WIFI Development Board
ESP8266 ESP-12 D1 Mini WIFI Development Board
ESP8266 ESP-12 D1 Mini WIFI Development Board
WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Thumb 1
WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Thumb 2
WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Thumb 3
WeMos ESP8266 ESP-12 D1 Mini WIFI Development Board - Thumb 4
LKR 1,000.00
View Product Details

The WeMos d1 mini is an ESP8266 development board that is compact, versatile and very easy to use with the Arduino IDE or PlatformIO IDE. It is supported natively by the Expressive SDK. The advantage of the WeMos d1 mini compared to other ESP8266 development boards lies in the many expansion cards (shields) developed by the Chinese company Wemos.cc

Specifications

Compatible
Arduino IDE PlatformIO IDE
CPU
80 MHz / 160 MHz GHz
Flash Memory
4MB
I/O Pins
Digital Pins 11 Analog input 01
Input Voltage
7V ~ 24V
Length x Width
34.2mm x 25.6mm
Operating Voltage
5V
USB
Micro USB
Weight
10g
WiFi
WiFi 802.11 b/g/n
