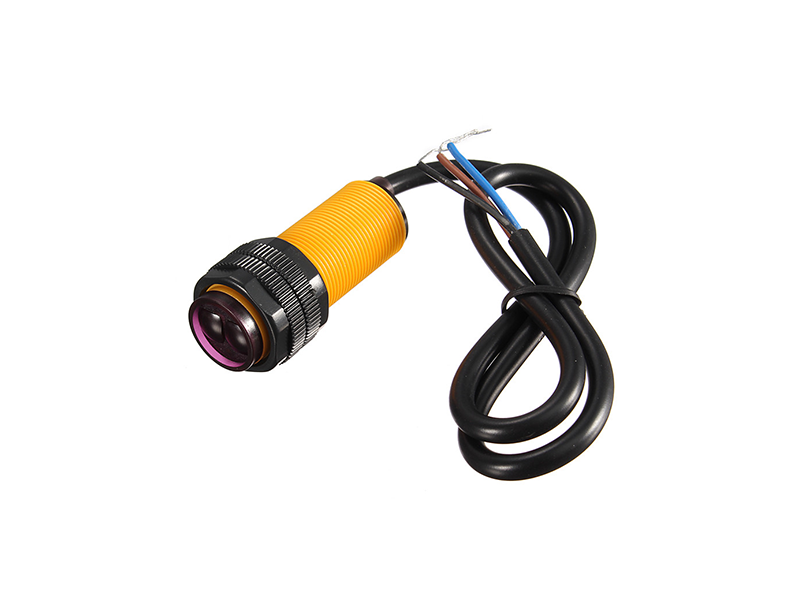

Infrared Obstacle Avoidance Sensor E18-D80NK
Infrared Obstacle Avoidance Sensor E18-D80NK - Thumb 2
LKR 780.00
View Product Details

This Infrared transmitter and receiver in one of the photoelectric sensor. the detection distance can be adjusted upon request. the sensor has a detection distance and visible light interference, cheap, easy to assemble, easy to use features prevent robot obstacle, and the assembly line of the part can be widely used in many occasions.

Red - VCC +
Black - GND -
Blue - OUT signal output

Specifications

Angle
15 °
Current
Operating Current - 10mA ~ 15mA Drive Current - 100mA
Diameter x Width
17mm x 45mm
Distance Range
3cm ~ 80cm
I/O Pins
Output operation - NPN normally open
Length
Wire - 45cm
Operating Voltage
5 V
Response Time
<2 ms
