Infrared Barrier Module

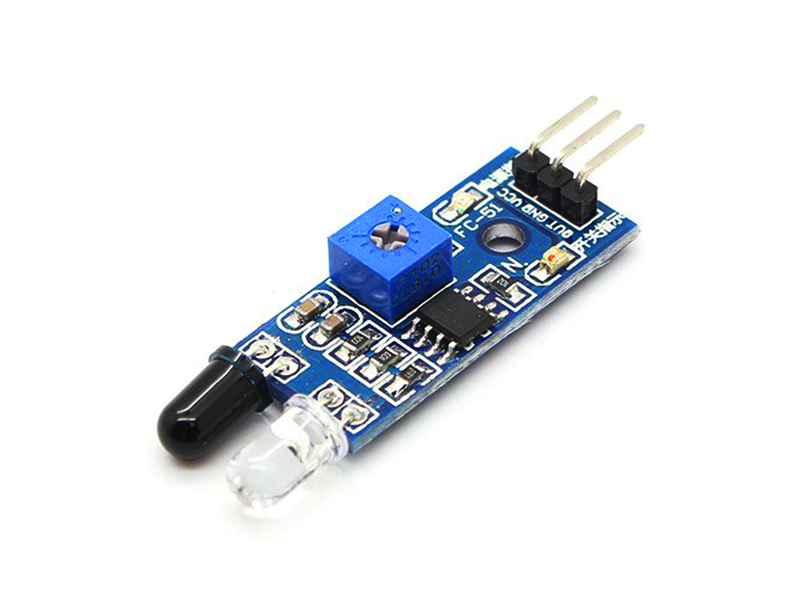

Infrared Barrier Module - Image 1
Infrared Barrier Module - Image 2
Infrared Barrier Module - Image 3
Infrared Barrier Module

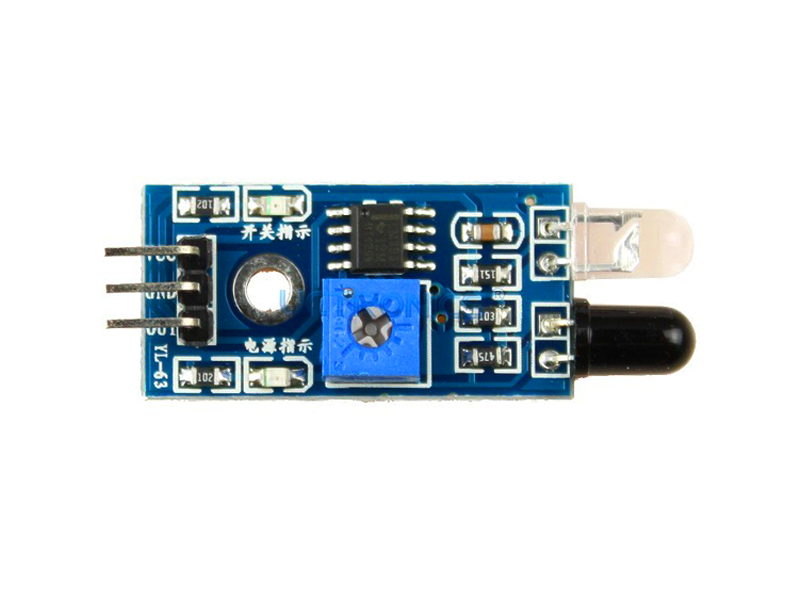

Infrared Barrier Module Top

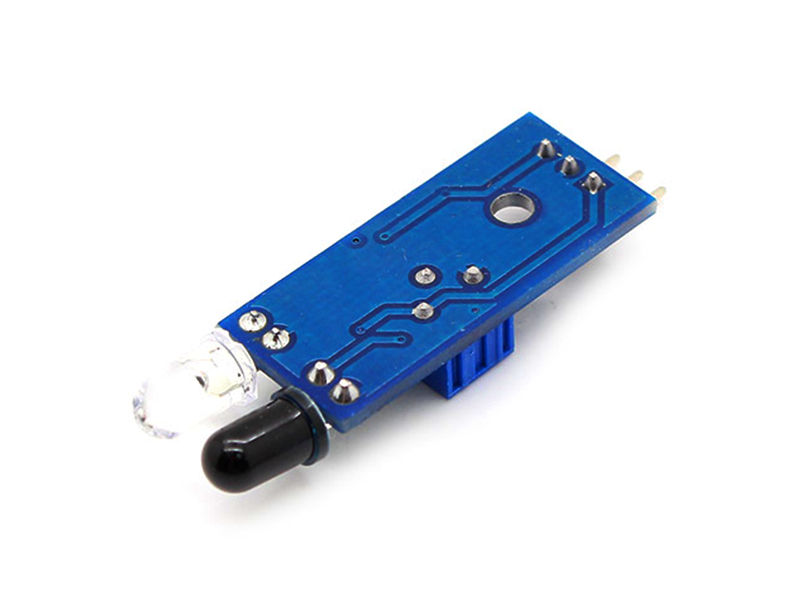

Infrared Barrier Module Back
LKR 120.00
LKR 150.00
20% OFF

The infrared barrier module detects the surfaces and when object moves near the sensor it will response. This module having a pair of infrared transmitter and receiver. Transmitter launch certain frequency infrared signal and receiver receive the reflection of the infrared signal. After processing through the comparator circuit gives the signal output as a trigger.

Specifications

Angle
35 degrees
Distance Range
2cm ~ 60cm
I/O Pins
Trigger Output (0 and 1)
Operating Voltage
3.3V ~ 5V
Special Features
Potential meter - to adjust the sensitive(Distance) of the sensor
Temperature Range
Operating Temperature Range - 0C to 50C
