Ultrasonic Sensor HY-SRF05

Ultrasonic Sensor HY-SRF05 - Image 1
Ultrasonic Sensor HY-SRF05 - Image 2
Ultrasonic Sensor HY-SRF05 - Image 3

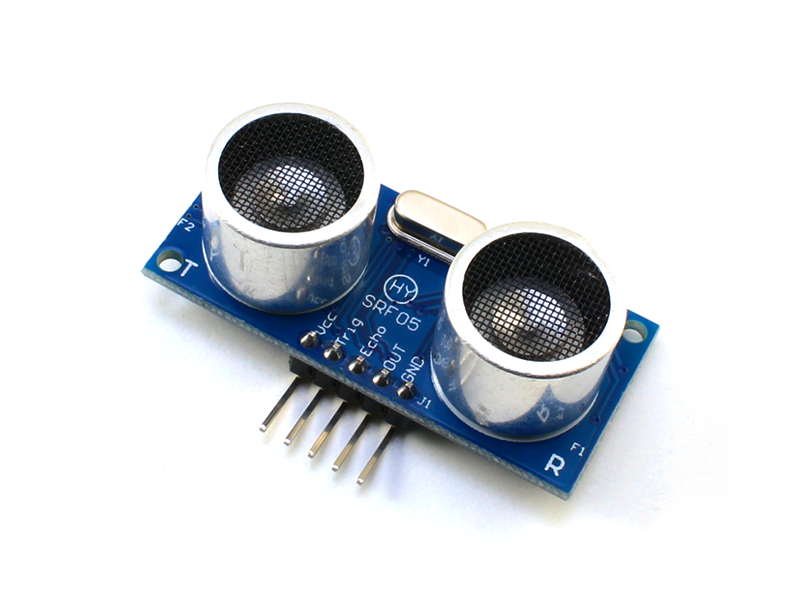

Ultrasonic Sensor HY-SRF05

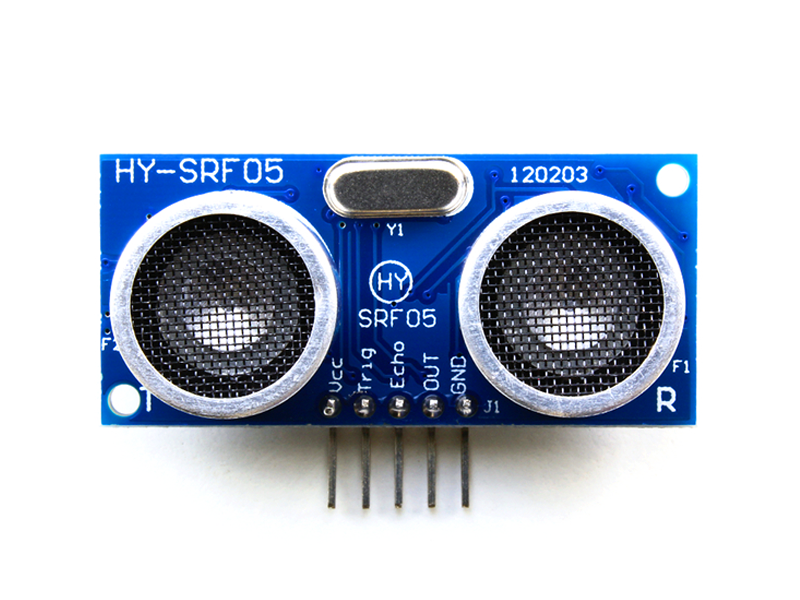

Ultrasonic Sensor HY-SRF05 Front

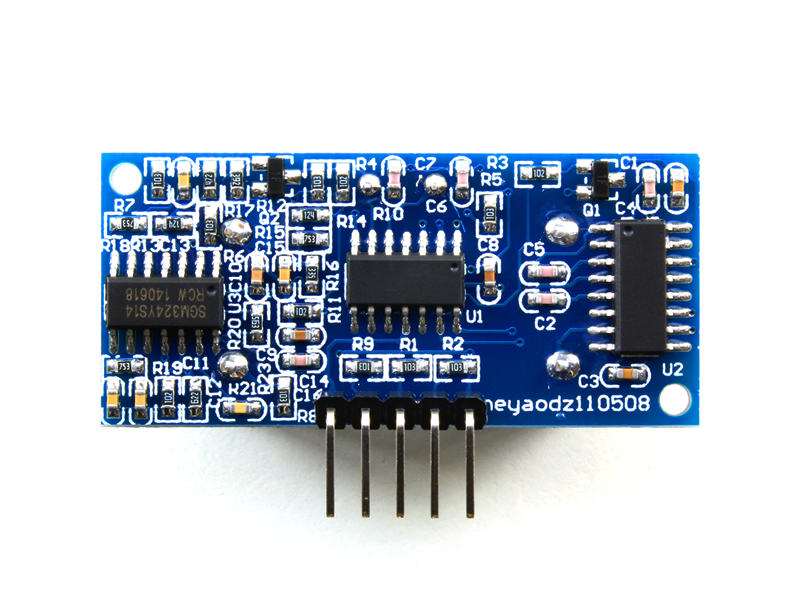

Ultrasonic Sensor HY-SRF05 Back

The SRf05 ultrasonic range sensor detects objects in it,s path and can be used to calculate the range to the object. It is sensitive enough to detect any object around 3 cm to 3 m range.

This module can be used in two different modes:

1. Output pin - single micro-controller pin

2. Dual pin - given a 10uS trigger to the trigger pin and calculating the echo time.

Specifications

Angle
15 degrees
Current
50mA
Distance Range
3cm to 3m
Frequency
40KHz
I/O Pins
Trigger Echo Output
Length x Width x Height
43mm x 20mm x 17mm
Operating Voltage
5 V
