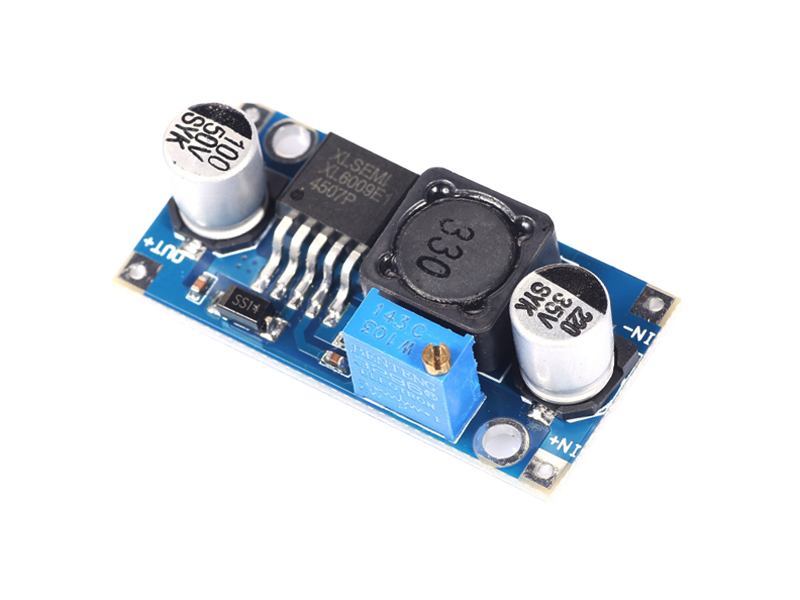

XL6009 Adjustable Step-Up Converter Module - Image 1

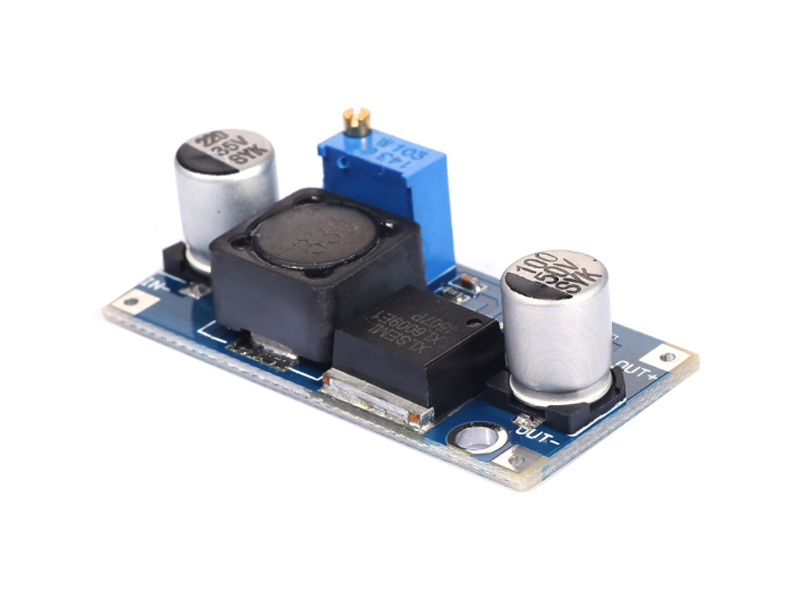

XL6009 Adjustable Step-Up Converter Module - Image 2
XL6009 Adjustable Step-Up Converter Module - Image 3
XL6009 Adjustable Step-Up Converter Module - Image 4
XL6009 Adjustable Step-Up Converter Module

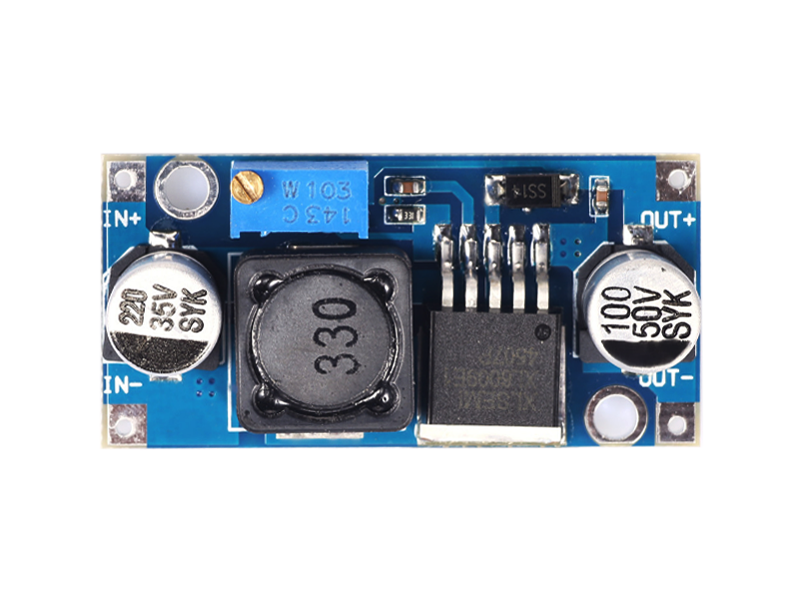

XL6009 Adjustable Step-Up Converter Module Top

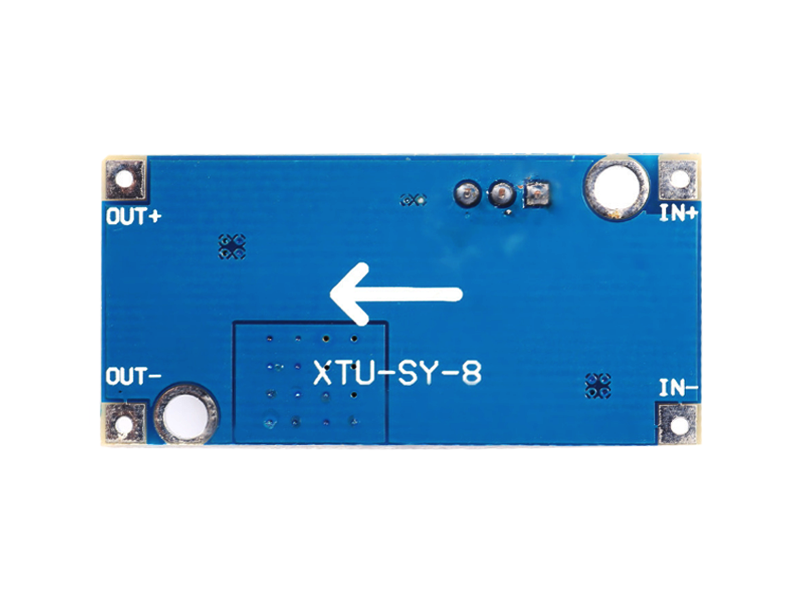

XL6009 Adjustable Step-Up Converter Module Bottom
XL6009 Adjustable Step-Up Converter Module
XL6009 Adjustable Step-Up Converter Module - Thumb 1
XL6009 Adjustable Step-Up Converter Module - Thumb 2
XL6009 Adjustable Step-Up Converter Module - Thumb 3
XL6009 Adjustable Step-Up Converter Module - Thumb 4
LKR 580.00
View Product Details

DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated.

Specifications

Current
4A max (we recommended 1A only) No-load - 18mA
Efficiency
<94% (greater the pressure, the lower the efficiency)
Frequency
Switching frequency 400KHz
Input Voltage
3V ~ 32V
Length x Width x Height
43mm x 21mm x 14mm
Output Voltage
5V ~ 35V
