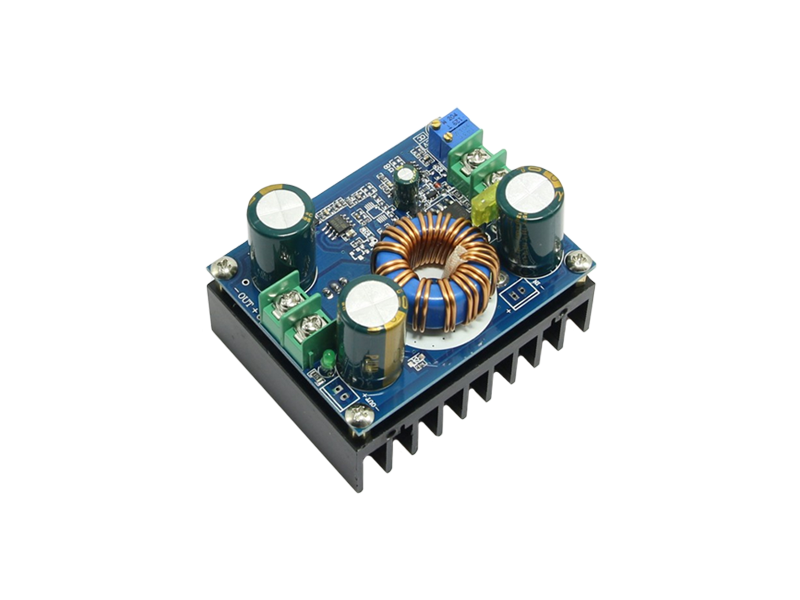

600W Adjustable Step-Up Boost Converter Module
600W Adjustable Step-Up Boost Converter Module
LKR 4,200.00
This module will help you to boost the voltage up to 12V ~ 60V 12A.
Please note use 50mm x 50mm cooling fan for bettery perfomance and protect from overheating damage.
Specifications
Current
Input Current: 16A MAX. (over 10A,please enhance heat dissipation,such as 5cm cooling fan)
Output Current: 12A Max. (over 10A,please enhance heat dissipation.)
Quiescent Current: 15mA (when 12V step up to 20V), if the output voltage is higher, the quiescent current will increase.)
Features
Short-circuit protection with 20A input fuse
Output feeding back protection for charging,the separate output diode is not required
Frequency
150KHz
Input Voltage
Input voltage 1:
12-60VDC (default range, for wide input voltage range
Applications)
Input voltage 2:
9-16VDC (for 3 lithium battery and 12V battery) , please do
not overrange
Length x Width x Height
76mm x 60mm x 56mm
Output Voltage
12V ~ 80VDC (continuously adjustable),
default output: 19VDC
Temperature Range
-40 to +85 °c (Use cooling fan for better performance and safety)
Weight
205g
