DC-DC Voltage Boost Converter 150W

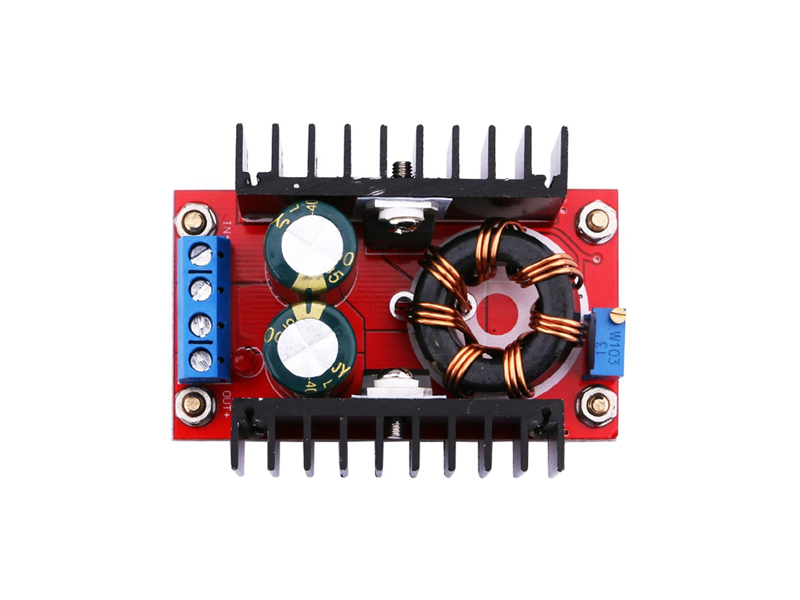

DC-DC Voltage Boost Converter 150W - Image 1

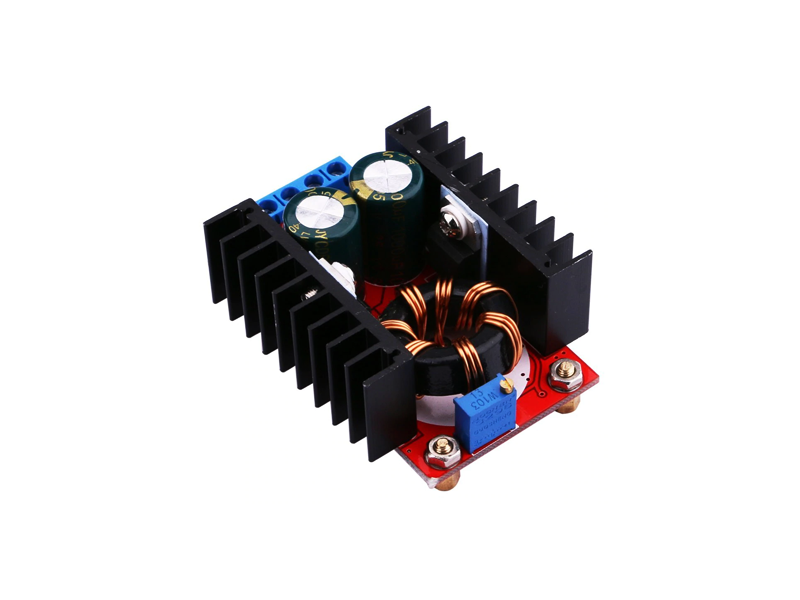

DC-DC Voltage Boost Converter 150W - Image 2

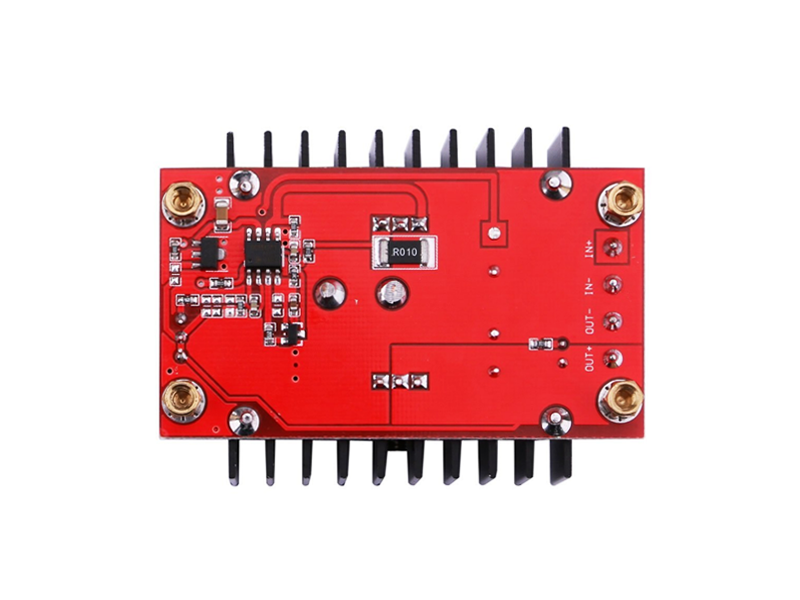

DC-DC Voltage Boost Converter 150W - Image 3
DC-DC Voltage Boost Converter 150W
DC-DC Voltage Boost Converter 150W
DC-DC Voltage Boost Converter 150W
LKR 800.00
Out of Stock

This is voltage boost (Step-up) module that can handle up 150W. you can use this for voltage boost in car and other projects. Please note output current will change due to Output voltage and input current.

Please note there isnt a reverse polarity protection. add a series diode to protect the module.

Specifications

Current
Input 10A (Max) Output 6A (Max)
Efficiency
Conversion efficiency: 94%
Input Voltage
DC 10V ~ 32V
Length x Width x Height
65mm x 56.5mm x 23mm
Output Voltage
DC 12V ~ 35V
Power
150W(Colling fan required if power is more than 100W)
Temperature Range
(-40)°C to +85°C
