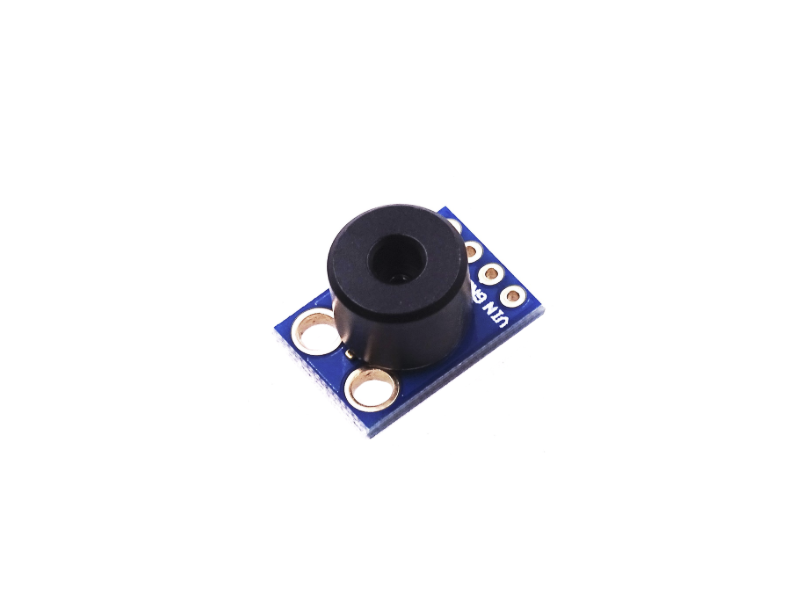

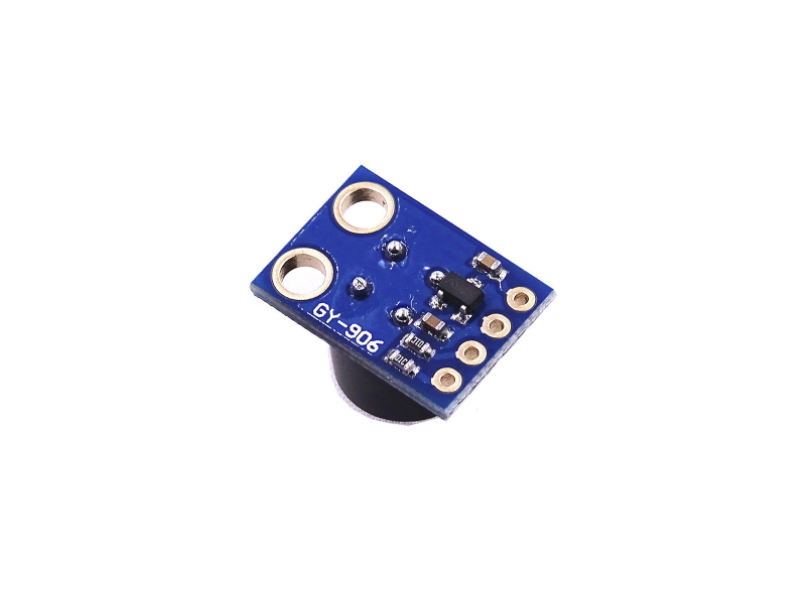

Contactless Temperature Sensor MLX90614ESF GY-906-BCC

LKR 3,500.00

Out of Stock

MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with , or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.

Specifications

Accuracy

High accuracy of 0.5°C

Features

Single and dual zone versions SMBus compatible digital interface Customizable PWM output for continuous reading Sleep mode for reduced power consumption

Interfaces

I2C interface

Operating Voltage

3.3V ~ 5V

Sensitivity

0.02°C

Temperature Range

Object temperature range -40ºC ~ 125 Ambient temperature and -70ºC ~ 382ºC
