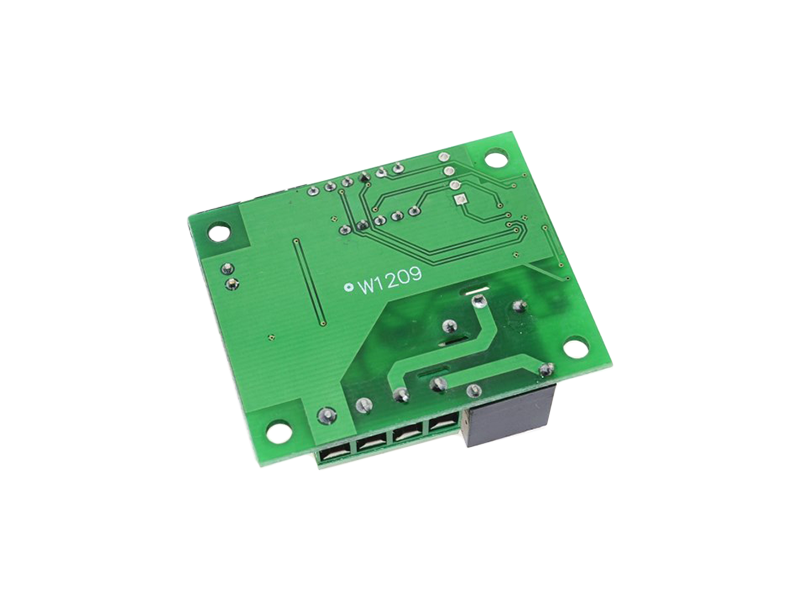

Temperature Control Module W1209

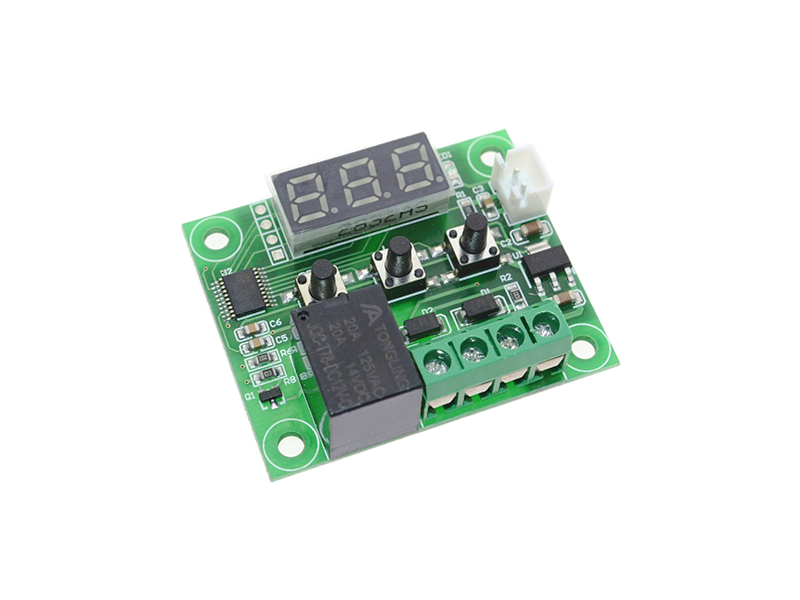

The W1209 is an incredibly low cost yet highly functional thermostat controller. With this module (HCTHER0006) you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The on board relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.

Note: This module uses on-board non-volatile memory to store changes made to its settings. Thefore any changes made will be saved even if power it removed from the module.

Specifications

Accuracy

0.1°C

Current

65mA

Functions

P0 Refrigeration, Heating Mode P1 Setting the Hysteresis P2 Maximum Temperature Setting Temperature P3 Minimum Temperature P4 Temperature Correction P5 Start Delay (unit: seconds) P6 Buzzer (this function is not valid) P8 Restore Factory Settings

Input

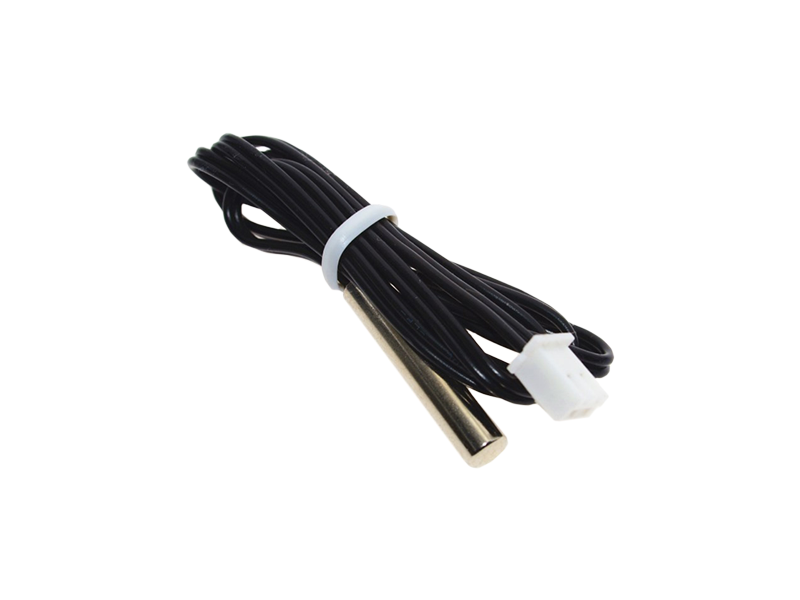

NTC 10K Water Proof Sensor

Length x Width x Height

49mm x 40mm x 16mm

Operating Voltage

12V

Output

2A Relay Contact

Response Time

0.5s

Temperature Range

-50°C ~ 110°C
