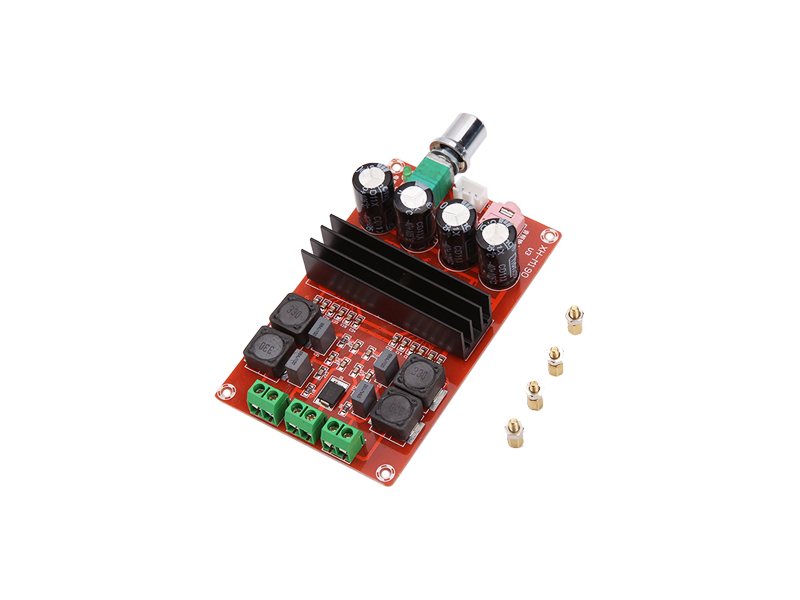

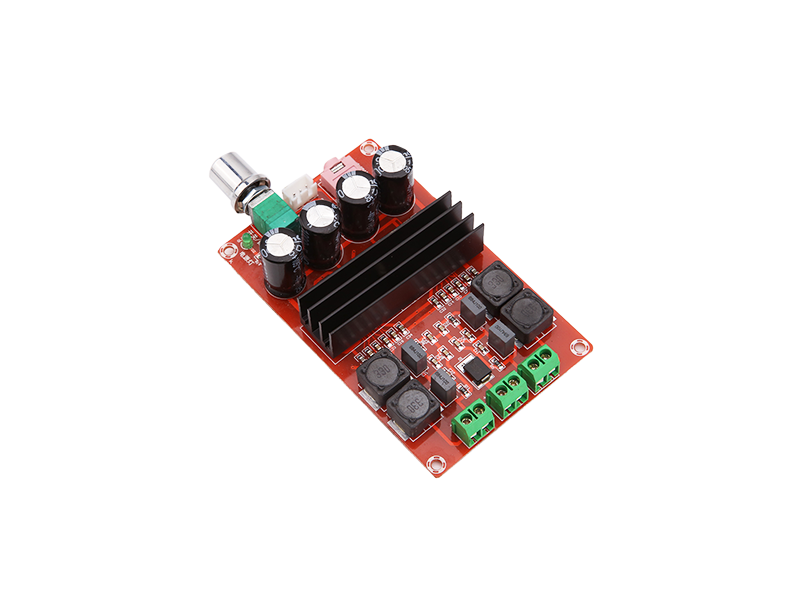

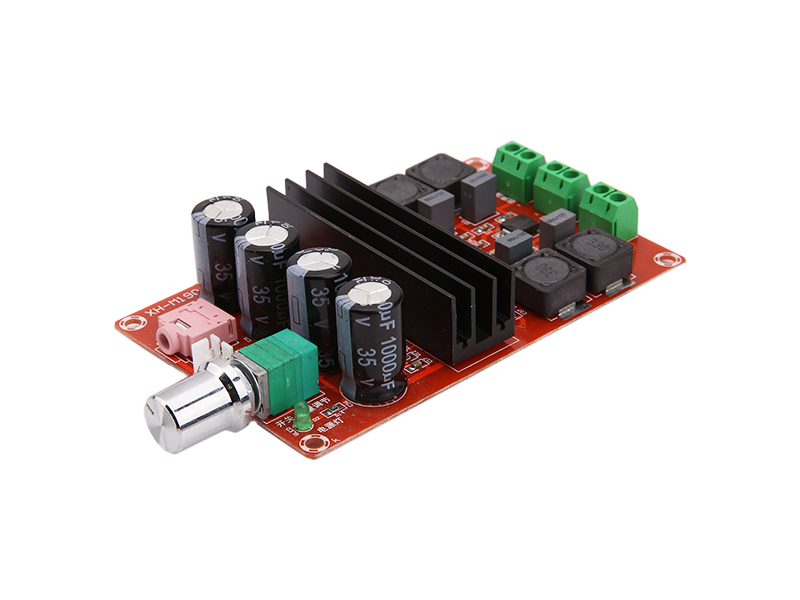

TPA3116 D2 Stereo Audio Amplifier Board 100Wx2

TPA3116 D2 Stereo Audio Amplifier Board 100Wx2 - Image 1
TPA3116 D2 Stereo Audio Amplifier Board 100Wx2 - Image 2
TPA3116 D2 Stereo Audio Amplifier Board 100Wx2 - Image 3
TPA3116 D2 Stereo Audio Amplifier Board 100Wx2
TPA3116 D2 Stereo Audio Amplifier Board 100Wx2
TPA3116 D2 Stereo Audio Amplifier Board 100Wx2
LKR 1,600.00

Use two new import TPA3116 amplifier chip, combined with nanotechnology in the field of digital zoom ahead, with advantages of clear sound quality, strong zoom capability, high efficiency, response parsing density . In the mature markets is a high-end amplifier board.This edition is finished plate, it can be used immediately. Connectting the power and sound you can experience digital music that can bring new experience.

Specifications

Current
5A(you can use with less than 5A, but performance will reduce due to voltage and current)
Frequency
14Hz ~ 100Kz
Impedance
4Ω - 8Ω
Input Voltage
12V ~ 24V
Length x Width x Height
105mm x 65mm x 23mm
Package
1 x TPA3116 D2 Stereo Audio Amplifier Board 100Wx2 4 x 10mm metal Spacers 4 x Nut 1 x Nut for Volume Controller 1 x Washer for Volume controller
Power
100W Per Channel ( Total 200W)
