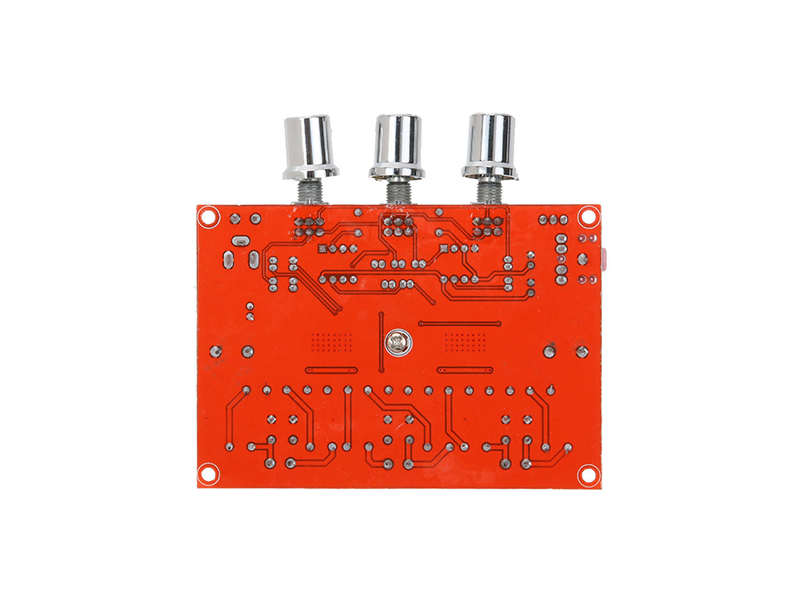

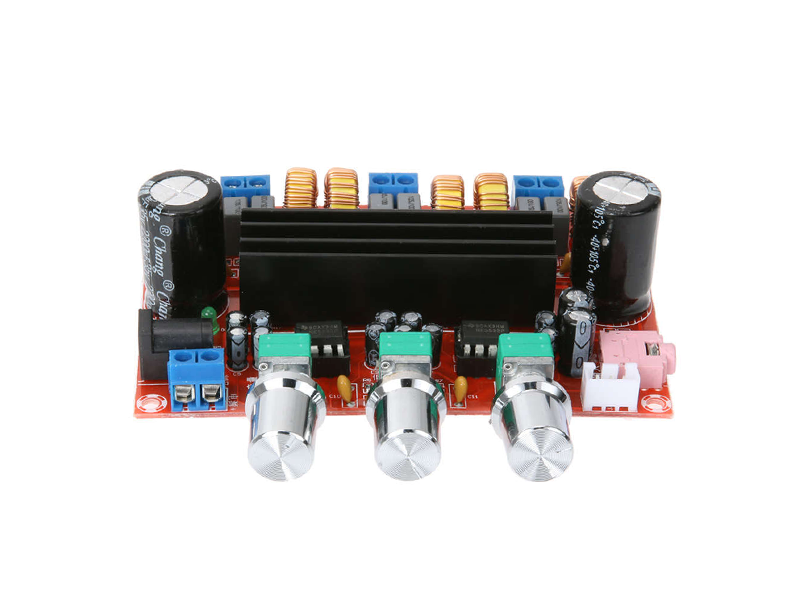

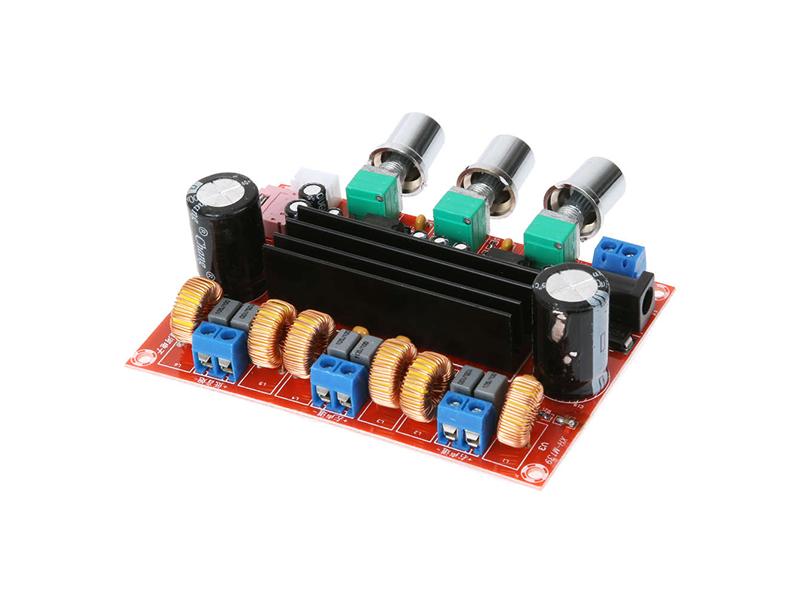

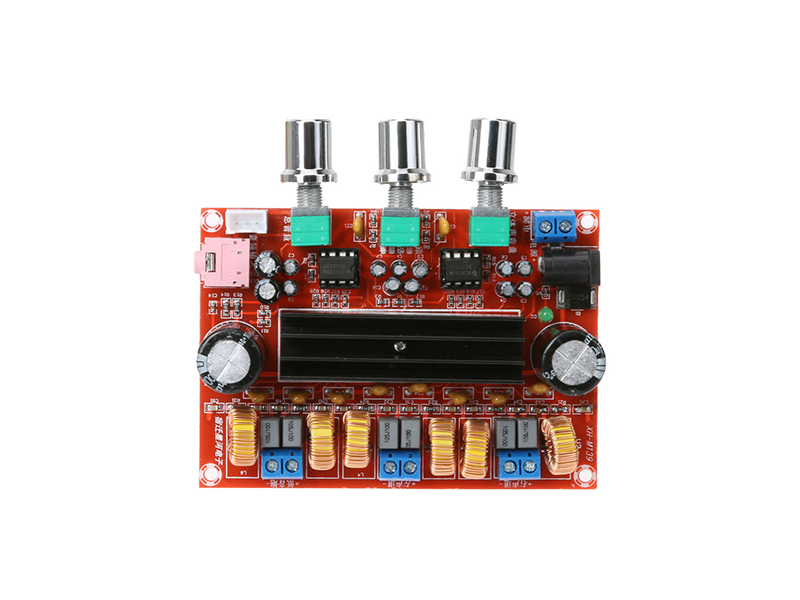

TPA3116 2.1 Digital Subwoofer Audio Amplifier Board

TPA3116 2.1 Digital Subwoofer Audio Amplifier Board - Image 1
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board - Image 2
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board - Image 3
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board - Image 4
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board - Image 5
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board
TPA3116 2.1 Digital Subwoofer Audio Amplifier Board
LKR 2,000.00

This is a perfect sub-woofer amplifier for your own project.  This amplifier board adopts two imported TPA3116 digital amplifier chip as the core, one piece as left and the right channel power amplifier, other piece as pre-bridge driver with NE5532 sub-woofer, with a small, high efficiency, high power.

Specifications

Frequency
14Hz - 100kHz
Impedance
4ohms - 8ohm
Input
Audio - 3.5mm Audio Stereo Socket 3 wire Connector (Left, Right, Ground) Power 5.5mm DC Female Base 2 way Terminal Connector
Input Voltage
12V ~ 24V
Length x Width x Height
100mm x 92mm x 28mm
Output
50W * 2 Surround Speakers (Right + Left) 100W * 1 Sub-woofer
Package
1 x TPA3116 2.1 Digital Subwoofer Audio Amplifier Board 1 x Screws, Nut and Bolt Packet
Special Features
Surround Speaker Volume Control Bass Controller For Sub-woofer Master Volume
Weight
118g
