PAM8403 Mini Amplifier Module 2x3W

PAM8403 Mini Amplifier Module 2x3W - Image 1
PAM8403 Mini Amplifier Module 2x3W - Image 2
PAM8403 Mini Amplifier Module 2x3W - Image 3

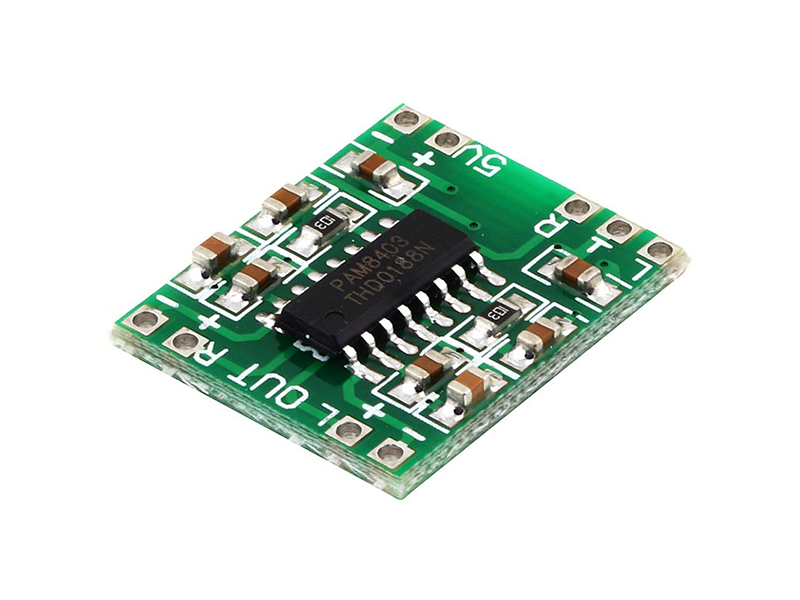

PAM8403 Mini Amplifier Module 2x3W

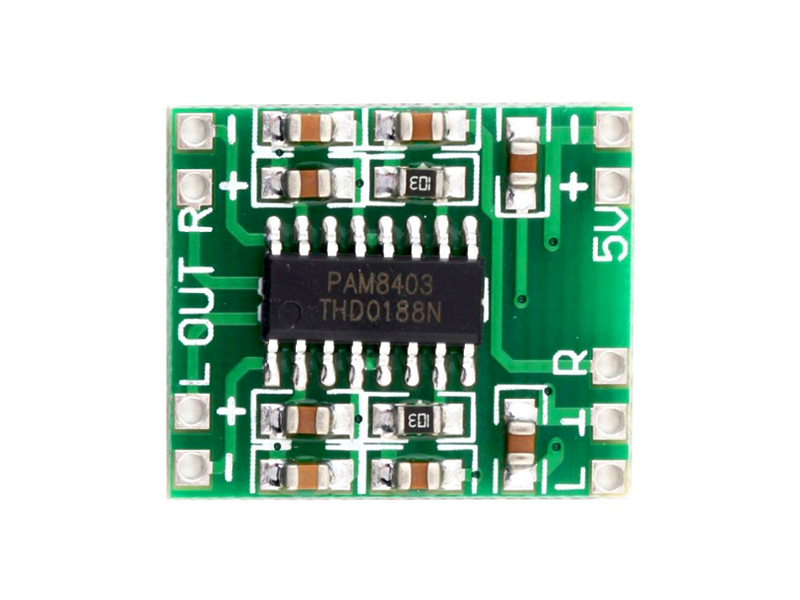

PAM8403 Mini Amplifier Module 2x3W Top

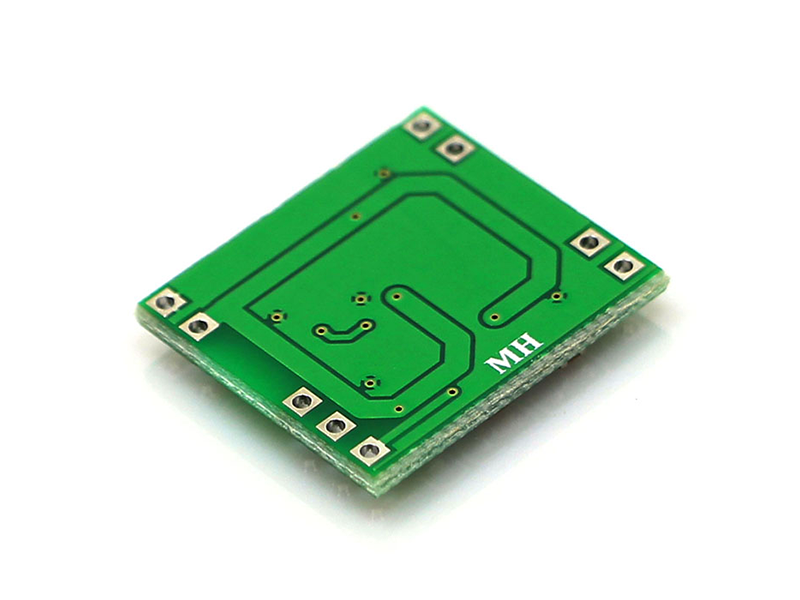

PAM8403 Mini Amplifier Module 2x3W Bottom
LKR 80.00
LKR 100.00
20% OFF

The PAM8403 is a 3W+3W, class-D stereo audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new
filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.

Specifications

Class
Class D
Current
300mA
Length x Width
19mm x 21mm
Operating Voltage
2.5V ~ 5V
Power
3W per Channel (3W 8ohms, 4ohms)
