Arduino Mega 2560 Compatible

  1. Shop
  2. Development Boards
  3. Arduino
  4. Arduino Compatible Boards
  5. Arduino Mega 2560 Compatible
Arduino Mega 2560 Compatible - Image 1
Arduino Mega 2560 Compatible - Image 2

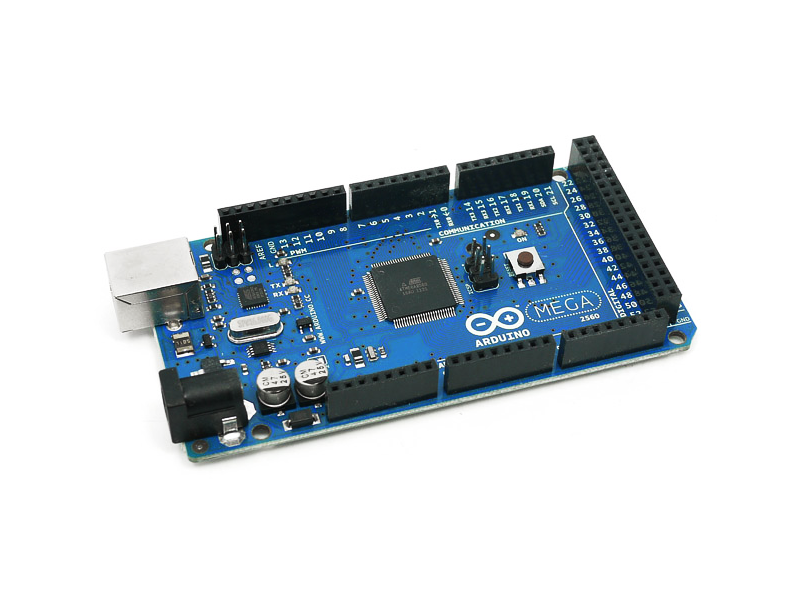

Arduino Mega Compatible

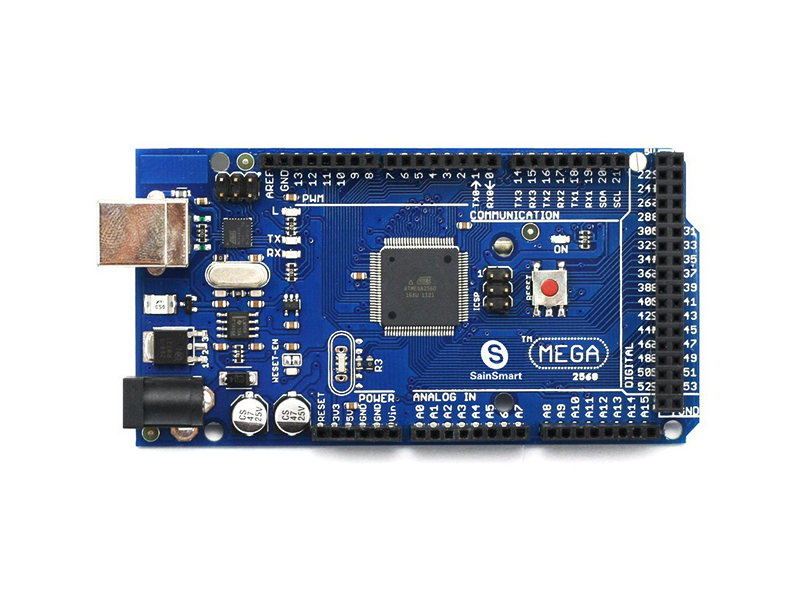

Arduino Mega Compatible Top
Arduino Mega 2560 Compatible - Thumb 1
Arduino Mega 2560 Compatible - Thumb 2
LKR 4,000.00
Out of Stock
View Product Details

The Mega 2560 is a microcontroller board based on the Atmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

Specifications

Clock Speed
16 MHz
DC Current for 3.3V Pin
50 mA
DC Current per I/O Pin
20 mA
EEPROM
4 KB
Flash Memory
256 KB of which 8 KB used by bootloader
I/O Pins
Digital I/O Pins - 54 (of which 15 provide PWM output) Analog Input Pins - 16
Input Voltage
Recommended 7-12V Limit 6-20V
Length x Width
101.52 mm x 53.3 mm mm
Microcontroller
ATmega2560
Operating Voltage
5 V
Package
Arduino Mega 2560 Compatible Board Data Cable
SRAM
8 KB
Weight
37 g
