Arduino Leonardo Compatible

  1. Shop
  2. Development Boards
  3. Arduino
  4. Arduino Compatible Boards
  5. Arduino Leonardo Compatible

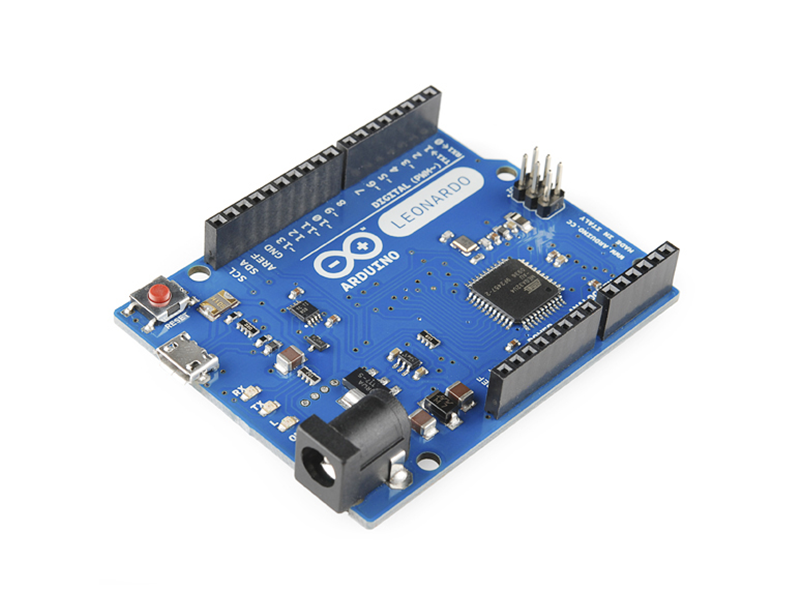

Arduino Leonardo Compatible - Image 1
Arduino Leonardo Compatible - Image 2
Arduino Leonardo Compatible - Image 3
Arduino Leonardo

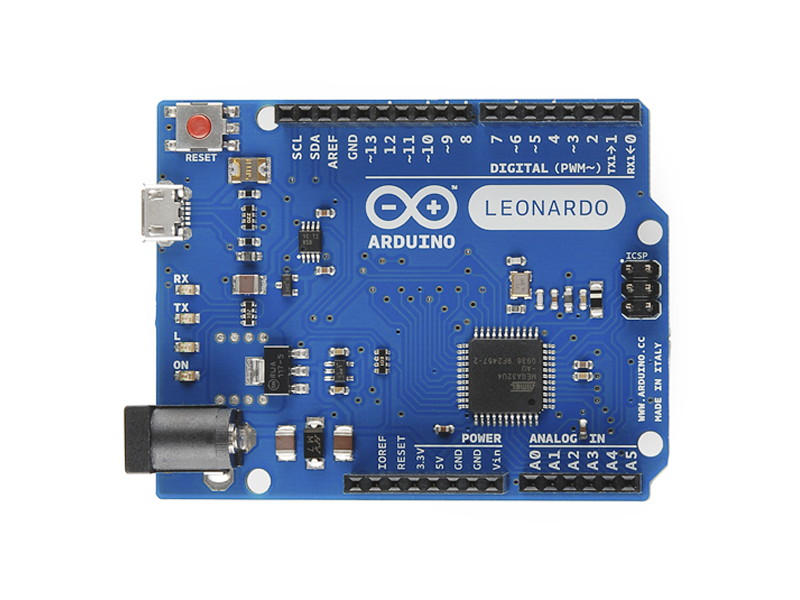

Arduino Leonardo Top

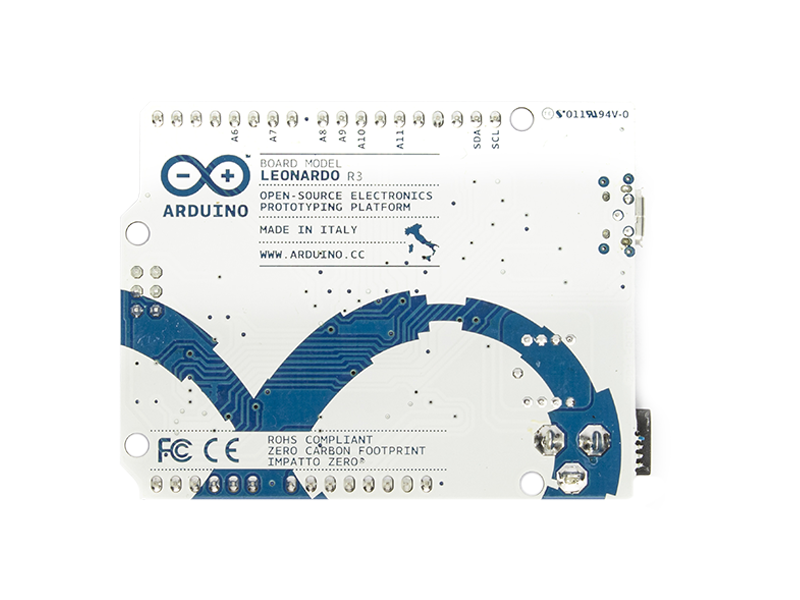

Arduino Leonardo Bottom
Arduino Leonardo Compatible - Thumb 1
Arduino Leonardo Compatible - Thumb 2
Arduino Leonardo Compatible - Thumb 3
LKR 1,900.00
Out of Stock
View Product Details

The Arduino Leonardo is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Specifications

Clock Speed
16 MHz
Current
DC Current per I/O Pin - 40 mA DC Current for 3.3V Pin - 50 mA
EEPROM
1 KB (ATmega32u4)
Flash Memory
32 KB (ATmega32u4) of which 4 KB used by bootloader
I/O Pins
Digital I/O Pins - 20(PWM Channels 7) Analog Input Pins - 12
Input Voltage
Recommended 7-12V Limits 6-20V
Length x Width
68.6 mm x 53.3 mm
Microcontroller
ATmega32u4
Operating Voltage
5 V
Package
Arduino Leonardo Compatible Board Data Cable
SRAM
2.5 KB (ATmega32u4)
Weight
20 g
