Arduino Pro Mini Compatible

Arduino Pro Mini Compatible - Image 1
Arduino Pro Mini Compatible - Image 2
Arduino Pro Mini Compatible - Image 3

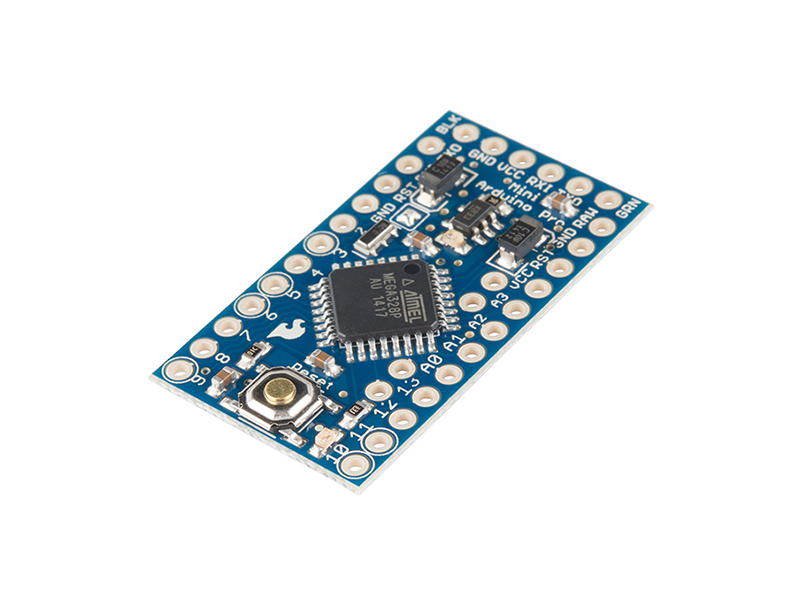

Arduino Pro Mini

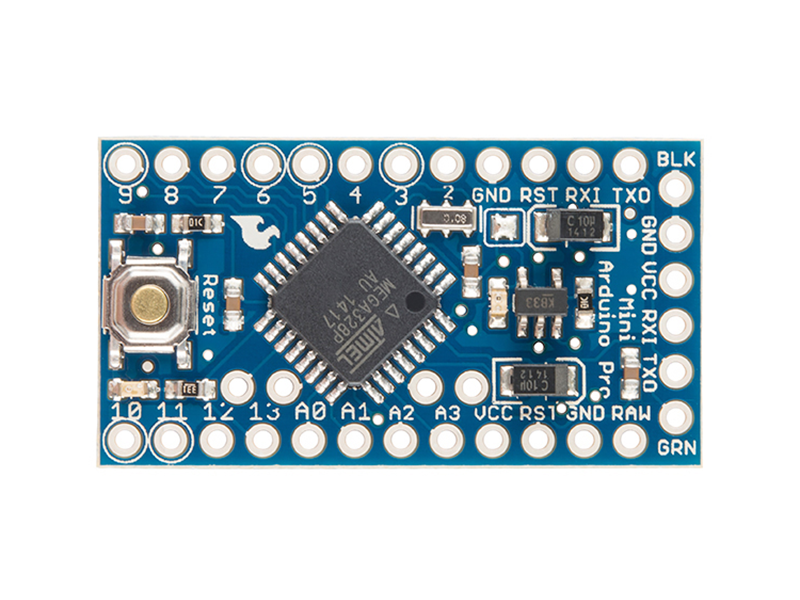

Arduino Pro Mini Top

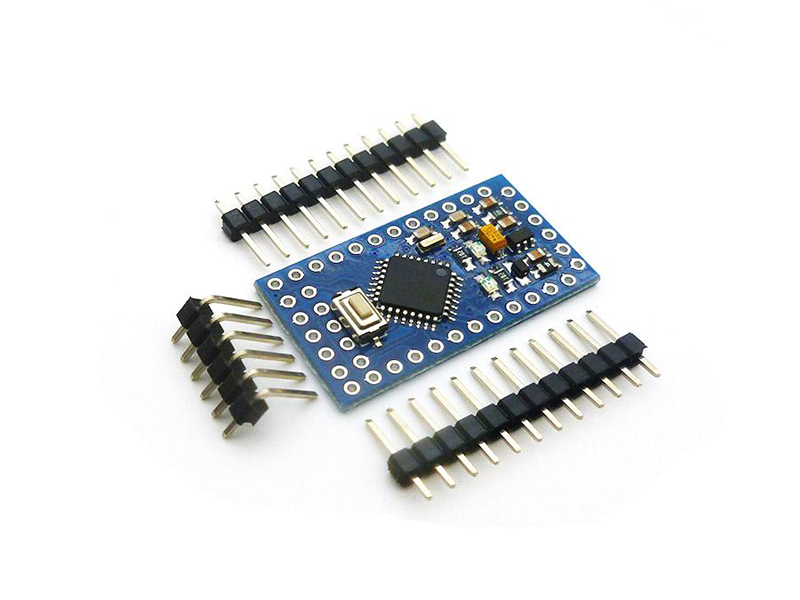

Arduino Pro Mini With Pin Headers
LKR 1,000.00

The Arduino Pro Mini is a microcontroller board based on the Atmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board. The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

Specifications

Clock Speed
16 MHz
DC Current per I/O Pin
40 mA
EEPROM
1 KB
Flash Memory
32KB of which 2 KB used by bootloader
I/O Pins
Digital I/O Pins - 14 Analog Input Pins - 6 PWM Pins - 6 UART - 1 SPI - 1 I2C - 1
Microcontroller
ATmega328
Operating Voltage
5 - 12 V
SRAM
2 KB
