CD4000 Dual 3-Input NOR Gate + Inverter

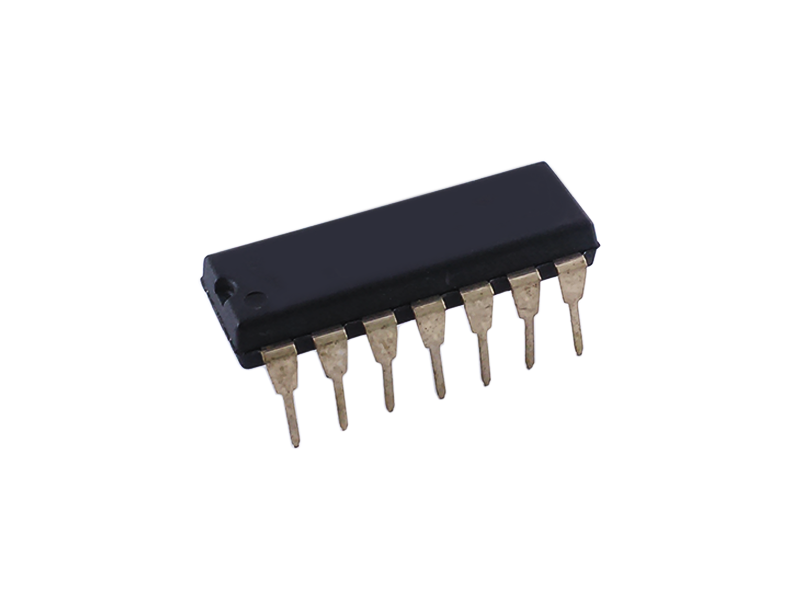

CD4000 Dual 3-Input NOR Gate + Inverter - Image 1
CD4000 Dual 3-Input NOR Gate + Inverter

The HEF4000B provides the positive dual 3-input NOR function. A single stage inverting function with standard output performance is also accomplished. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance.

CD4000 Dual 3-Input NOR Gate + Inverter Datasheet
