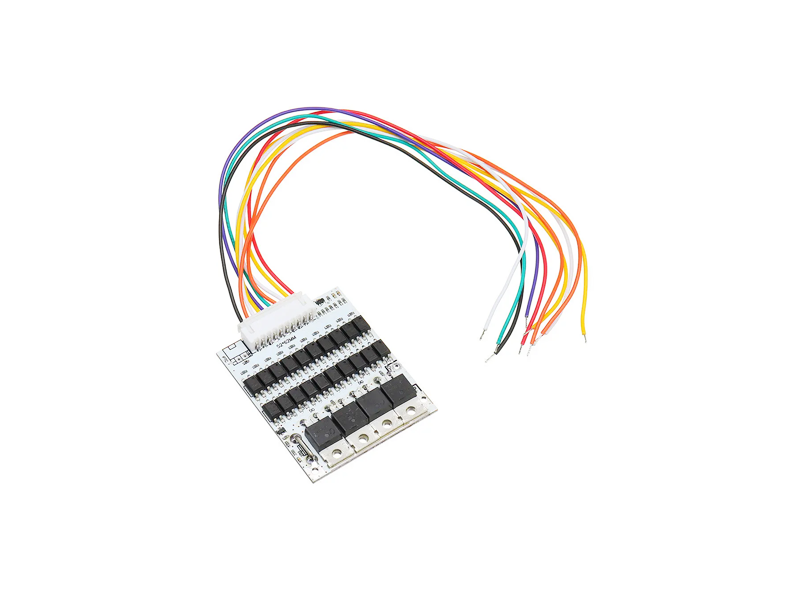

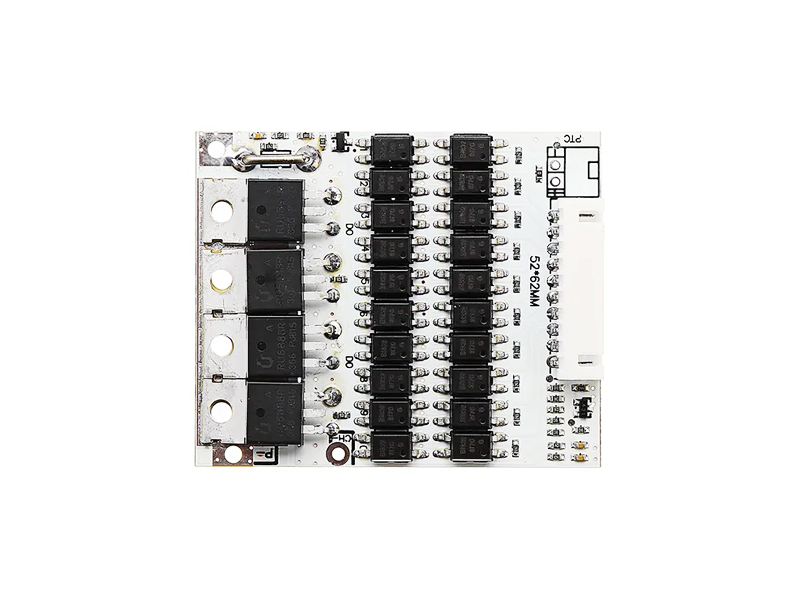

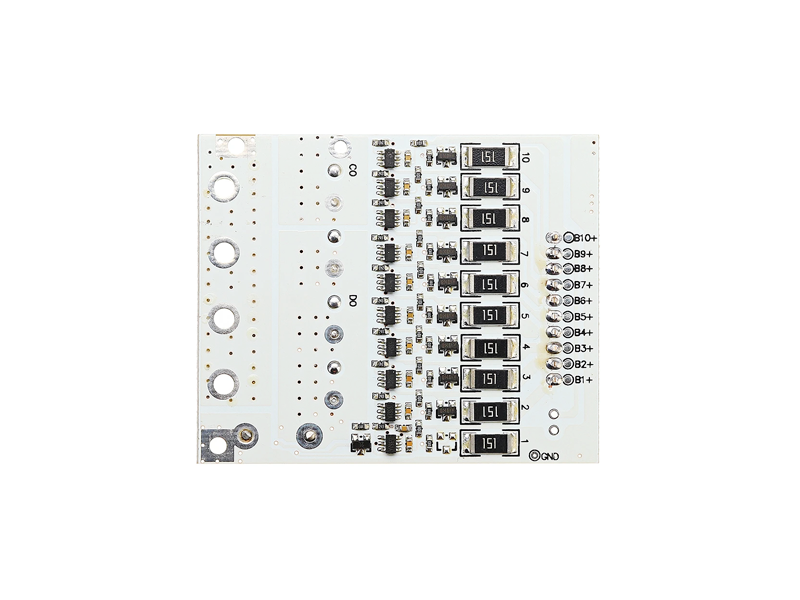

10S 36V 40A BMS Board - Senith Electronics

This type of BMS mostly used in modern electric motor bikes. you can use this module for replacement for your bicycle BMS.

Specifications

Current

Output Current - 40A Charging Current - ≤10A

Length x Width

53mm x 63mm

Output Voltage

36V (42V Max)

Special Features

Single over-charge protection voltage 4.25V ± 0.05V (4.20-4.35V/0.05V per upgrade) Single over-charge recovery voltage: 4.10-4.00V Single over-discharge protection voltage: 2.50V ± 0.1V (2.50-3.0V/0.05V per upgrade) Single over-discharge recovery voltage: 2.80V ± 0.1V Short circuit protection time: 500MS

Temperature Range

Temperature protection: 55/65/75 degrees
