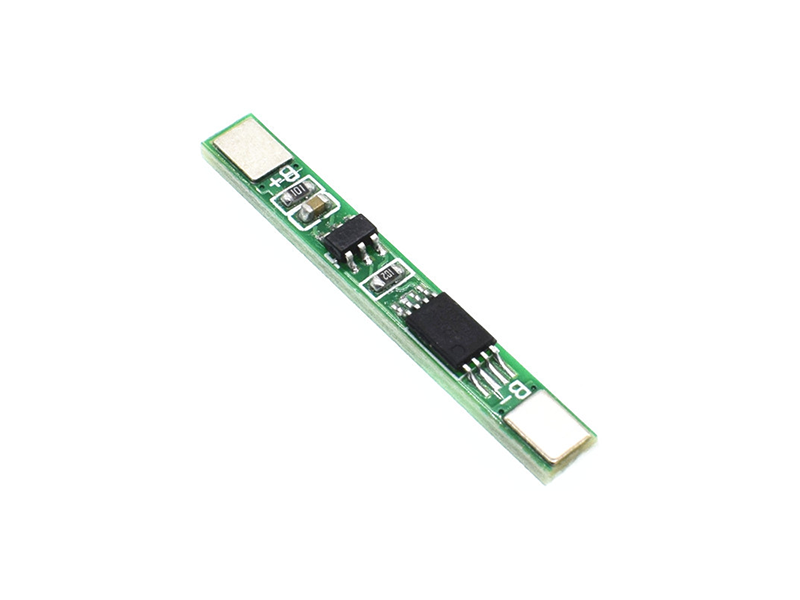

1S 3.7V 3A Li-ion PCM BMS Battery Protection Board

  1. Shop
  2. Modules
  3. Chargers
  4. 1S 3.7V 3A Li-ion PCM BMS Battery Protection Board
1S 3.7V 3A Li-ion PCM BMS Battery Protection Board - Image 1
1S 3.7V 3A Li-ion BMS PCM Battery Protection Board
1S 3.7V 3A Li-ion PCM BMS Battery Protection Board - Thumb 1
LKR 80.00
Out of Stock
View Product Details

This module help you to protect explosion of the Li-ion battery. short protection over-current protection will protect you batteries and devices.

Specifications

Current
Maximal continuous charging current : 2A Maximal continuous Discharging current : 2A Over current protection : 3A
Features
1. High-accuracy voltage detection circuit. 2. Terminal of the charger using high voltage device. 3. Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit). 4. MOS transistor can control the battery charge and discharge.
Length x Width x Height
40mm x 4mm x 3mm
Voltage
Over charge voltage : 4.25 (±0.05V) Over charge release voltage : 4.23 (±0.05V) Over discharge voltage : 2.54 (±0.1V)
Weight
10g
