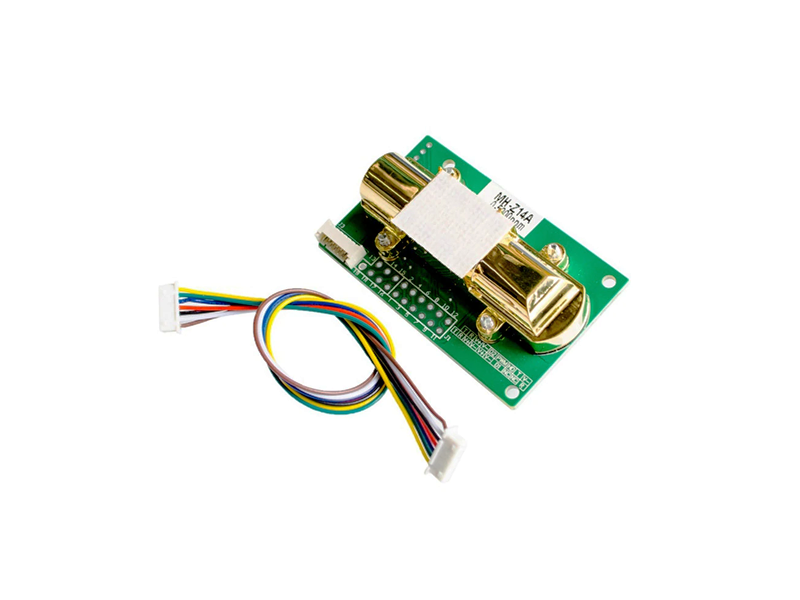

Co2 Gas Sensor NDIR MH-Z14A

Co2 Gas Sensor NDIR MH-Z14A - Image 1
Co2 Gas Sensor NDIR MH-Z14A - Image 2
Co2 Gas Sensor NDIR MH-Z14A
Co2 Gas Sensor NDIR MH-Z14A
LKR 4,600.00

MH-Z14 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependant, long life. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. MH-490W integrate sophisticated infrared absorption gas detection technology, sophisticated light transmission design and sophisticated circuit design.

Specifications

Accuracy
± (50ppm + 3% reading value)
Current
Average current <60mA (@5V input) Peak current 150 mA (@5V input)
Humidity Range
0 ~ 95% RH
Interfaces
Serial port (UART) (TTL level) PWM Analog output(DAC), 0.4-2V
Length x Width x Height
57mm × 35mm × 15mm
Operating Voltage
4.5V ~ 5.5V
Response Time
Response Time - T90 <120s Warm up - 3min
Sensitivity
0 - 5000ppm
Temperature Range
0 ~ 50 C
Weight
17g
