Arduino Mega 2560 Pro Mini CH340G

Arduino Mega 2560 Pro Mini CH340G - Image 1
Arduino Mega 2560 Pro Mini CH340G - Image 2
Arduino Mega 2560 Pro Mini CH340G
Arduino Mega 2560 Pro Mini CH340G
LKR 1,700.00

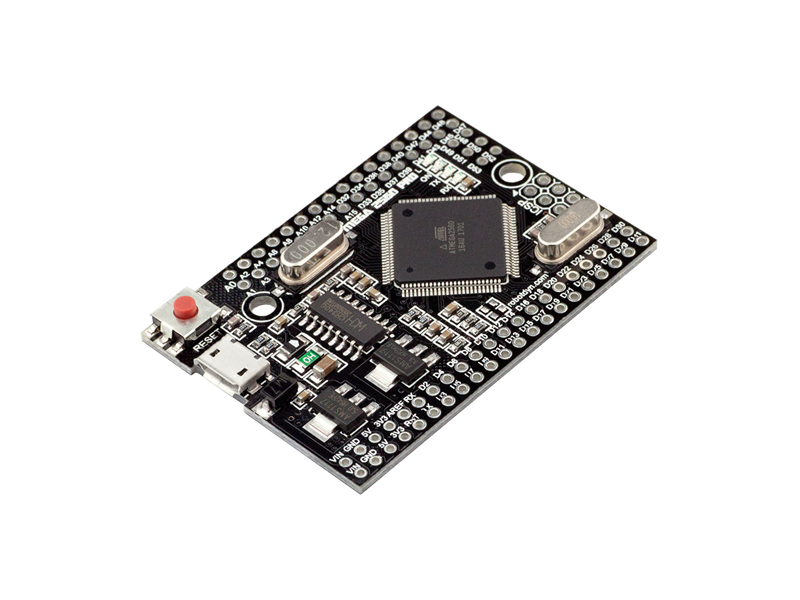

The Mega Pro MINI CH340G / ATmega2560 board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The board is compatible with Arduino Mega 2560. The board has a compact form factor of 38X52mm and is an excellent solution for developing projects based on ATmega2560.

The Mega Pro Mini functionalities are identical to the Arduino Mega 2560. Even though it is an Embed board, it is solid stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonators is present on the board. The board doesn’t have a USB interface. In order to connect Pro MINI to a PC you have to use USB-TTL converter. It can be powered through the power PIN Vin). The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.


Specifications

Clock Speed
16MHz
DC Current per I/O Pin
50mA
EEPROM
4Kb
I/O Pins
Digital Pins - 54 Analaog Pins - 16
Input Voltage
Voltage in (Vin) pin - 7V ~ 15V Voltage - 5V
Interfaces
CH340
Length x Width
38mm x 52mm
Memory
256kb
Microcontroller
ATmega2560
Output Voltage
5V
SRAM
8Kb
