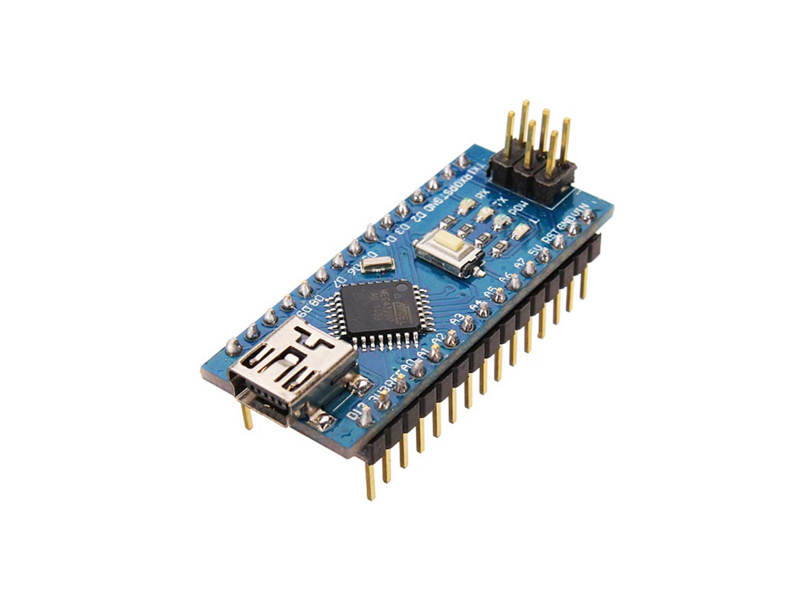

Arduino Nano Chinese

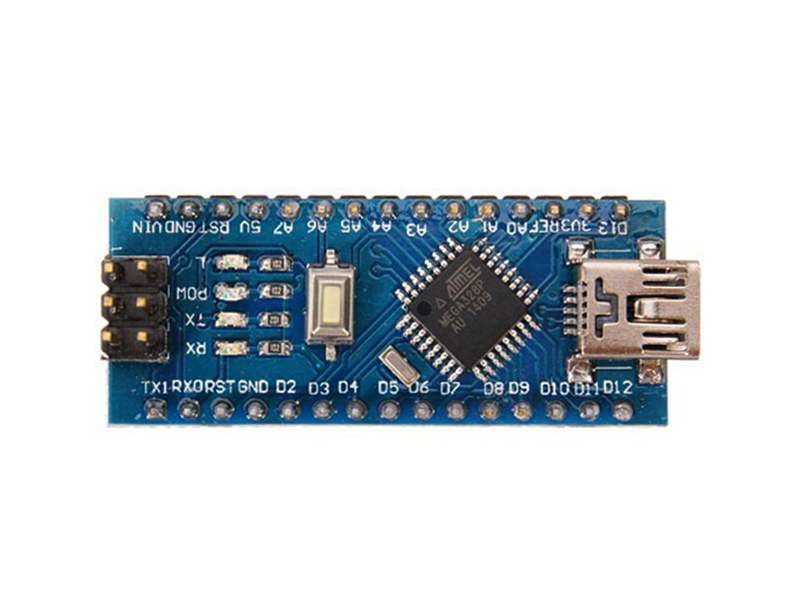

Arduino Nano Chinese Top

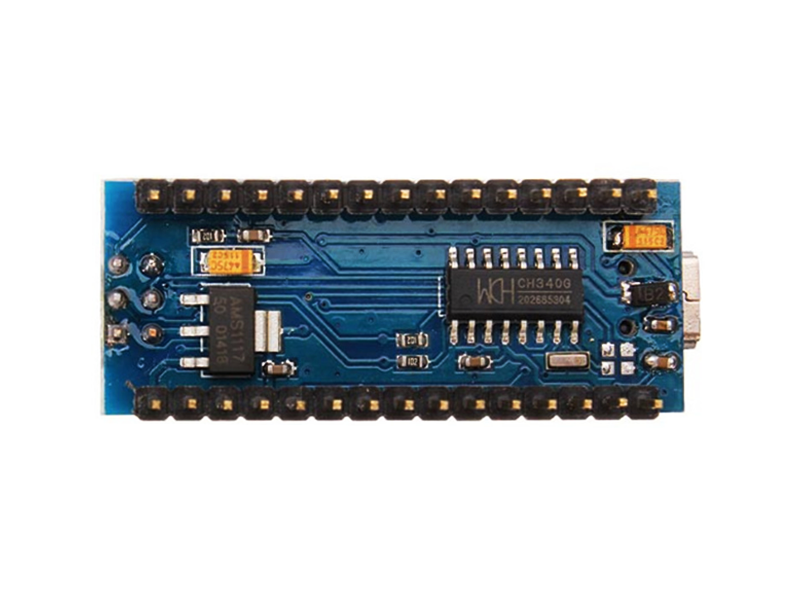

Arduino Nano Chinese Bottom
Arduino Nano Chinese with Cable - Thumb 1
Arduino Nano Chinese with Cable - Thumb 2
Arduino Nano Chinese with Cable - Thumb 3
LKR 1,050.00
View Product Details

The Arduino Nano Chinese Version is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Specifications

Clock Speed
16 MHz
DC Current per I/O Pin
40 mA
EEPROM
1 KB
Flash Memory
32 KB (ATmega328) of which 2 KB used by bootloader
I/O Pins
14 (of which 6 provide PWM output) 8 Analog Input Pins
Input Voltage
Recommended - 7V~12 V Llimits - 6V~20 V
Length x Width
45 mm x 18 mm
Operating Voltage
5 V
Package
Arduino Nano Chinese Board
SRAM
2 KB
