Nema 17 Size 17HS4023 Stepper Motor

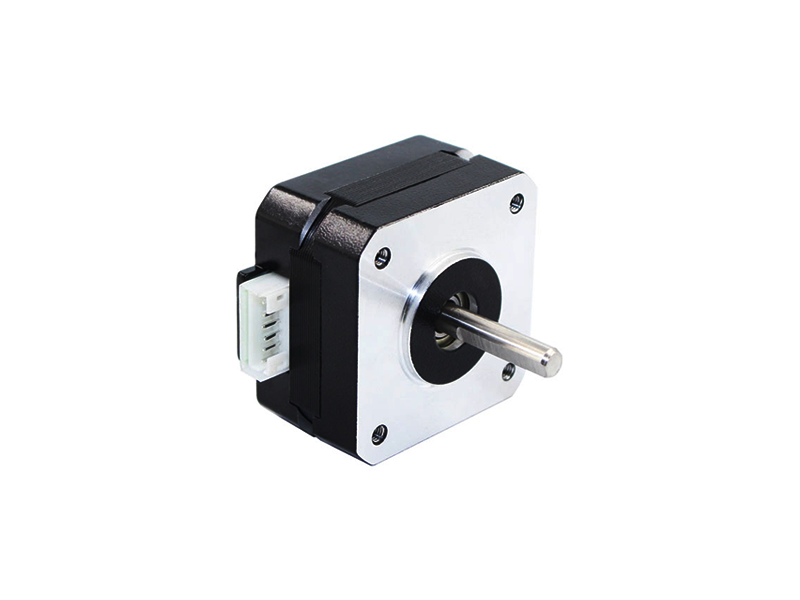

Nema 17 Size 17HS4023 Stepper Motor - Image 1

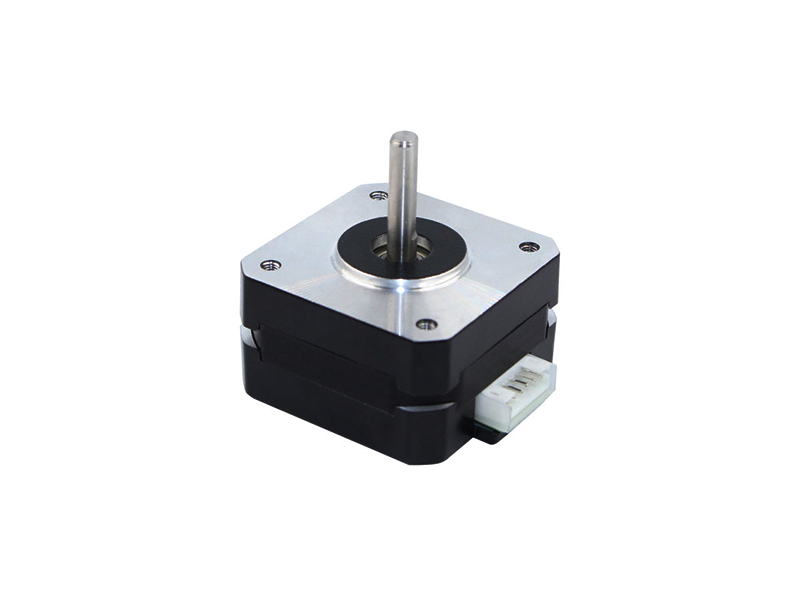

Nema 17 Size 17HS4023 Stepper Motor - Image 2

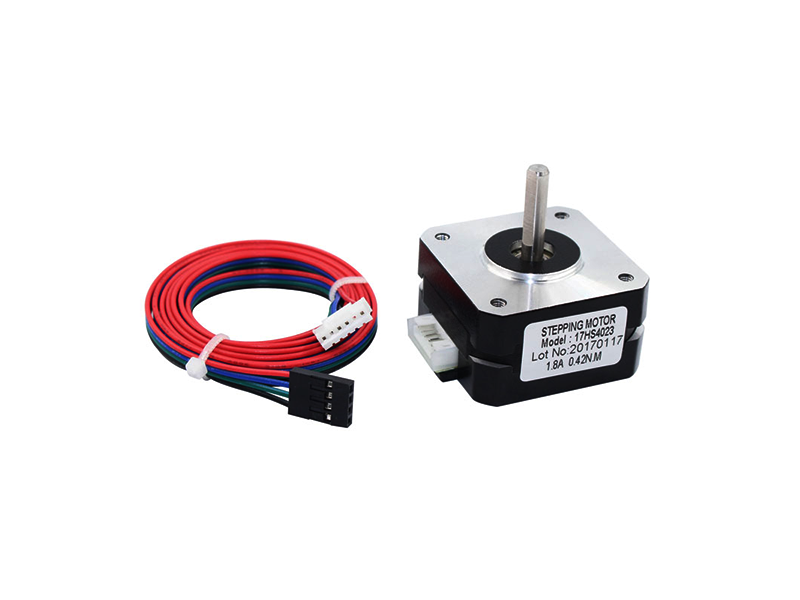

Nema 17 Size 17HS4023 Stepper Motor - Image 3
Nema 17 Size 17HS4023 Stepper Motor
Nema 17 Size 17HS4023 Stepper Motor
Nema 17 Size 17HS4023 Stepper Motor
LKR 1,650.00

This is a nema 17 size stepper motor for 3d printers and robotics projects. you can easily control any movement step by step with minimum 1.8 degree rotation.

Specifications

Angle
1.8 ± 5% / Step
Communication
4 wires / 2 Phase
Current
0.7 A / Phase
Impedance
Resistance: 4.0 ± 10% Ω / Phase Inductance: 3.2 ± 20% mH / Phase
Length x Width x Height
42mm x 42mm x 23mm
Operating Voltage
12V
Shaft Diameter
5mm
Shaft Length
21mm
Torque
14 N/cm
