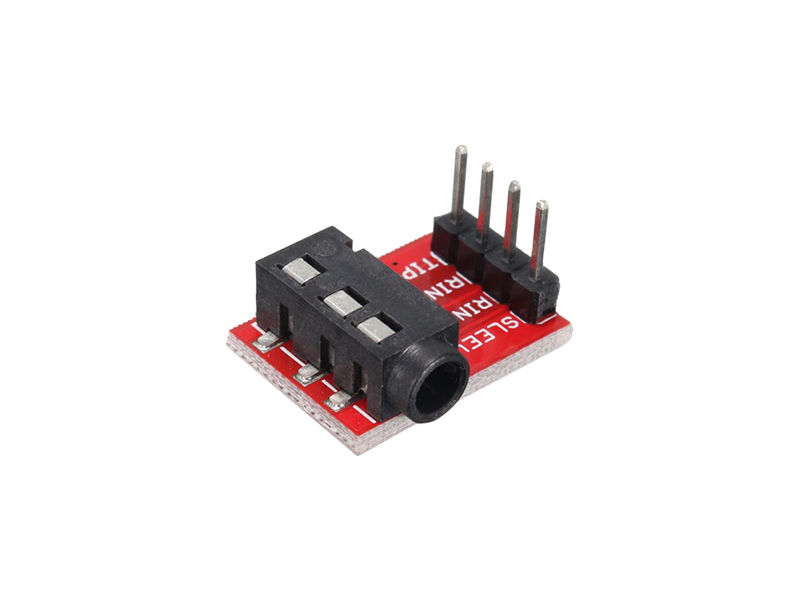

3.5mm TRRS Socket Expansion Module - Image 1

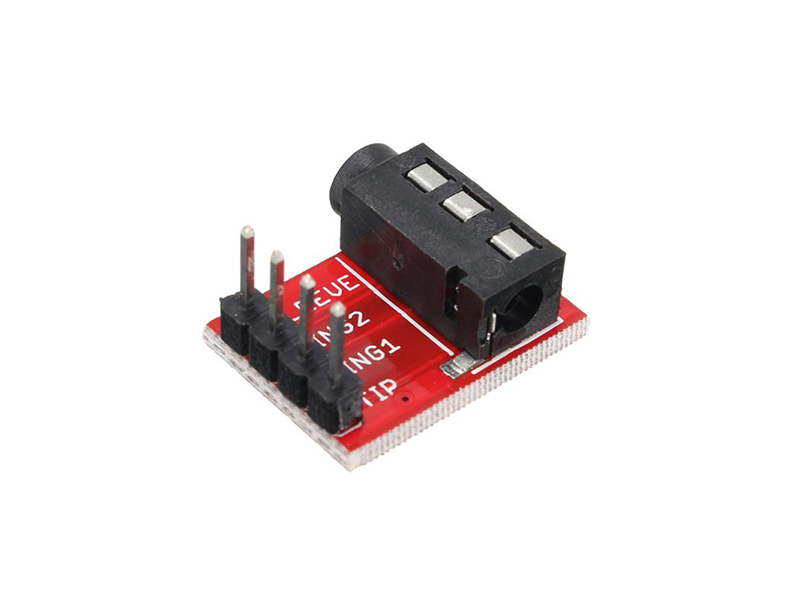

3.5mm TRRS Socket Expansion Module - Image 2

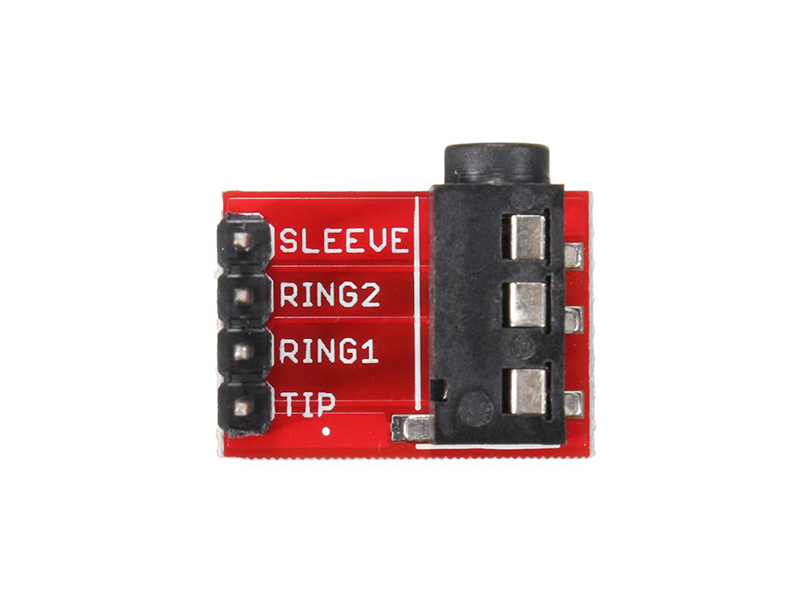

3.5mm TRRS Socket Expansion Module - Image 3

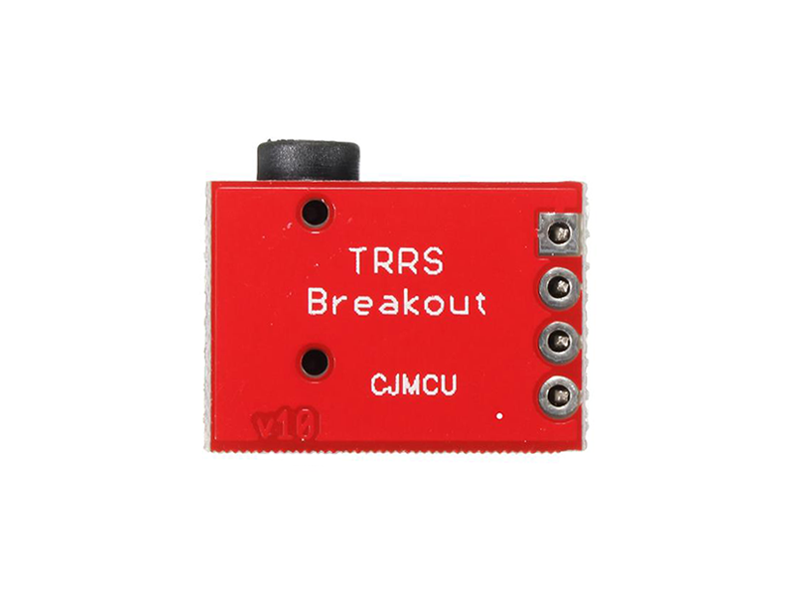

3.5mm TRRS Socket Expansion Module - Image 4
3.5mm TRRS Socket Expansion Module
3.5mm TRRS Socket Expansion Module
3.5mm TRRS Socket Expansion Module
3.5mm TRRS Socket Expansion Module
3.5mm TRRS Socket Expansion Module - Thumb 1
3.5mm TRRS Socket Expansion Module - Thumb 2
3.5mm TRRS Socket Expansion Module - Thumb 3
3.5mm TRRS Socket Expansion Module - Thumb 4
LKR 100.00
View Product Details

TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1" spaced header.

Specifications

Audio
3.5mm 4 layer TRSS Stereo Socket
Compatible
Stereo output + Microphone Devices Stereo Output + Video Devices Data transfer Devices
Length x Width
17mm x 12mm
Material
Plastic Metal
