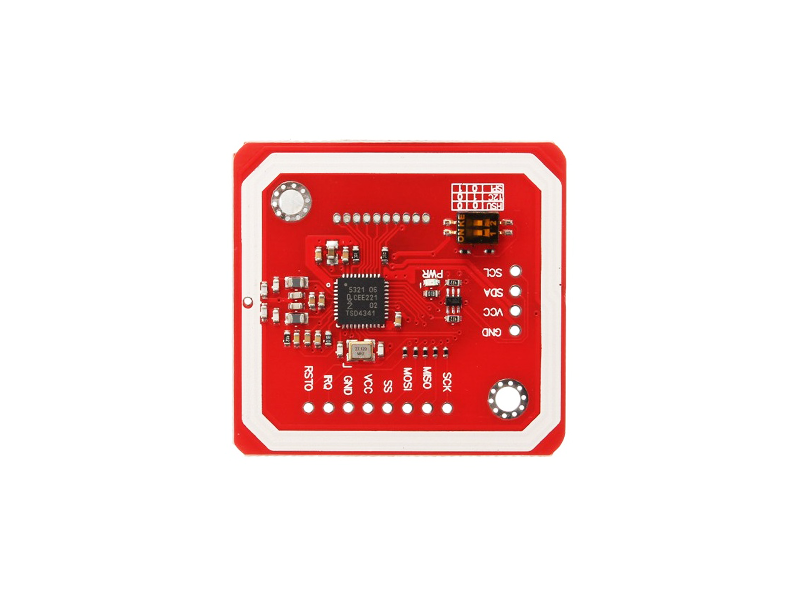

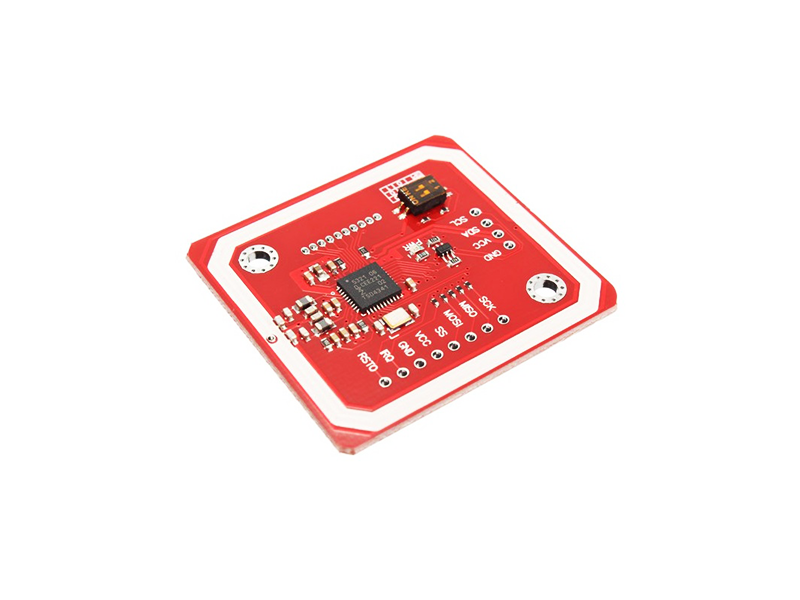

PN532 NFC RFID Reader Module - Senith Electronics

The PN532 is the most popular NFC chip, and is what is embedded in pretty much every phone or device that does NFC. It can pretty much do it all, such as read and write to tags and cards, communicate with phones (say for payment processing), and ‘act’ like a NFC tag. If you want to do any sort of embedded NFC work, this is the chip you’ll want to use!

Specifications

Current

Hard-Power-Down mode (1 µA typical) Soft-Power-Down mode (22 µA typical)

Distance Range

Typical operating distance in NFCIP-1 mode up to 50 mm depending on antenna size, tuning and power supply Typical operating distance in ISO/IEC 14443A/MIFARE or FeliCa card emulation mode of approximately 100 mm depending on antenna size, tuning and external field strength

Interfaces

SPI interface I²C interface High-speed UART

Length x Width

43mm x 40mm

Memory

ROM - 40 KB RAM - 1 KB

Operating Voltage

2.7V ~ 5.5V

Package

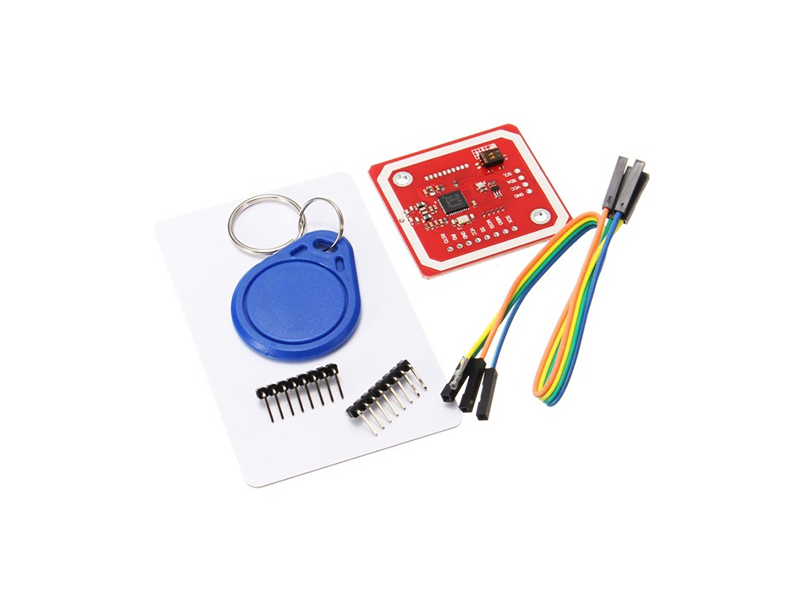

1 x PN532 NFC RFID Reader Module 1 x RFID S50 Card 1 x S50 Key-Ring 1 x Connecting Male headers

Speed

Transfer Speed at 212 kbit/s and 424 kbit/s
