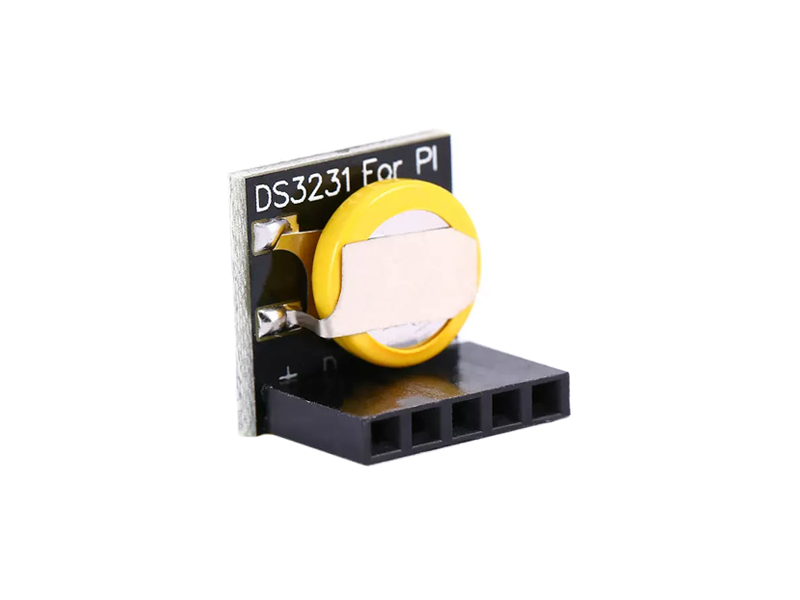

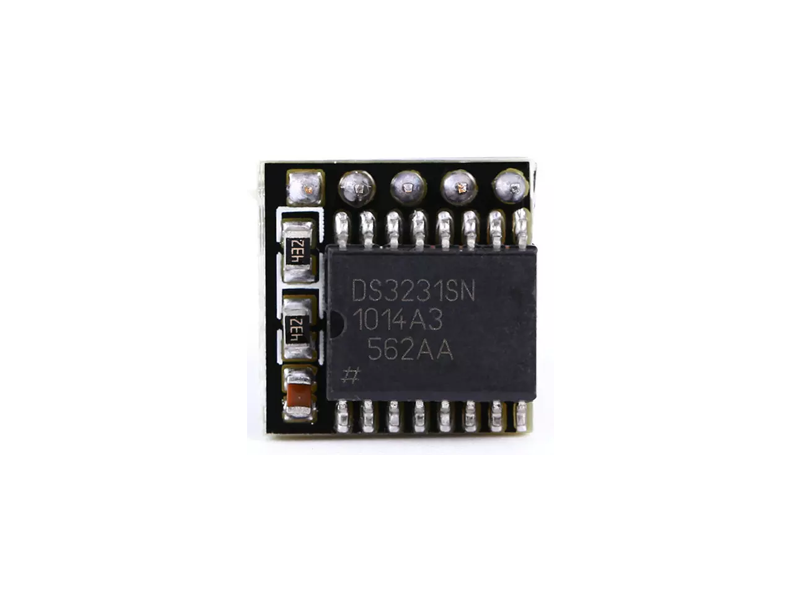

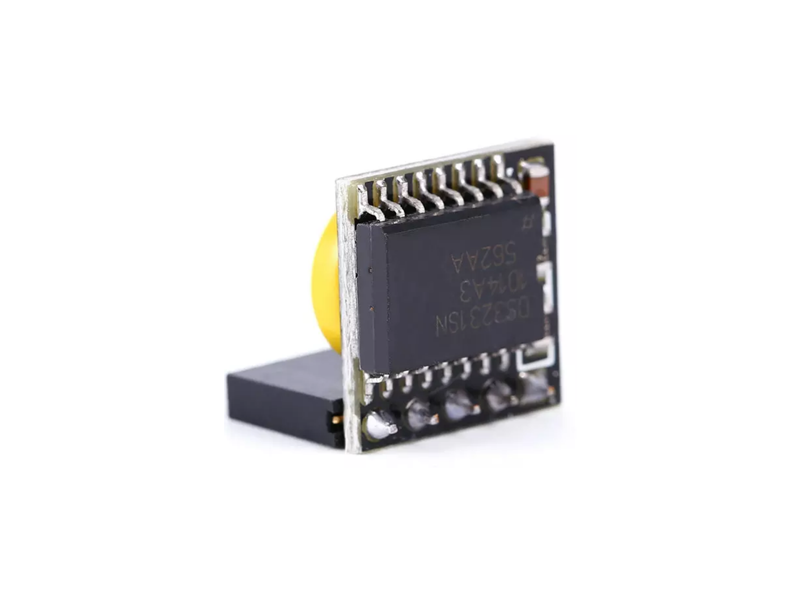

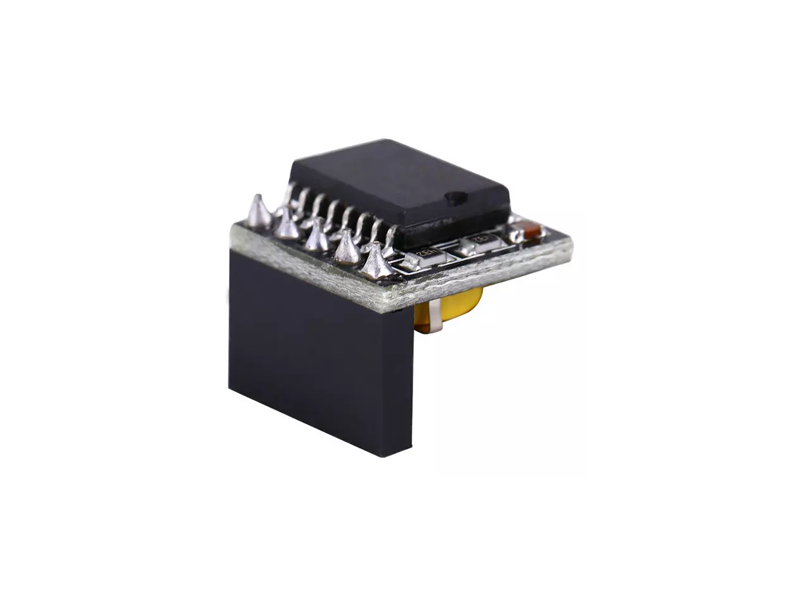

DS3231 Real Time Clock Module for Raspberry Pi
DS3231 Real Time Clock Module for Raspberry Pi
DS3231 Real Time Clock Module for Raspberry Pi
DS3231 Real Time Clock Module for Raspberry Pi
Raspberry Pi DS3231 is high precision clock module. It can also be used on Arduino motherboard. The module itself can be adapted to 3.3 V and 5 V system and no level conversion needed, which is super convenient.
Specifications
Accuracy
± 5ppm (± 0.432 sec/day)
Compatible
Arduino
Raspberry Pi
Other Development Boards
Frequency
1Hz and 32.768kHz
Length x Width x Height
14mm x 13mm x 13mm
Operating Voltage
2.3V ~ 5.5V
Special Features
-Two calendar clock. Reset output and input.
-Low power consumption.
-Provide continuous timing battery backup.
-The device is compatible with DS3231 encapsulation and function.
-Complete the clock calendar function including the second, minute, time, week, date, month, and year, and provide the valid until 2100 leap year.
Temperature Range
-40°C ~ +85°C
