Current Sensor ACS712 30A

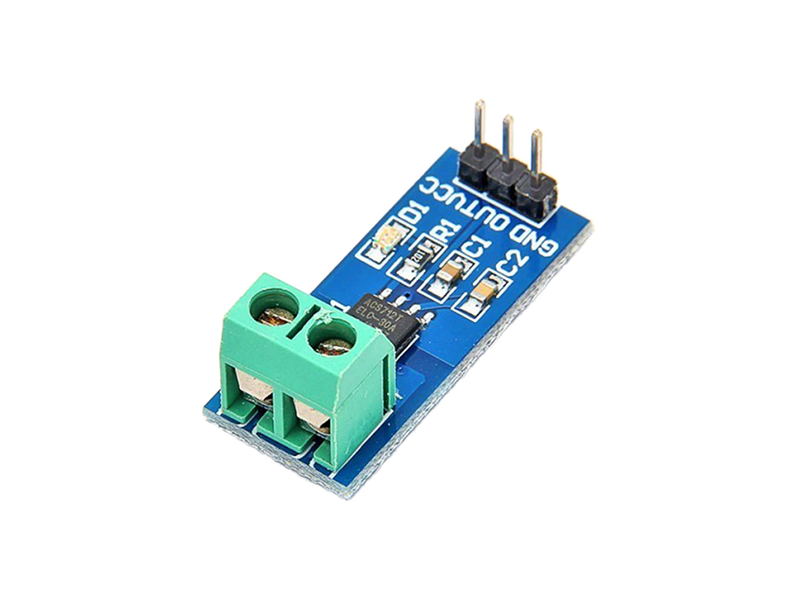

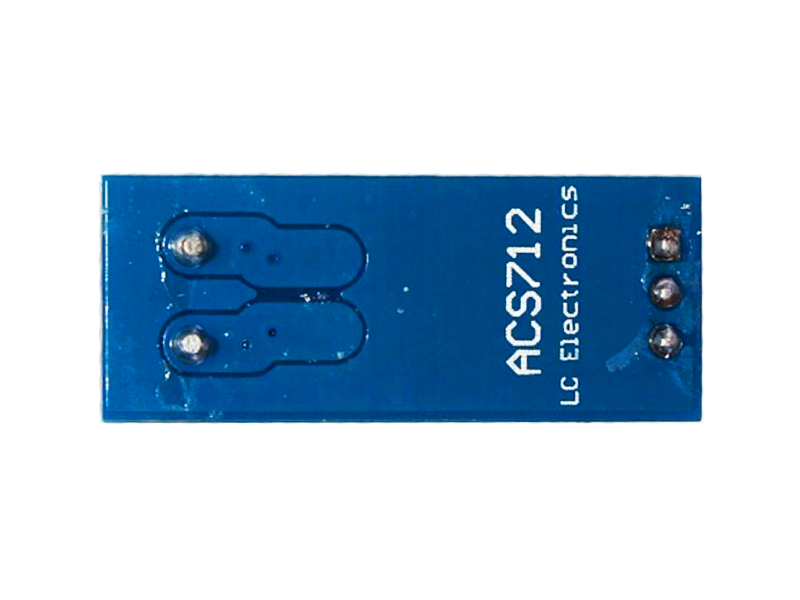

This is a breakout board for the fully integrated Hall Effect based linear ACS712 current sensor. The sensor gives precise current measurement for both AC and DC signals. Thick copper conductor and signal traces allows for survival of the device up to 5 times over-current conditions. The ACS712 outputs an analog voltage output signal that varies linearly with sensed current.
