Humidity Sensor Module HR202

Humidity Sensor Module HR202 - Image 1
Humidity Sensor Module HR202 - Image 2
Humidity Sensor Module HR202 - Image 3

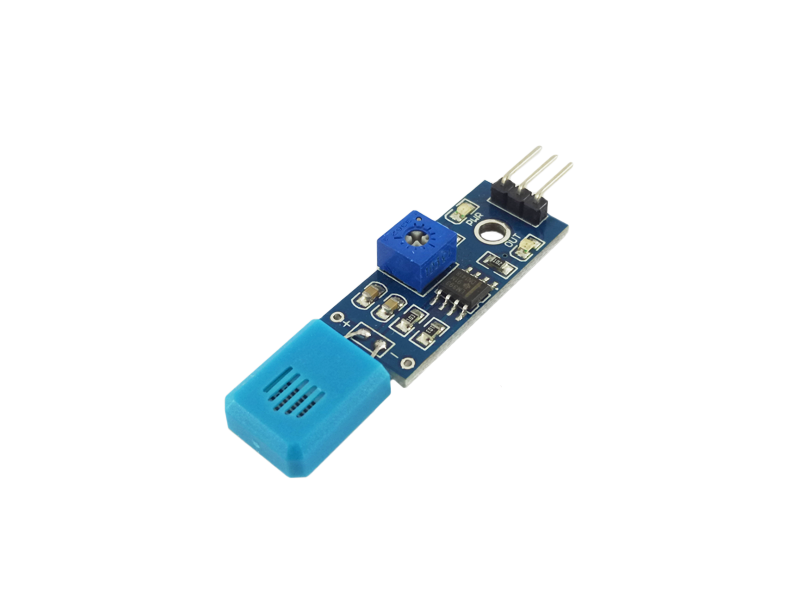

Humidity Sensor Module HR202

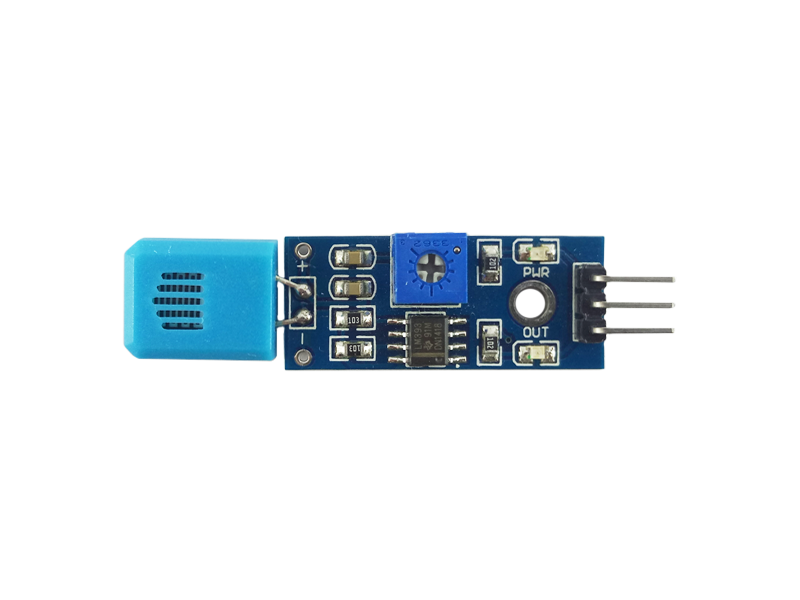

Humidity Sensor Module HR202 Top

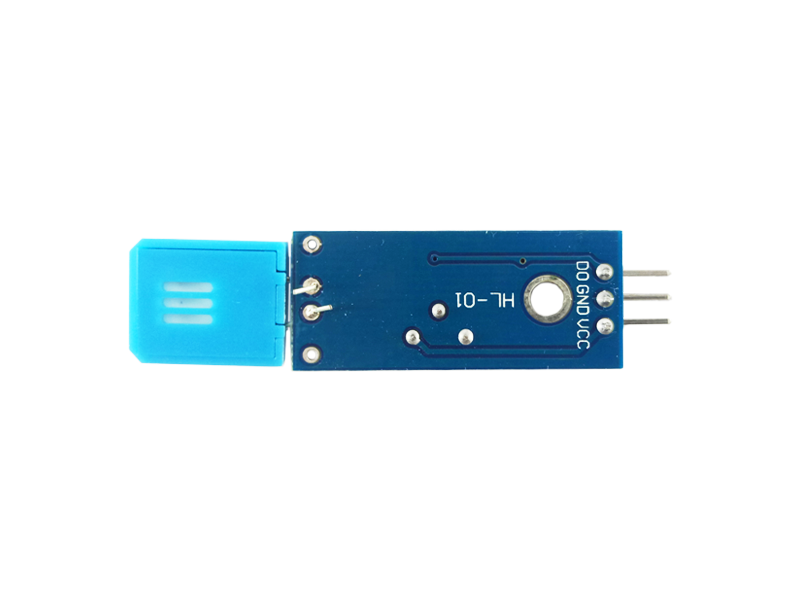

Humidity Sensor Module HR202 Bottom
LKR 300.00
Out of Stock

This module is based on HR202 resistive humidity sensor, which exposes excellent linearity, has a wide measurement range and a low power consumption. The module features both a power output indicator LED and a digital output indicator. This module is ideal for custom humidity sensing applications, and can be used in fields like meteorology, storage facility humidity control, textile industry and other applications which need ambient humidity monitoring.

Specifications

Humidity Range
20 ~ 95%RH (+-5%RH)
I/O Pins
Digital Output
Length x Width x Height
54mm x 14mm x 8mm
Operating Voltage
3.3V ~ 5V
Response Time
<10s
Temperature Range
0C ~ 60C
