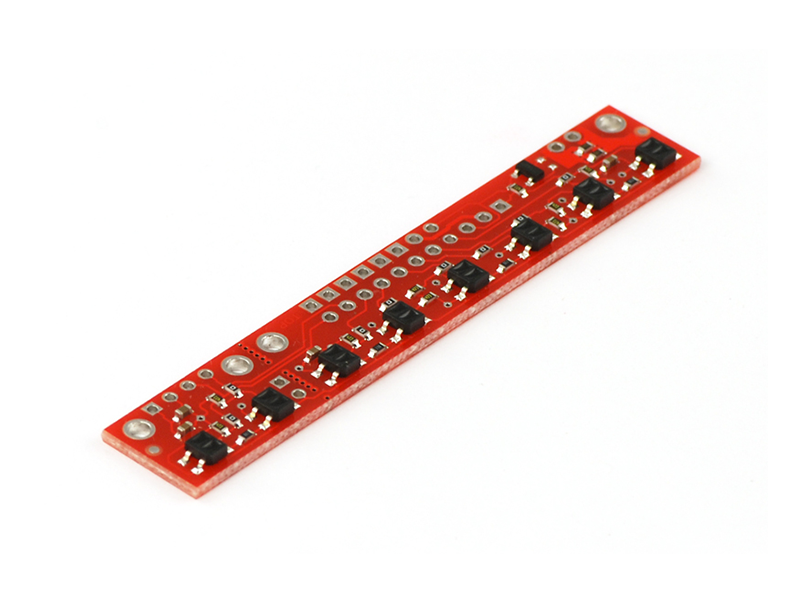

Pololu QTR-8RC Reflectance Sensor Array
Pololu QTR-8RC Reflectance Sensor Array Top
Pololu QTR-8RC Reflectance Sensor Array Top
This sensor module has 8 IR LED/phototransistor pairs mounted on a 0.375" pitch, making it a great detector for a line-following robot. Pairs of LEDs are arranged in series to halve current consumption, and a MOSFET allows the LEDs to be turned off for additional sensing or power-savings options. Each sensor provides a separate digital I/O-measurable output.
Please note this item is Local product. not original. (Design can be different)
Specifications
Current
100 mA
Distance Range
Optimal sensing distance - 3 mm
Maximum recommended sensing distance - 9.5 mm
I/O Pins
8 digital I/O-compatible signals that can be read as a timed high pulse
Length x Width x Height
75mm x 13mm x 3.2mm
Operating Voltage
3.3V ~ 5.0 V
Response Time
10 μs
Special Features
Turn on IR LEDs (optional)
Turn off IR LEDs (optional)
Weight
3.09
g
