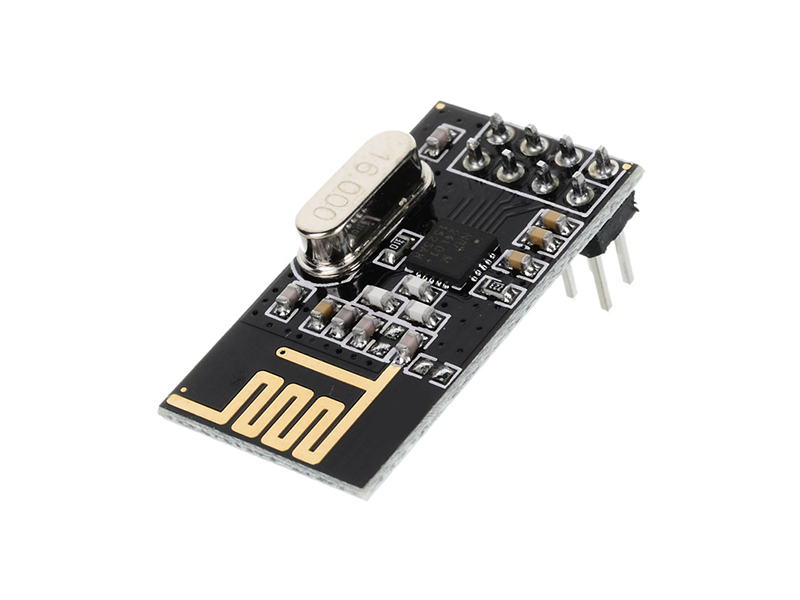

RF Transceiver nRF24L01+ Module

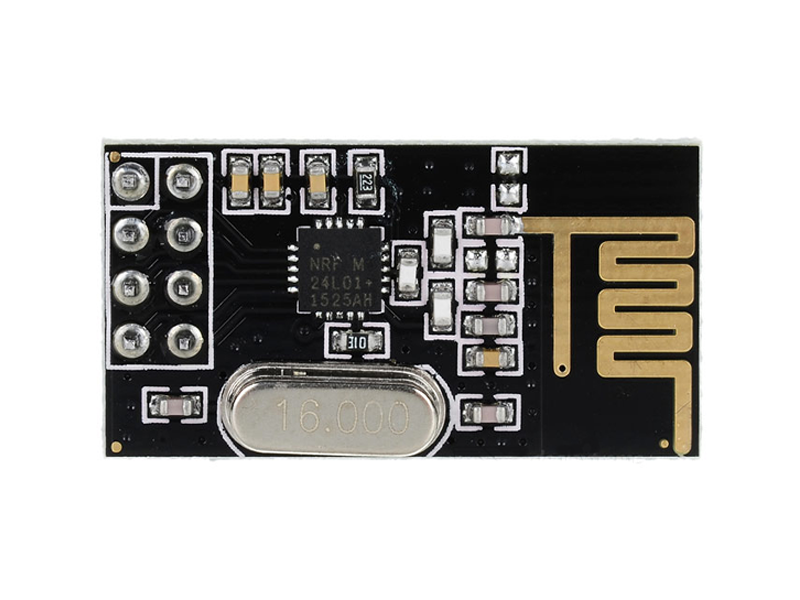

RF Transceiver nRF24L01+ Module Top

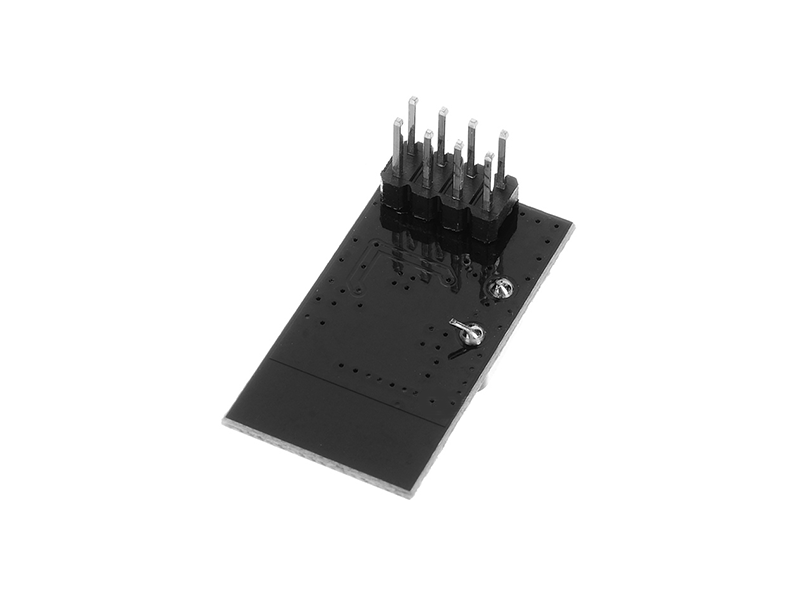

RF Transceiver nRF24L01+ Module Bottom
2.4GHz RF Transceiver nRF24L01+ Module - Thumb 1
2.4GHz RF Transceiver nRF24L01+ Module - Thumb 2
2.4GHz RF Transceiver nRF24L01+ Module - Thumb 3
LKR 320.00
Out of Stock
View Product Details

This module based on Nordic nRF24L01, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.

Specifications

Current
Supply current in transmit mode: 115mA Supply current in receiving mode: 45mA Supply current in power down: 4.2uA
Length x Width
15mm x 29mm
Operating Voltage
1.9V ~ 3.6V
Power
Maximum output power: +20dBm PA power gain: 20dB W
Sensitivity
Receiving sensitivity 2Mbps: -92dBm Receiving sensitivity 1Mbps: -95dBm Receiving sensitivity 250kbps: -104dBm
Transmission Distance
100m in open area
