Heart Rate Monitor AD8232 ( EMG / ECG)

Heart Rate Monitor AD8232 ( EMG / ECG) - Image 1
Heart Rate Monitor AD8232 ( EMG / ECG) - Image 2
Heart Rate Monitor AD8232 ( EMG / ECG) - Image 3
Heart Rate Monitor AD8232

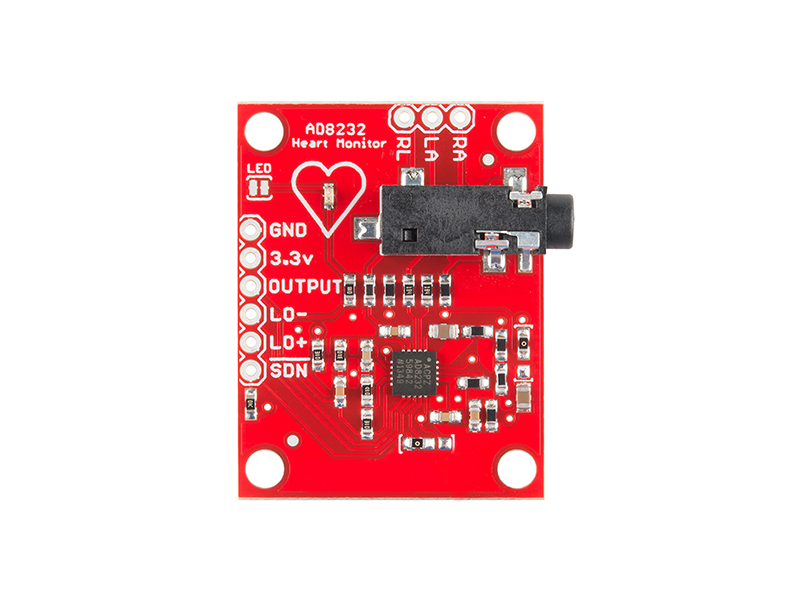

Heart Rate Monitor AD8232 Module Top

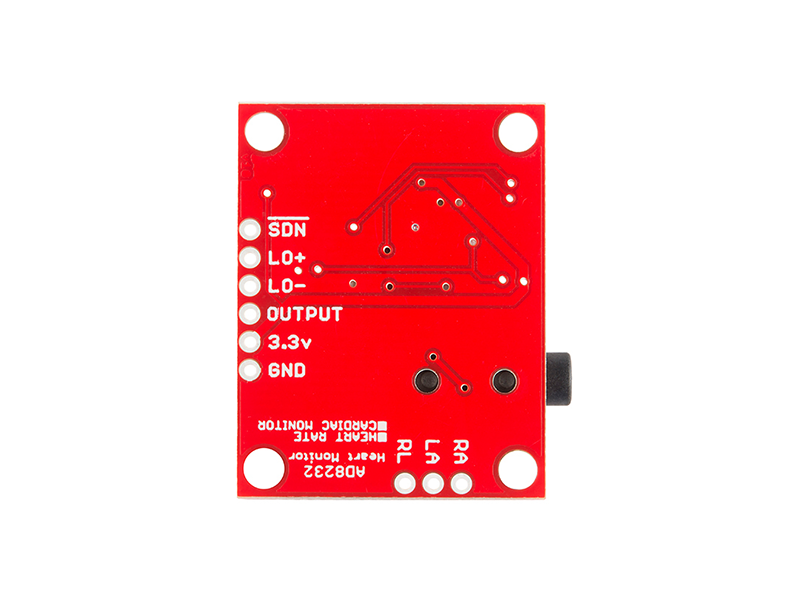

Heart Rate Monitor AD8232 Module Bottom
LKR 1,750.00
LKR 2,000.00
12% OFF

The AD8232 three lead heart rate monitor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily.

Specifications

I/O Pins
Analog Output Pin
Operating Voltage
3.3 V
Package

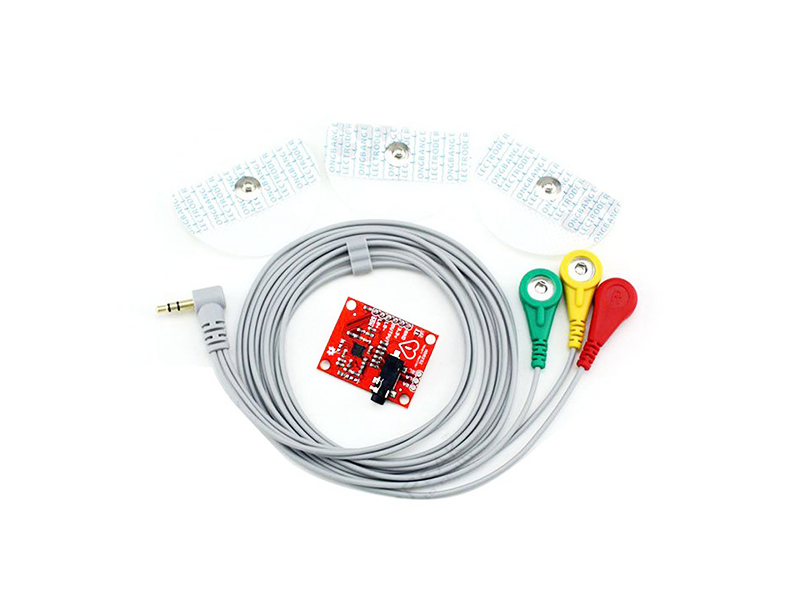

Heart Rate Monitor AD8232 Module 1x 3-lead accessory (for EMG / ECG) 3 Pre-gelled electrodes
Special Features
Leads-Off Detection Shutdown Pin LED Indicator 3.5mm Jack for Biomedical Pad Connection
