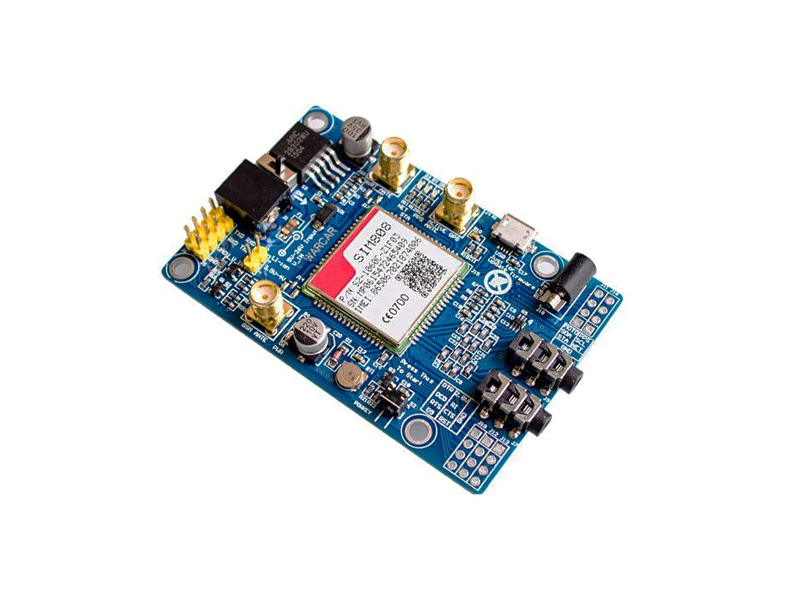

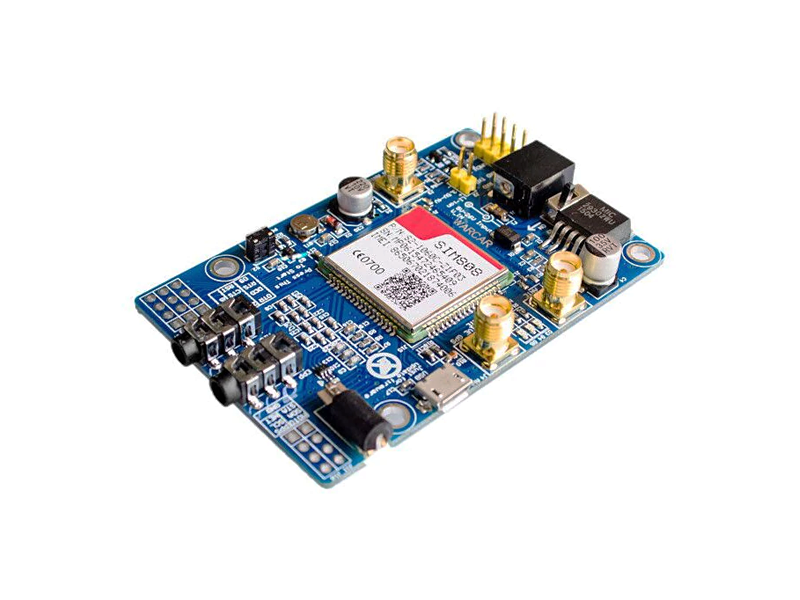

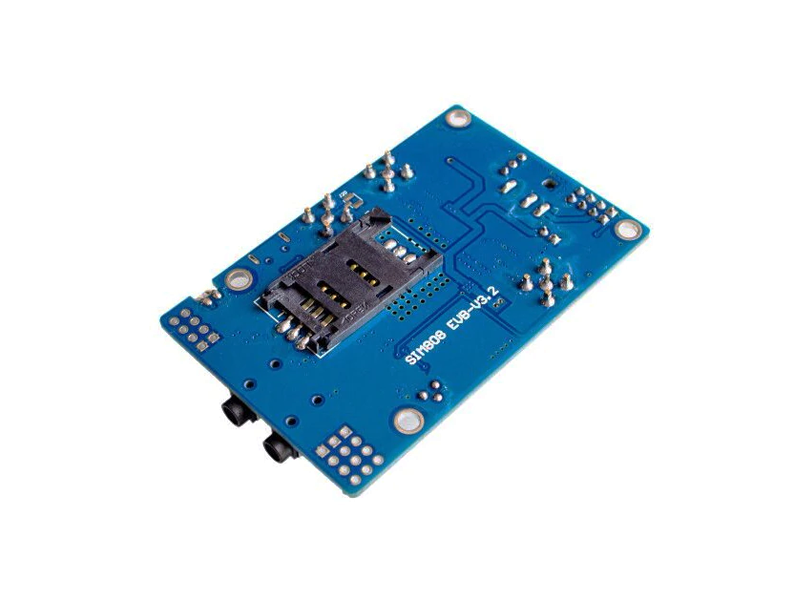

SIM808 GSM/GPRS/GPS Module With Antennas - Image 1
SIM808 GSM/GPRS/GPS Module With Antennas - Image 2
SIM808 GSM/GPRS/GPS Module With Antennas - Image 3
SIM808 GSM/GPRS/GPS Module With Antennas - Image 4
SIM808 GSM/GPRS/GPS Module With Antennas
SIM808 GSM/GPRS/GPS Module With Antennas
SIM808 GSM/GPRS/GPS Module With Antennas
SIM808 GSM/GPRS/GPS Module With Antennas
SIM808 GSM/GPRS/GPS Module With Antennas - Thumb 1
SIM808 GSM/GPRS/GPS Module With Antennas - Thumb 2
SIM808 GSM/GPRS/GPS Module With Antennas - Thumb 3
SIM808 GSM/GPRS/GPS Module With Antennas - Thumb 4
LKR 4,500.00
Out of Stock
View Product Details

SIM808 Module GSM GPRS GPS Development Board IPX SMA with GPS Antenna for Raspberry Pi Support 2G 3G 4G SIM Card.

Switch: It is used to open / close the input power supply for the module.

There is a GSM antenna interface, a GPS antenna interface onboard and a BT antenna interface.

Specifications

Communication
GPRS multi-slot class 12/10 GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @ 850/900MHz) Class 1 (1 W @ 1800/1900MHz) Bluetooth: compliant with 3.0+EDR FM: 76~109MHz worldwide bands with 50KHz tuning step Receiver type 22 tracking /66 acquisition -channel GPS L1 C/A code GPRS class 12: max. 85.6 kbps (downlink/uplink)
Frequency
850/900/1800/1900MHz
Input Voltage
DC Socket - 5V ~ 26V Li-ion Battery - 3.5 - 4.2V.
Operating Voltage
5V
Operation Mode
1.25V 3.3V 5V
Package
1 x SIM808 GSM/GPRS/GPS Module With Antennas 1 x GPS Antenna 1 x GSM/GPRS Antenna
Sensitivity
Tracking: -165 dBm Cold starts : -147 dBm
