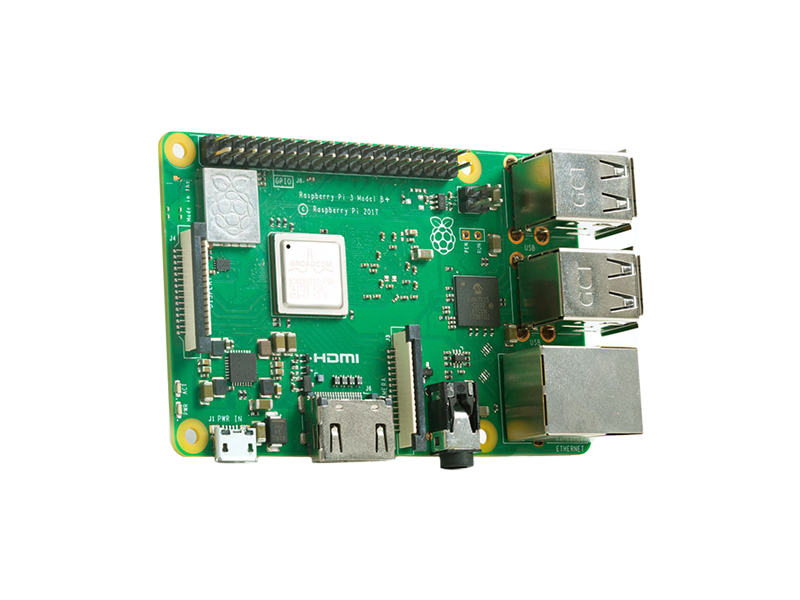

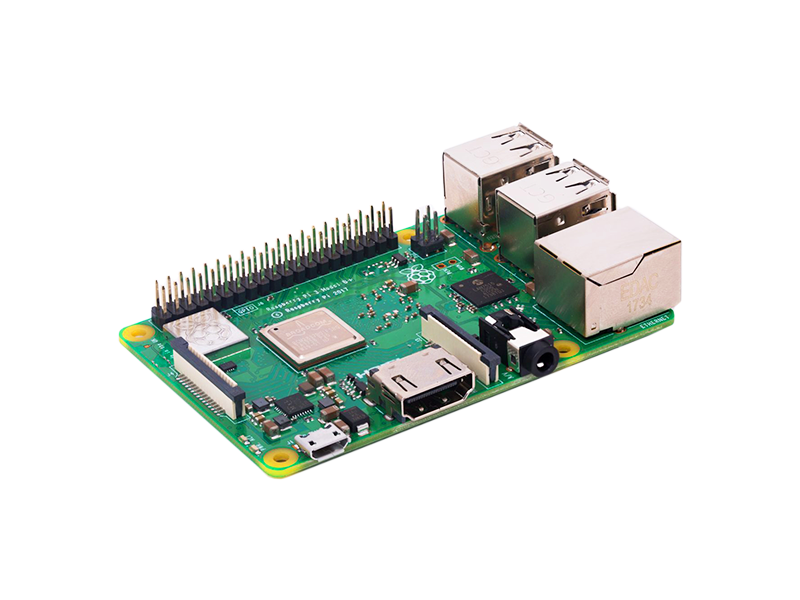

Raspberry Pi 3 Model B Plus RS

Raspberry Pi 3 Model B Plus RS - Image 1
Raspberry Pi 3 Model B Plus RS - Image 2
Raspberry Pi 3 Model B Plus RS
Raspberry Pi 3 Model B Plus RS
LKR 9,200.00

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting an updated 64-bit quad core processor running at 1.4GHz with built-in metal heatsink, dual-band 2.4GHz and 5GHz wireless LAN, faster (300 mbps) Ethernet, and PoE capability via a separate PoE HAT.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B. Adafruit made/brand cases will still fit but some other cases may not, especially ones that depend on component location or have a built in a heatsink.

The dual-band wireless LAN comes with modular compliance certification, that's the metal tin in the corner of the Pi, with the logo stamped on it. This allows the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.


Specifications

Communication
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac Wireless LAN Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
CPU
Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
Current
2.4A (minimum)
I/O Pins
Extended 40-pin GPIO header
Interfaces
Display interface (DSI) Camera interface (CSI)
Memory
1GB LPDDR2 SDRAM
Operating Voltage
5V
Output
Full-size HDMI 4-pole stereo output and composite video port
Storage
No internal storage, Card slot - up to 32 GB
USB
4 USB 2.0 ports
Video
Full HD HDMI Composite Video Port
