Arduino Uno Rev3 Original

Arduino Uno Rev3 Original - Image 1
Arduino Uno Rev3 Original - Image 2
Arduino Uno Rev3 Original - Image 3
Arduino Uno Rev3 Original - Image 4

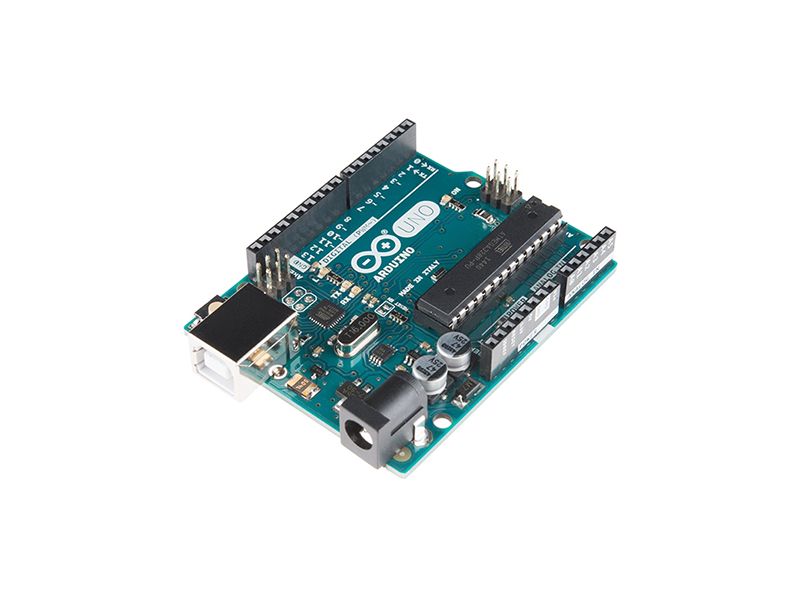

Arduino Uno Rev3

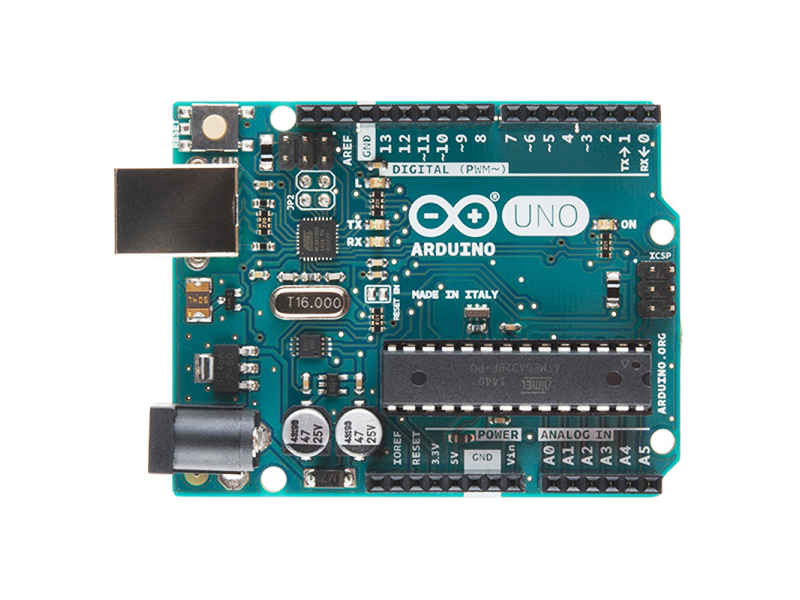

Arduino Uno Rev3 Top
Arduino Uno Rev3 Bottom

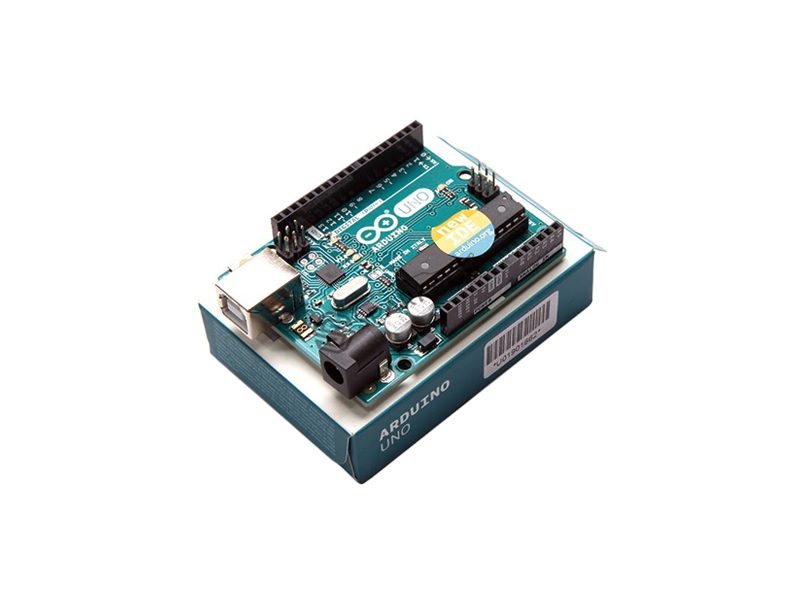

Arduino Uno Rev3 Package
LKR 3,750.00
Out of Stock

Arduino/Genuino Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worring too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

Specifications

Clock Speed
16 MHz
DC Current for 3.3V Pin
50 mA
DC Current per I/O Pin
20 mA
EEPROM
1 KB
Flash Memory
32 KB
I/O Pins
Digital - 14 (of which 6 provide PWM output) Analog - 6
Input Voltage
Recommended 7-12V Limit 6-20 V
Length x Width
68.6 x 53.4 mm
Microcontroller
ATmega328P
Operating Voltage
5 V
Package
1 x Arduino Uno Compatible R3 Board
SRAM
2 KB
Weight
25 g
