OLED White/Blue Screen Display Module (4 PIN)

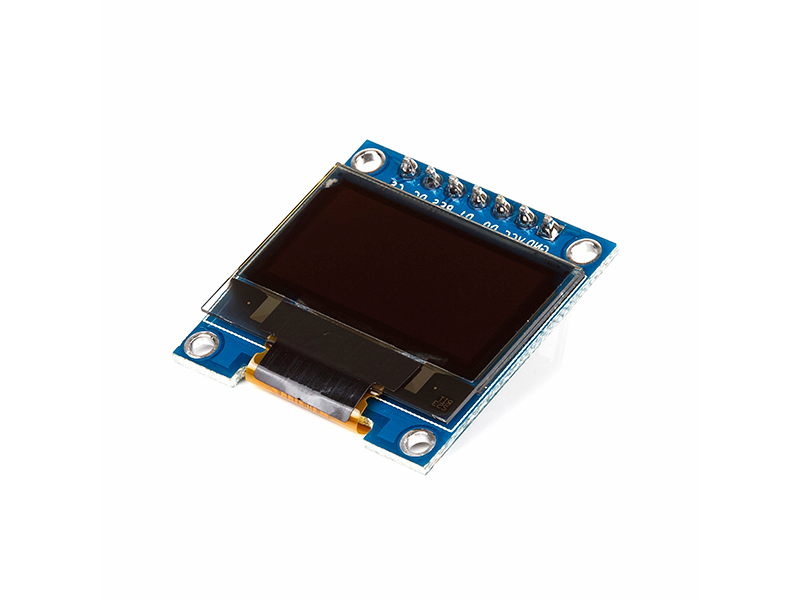

OLED White/Blue Screen Display Module (4 PIN) - Image 1
OLED White/Blue Screen Display Module (4 PIN) - Image 2
OLED White/Blue Screen Display Module (4 PIN) - Image 3
OLED Blue Screen Display Board Module

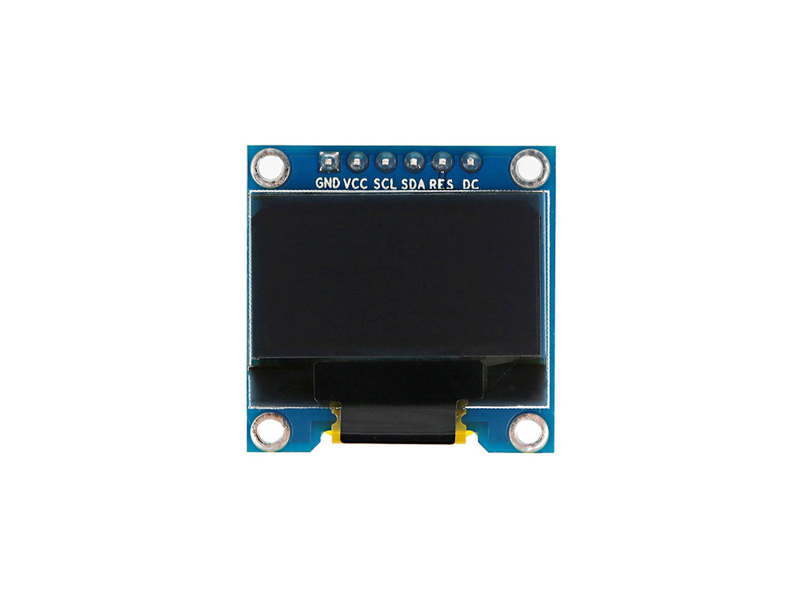

OLED Blue Screen Display Board Module Top

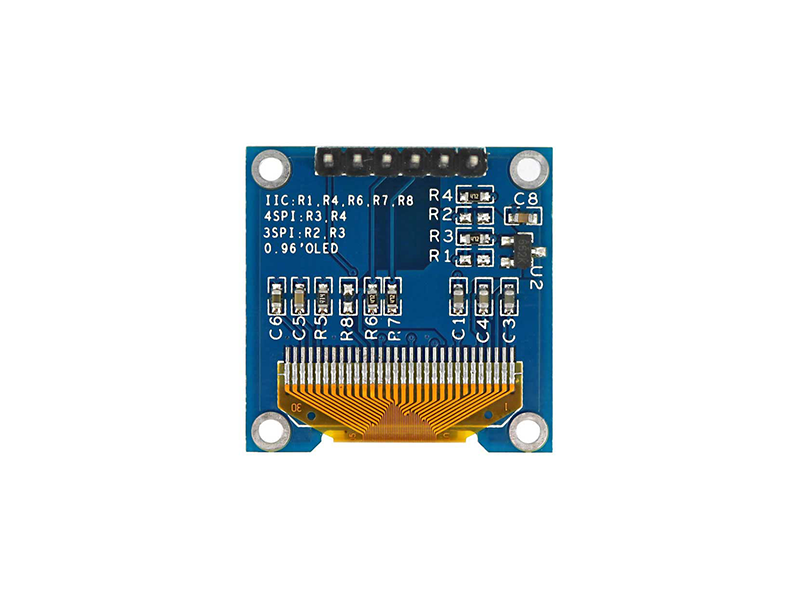

OLED Blue Screen Display Board Module Bottom
OLED White/Blue Screen Display Module (4 PIN) - Thumb 1
OLED White/Blue Screen Display Module (4 PIN) - Thumb 2
OLED White/Blue Screen Display Module (4 PIN) - Thumb 3
LKR 750.00
View Product Details

This is a monochrome OLED 128 x 64 dot matrix display. With respect to the LCD display, OLED screens become more competitive, it has many advantages such as high brightness, self-luminous, high contrast, wide viewing angle, wide temperature range and low power consumption.

Specifications

Colors
Blue White
Current
15mA (Max)
Display
SSD1306
Interfaces
4SPI(default setting is 4SPI) 3SPI I2C
Operating Voltage
3V ~ 5.2V
Resolution
128 x 64
Screen Size
0.96 inch
