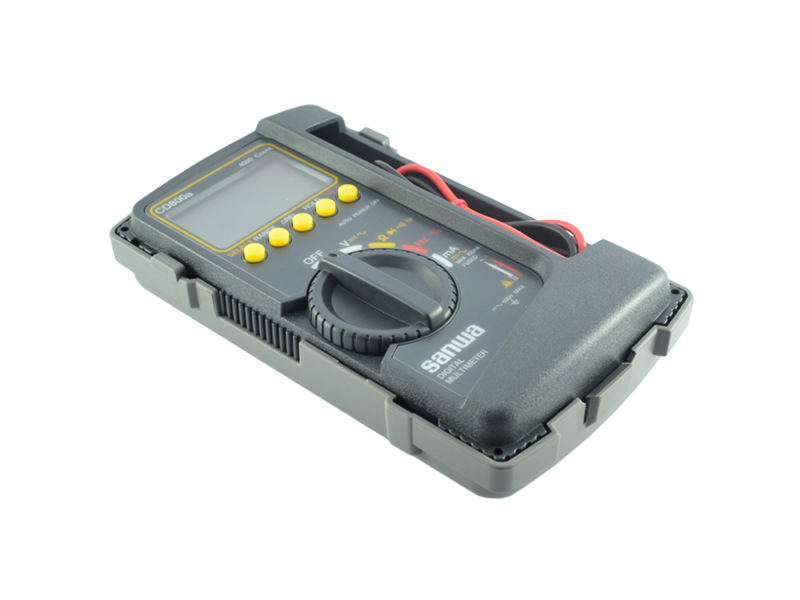

Sanwa CD800a Digital Multimeter

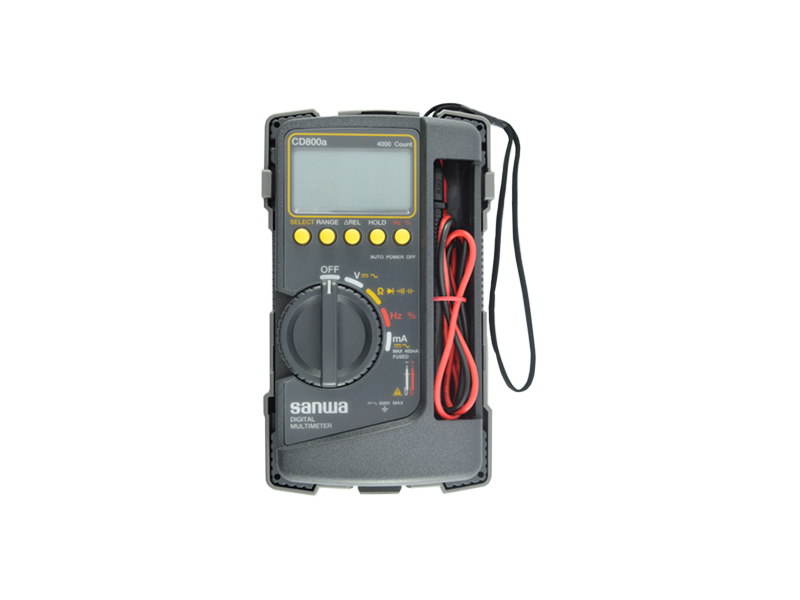

Sanwa CD800a Digital Multimeter Front
Sanwa CD800a Digital Multimeter Side

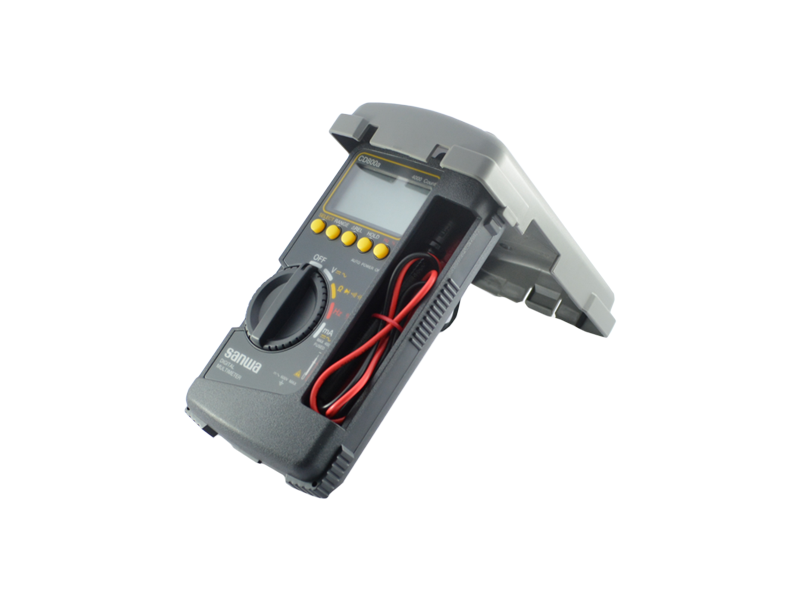

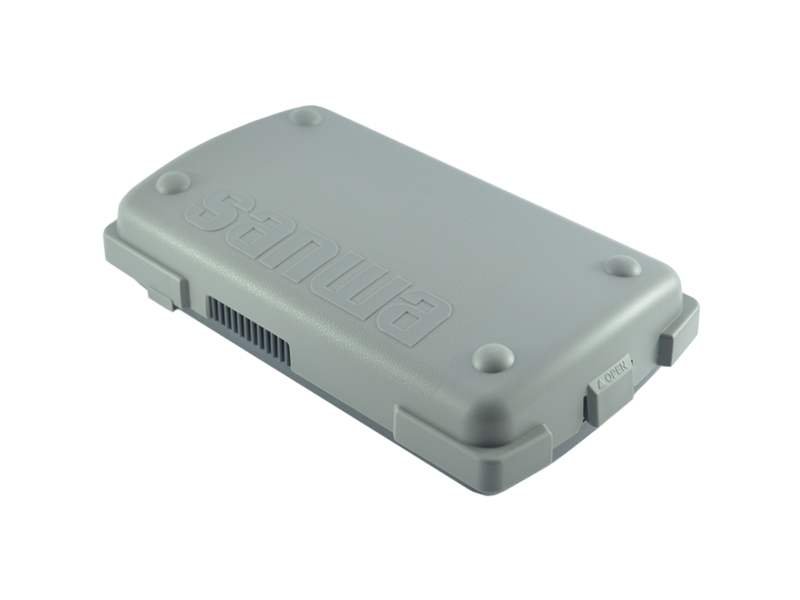

Sanwa CD800a Digital Multimeter with cover

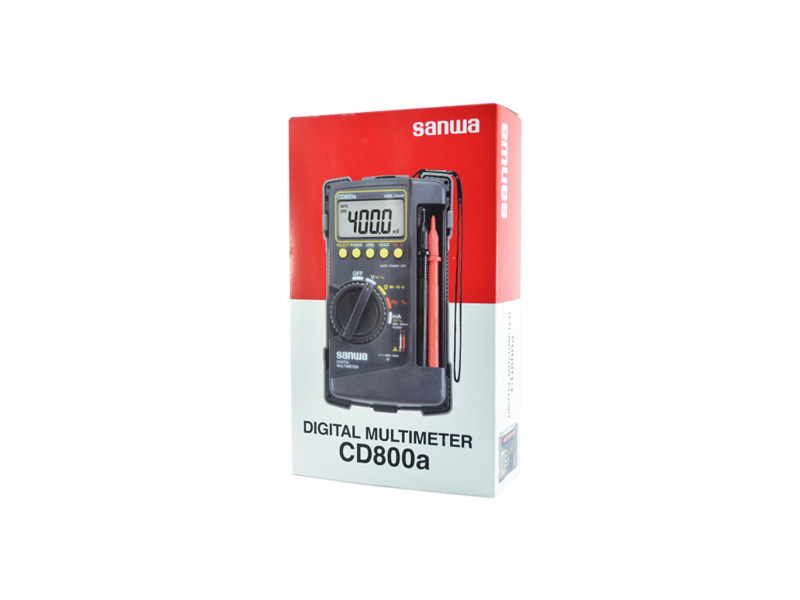

Sanwa CD800a Digital Multimeter Package
This is genuine sanwa CD800a digital mulimeter by Japan. This is a basic digital multimeter that comes with well accurate and stable auto ranging digital multimeter. Using this multmeter you can measure DC Voltage, AC Voltage, DC Current, Resistance, Frequency and Capacitance. Probes are coming with safety plastic tips. it will helps you not to connect two probe when you are measuring a components.
Specifications
AC Voltage
4.000V ±(1.6 %rdg+9dgt) Approx. 11MΩ
40.00V ±(1.6 %rdg+5dgt) Approx. 10MΩ
400.0V " Approx. 10MΩ
600V " Approx. 10MΩ
Capacitance
50.00nF ±(5.0%rdg+10dgt)
500.0nF "
5.000uF "
50.00uF "
100.0uF "
Current
DC Current
40.00mA ±(2.2%rdg+3dgt)
400.0mA "
AC Current
40.00mA ±(2.8%rdg+3dgt)
400.0mA "
A
DC Voltage
400.mV ±(0.7 %rdg+3dgt) >=100MΩ
4.000V ±(1.1 %rdg+3dgt) Approx. 11MΩ
40.00V " Approx. 10MΩ
400.0V "
600V "
Diode
Open Voltage : Approx DC 1.5V
Frequency
5.000Hz ±(0.5%rdg+3dgt)
50.00Hz "
500.0Hz "
5.000kHz "
50.00kHz "
100.0kHz "
Resistance
400.0Ω ±(1.5 %rdg+5dgt)
4.000kΩ ±(1.2 %rdg+5dgt)
40.00kΩ "
400.0kΩ "
4.000MΩ ±(2.0 %rdg+3dgt)
40.00MΩ ±(4.0 %rdg+3dgt)
Special Features
Checking Continuity Buzzer 10Ω~120Ω Open Voltage : Approx DC 0.4V
