DCduino Uno

DCduino Uno - Image 1
DCduino Uno - Image 2
DCduino Uno - Image 3

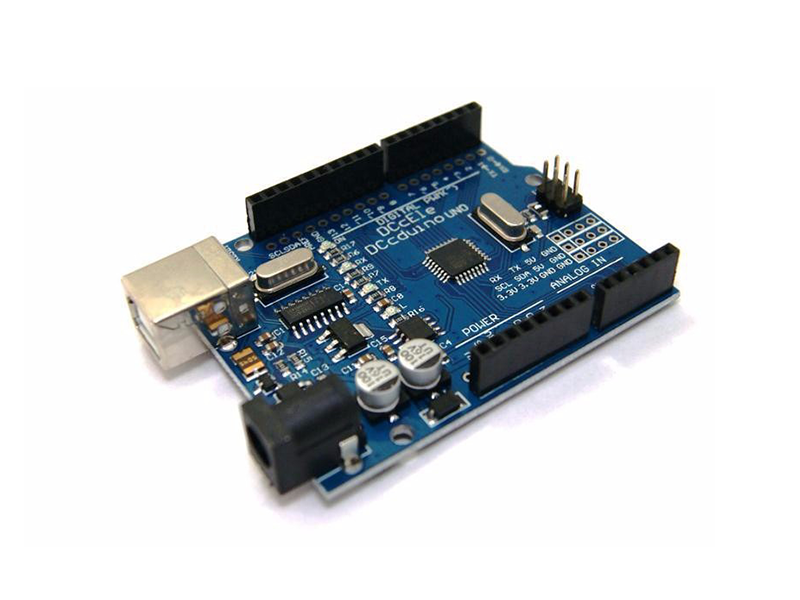

DCduino Uno

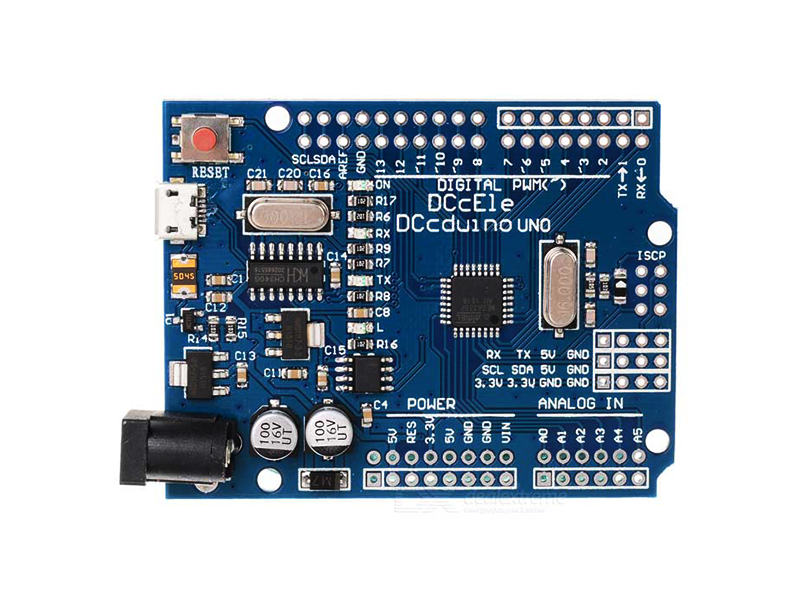

DCduino Uno top

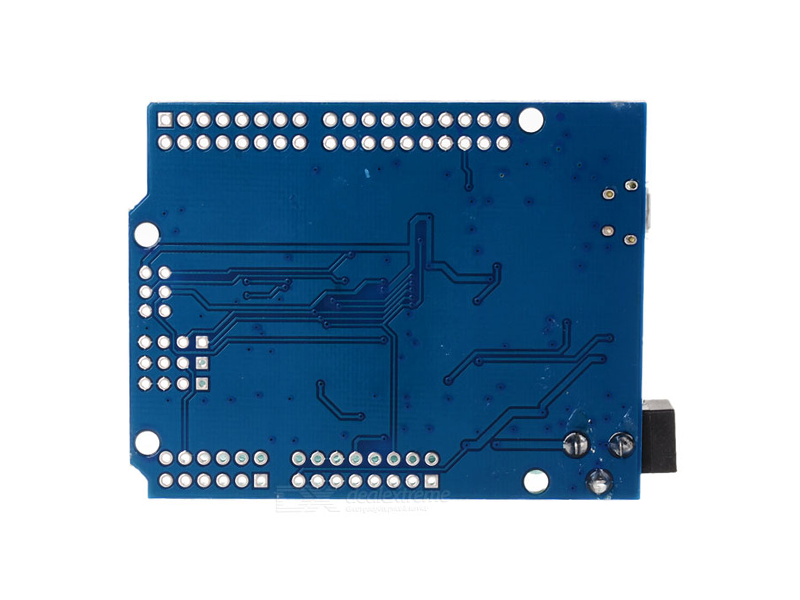

DCduino Uno bottom

The DCcduino Uno is a micro-controller board based on the ATmega328(SMD) and compatible with the Arduino Uno R3. It has 14 digital I/O pins, 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. The DCcduino compatible with the same Arduino shields. Additionally, there are several extra sets of header connectors and some of which provide extra signals that are not easily accessible on the original board.

Specifications

Clock Speed
16 MHz
DC Current for 3.3V Pin
50 mA
DC Current per I/O Pin
40 mA
EEPROM
1 KB
Flash Memory
32 KB
I/O Pins
Digital I/O Pins - 14 (of which 6 provide PWM output) Analog Input Pins - 6
Input Voltage
Recommended 7-12V Limits 6-20V V
Microcontroller
ATmega328P-PU
Operating Voltage
5 V
Package
DCduino Uno Board Data Cable
SRAM
2 KB
